Industrial Electrical Enclosure EID-1414 SC Series: EID-1414SC Series Enclosures - NEMA 12, 13
 Lift Off, Screw Cover (SC)







                           EID-1414SC Series, NEMA 12, 13 Clamped, Lift Off Screw Cover Enclosure.



Application:

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.

  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards:

  • UL 508 Type 12 and 13

  • CSA Type 12 and 13

  • Complies with

    • NEMA Type 12 and 13

    • JIC EGP-1-1967 unless marked¹

    • IEC 60529, IP54

Construction:

  • Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.
    Welded brackets provide for enclosure mounting.

  • Cover is secured with captive, plated steel screws, threaded into sealed wells.

  • Oil resistant gaskets are permanently secured.

  • Models larger than 4" x 4" include a removable 14 gauge inner panel.

  • Internal threaded weld studs are provided for mounting inner panels.

  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.

Finish:

  • Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.

  • Removable inner panel is finished in white powder coating.

Accessories:

  • Additional inner panels

  • Breather kits

  • Filter fans

  • Heaters

  • Louvered ventilating plates

  • Terminal kit assemblies

  • Thermostats

  • Swing Panel

  • Window kits

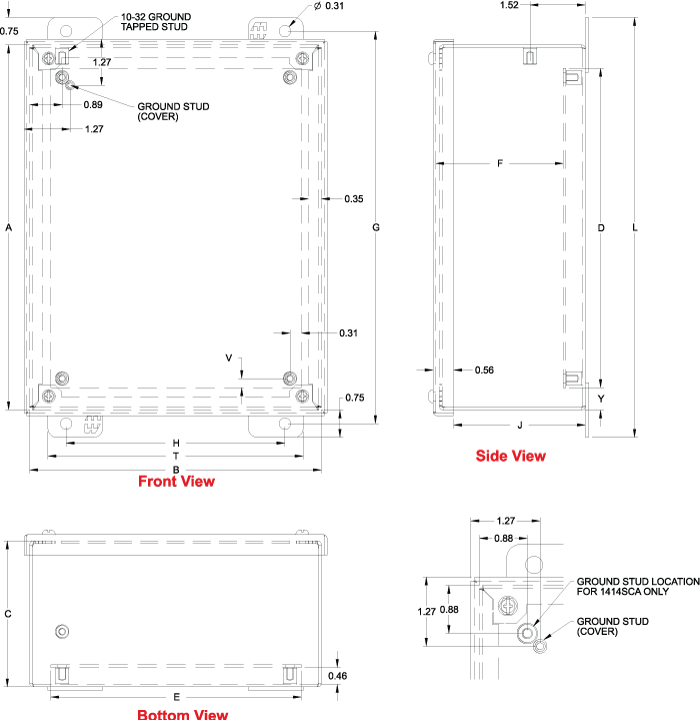

Part No.



Panel Size



Centers



Cover
Dimensions



Ship Wt.
(lbs)

A

B

C

D

E

F

G

H

J

L

T

V

Y

EID-1414SCA¹

4.0

4.0

3.0

—

—

—

4.75

2.00

2.64

5.50

3.00

4.31

4.31

—

—

2

EID-1414SCC¹

6.0

4.0

3.0

4.87

2.87

2.51

6.75

2.00

2.64

7.50

3.00

6.31

4.31

0.31

0.56

3

EID-1414SCG

8.0

6.0

3.5

6.75

4.87

3.01

8.75

4.00

3.14

9.50

5.00

8.31

6.31

0.25

0.63

6

EID-1414SCE

6.0

6.0

4.0

4.87

4.87

3.51

6.75

4.00

3.64

7.50

5.00

6.31

6.31

0.31

0.56

5

EID-1414SCI

10.0

8.0

4.0

8.75

6.87

3.51

10.75

6.00

3.64

11.50

7.00

10.31

8.31

0.25

0.63

10

EID-1414SCK

12.0

10.0

5.0

10.75

8.87

4.51

12.75

8.00

4.64

13.50

9.00

12.31

10.31

0.25

0.63

14

EID-1414SCM6

14.0

12.0

6.0

12.75

10.87

5.51

14.75

10.00

5.64

15.50

11.00

14.31

12.31

0.25

0.63

19

EID-1414SCO6

16.0

14.0

6.0

14.75

12.87

5.51

16.75

12.00

5.64

17.50

13.00

16.31

14.31

0.25

0.63

24

EID-1414SCM8

14.0

12.0

8.0

12.75

10.87

7.51

14.75

10.00

7.64

15.50

11.00

14.31

12.31

0.25

0.63

22

EID-1414SCO10

16.0

14.0

10.0

14.75

12.87

9.51

16.75

12.00

9.64

17.50

13.00

16.31

14.31

0.25

0.63

29

¹ Does not meet JIC Requirements



  •
