Electrical Enclosure EID-1414 N4 PH Series:
EID-1414N4PH Series Enclosures - NEMA 4, 12, 13 Continuous
Hinge, Clamped Cover
EID-1414N4PH Series,
NEMA 4, 12, 13
Continuous Hinge, Clamped Cover
Enclosure.
Application:
-
Designed for use as instrument
enclosures, electric, hydraulic or pneumatic control
housings, electrical junction boxes or terminal wiring
enclosures.
-
Provides protection where
equipment may be hosed down or otherwise be very wet, or in
outdoor applications for full weather protection.
Standards:
-
UL 508 Type 3R, 4, 12 and 13
-
CSA Type 3R, 4, 12 and 13
-
Complies with
-
NEMA Type 3R, 4, 12 and 13
-
JIC EGP-1-1967 unless
marked¹
-
IEC 60529, IP66
Construction:
-
Body formed from 16 or 14
gauge steel. Covers are formed from 14 gauge steel.
-
Smooth, continuously welded
seams without knockouts, cutouts or holes.
-
Welded brackets provide for
enclosure mounting.
-
Continuous hinged cover is
secured with stainless steel clamps and screws.
-
Stainless steel continuous
hinge on door may be removed by pulling the stainless steel
hinge pin.
-
Seamless poured-in place
gasket.
-
All models larger than 4" x 4"
include a removable 14 gauge inner panel.
-
Internal threaded weld studs
are provided for mounting inner panels.
-
A bonding stud is provided on
the door and a grounding stud is provided in the enclosure.
Finish:
-
Cover and enclosure are phosphatized, finished in
recoatable smooth ANSI 61 gray powder coating.
-
Removable inner panel is finished in white powder coating.
Accessories:
|

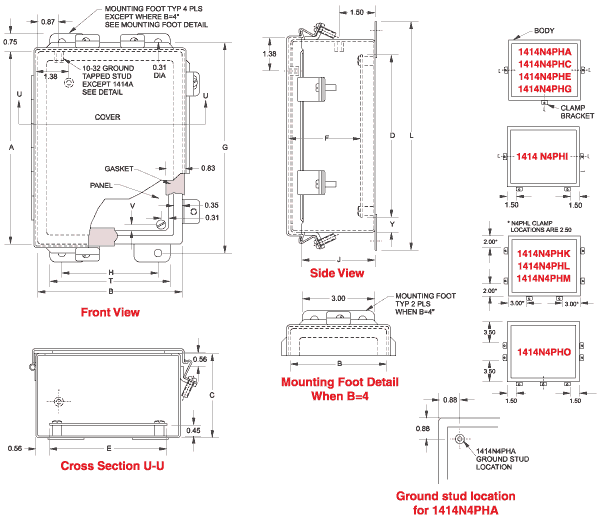

EID's Part No.
With
Panel |
EID's Part No.
Without
Panel |
|
Panel Size |
|
Centers |
|
Cover
Dimensions |
|
Ship Wt. lbs |
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
T |
V |
Y |
with Panel |
w/o Panel |
|
— |
EID-1414N4PHA¹ |
4.0 |
4.0 |
3 |
— |
— |
— |
4.75 |
2.00 |
2.60 |
5.50 |
4.31 |
4.31 |
3.00 |
— |
— |
— |
1 |
|
EID-1414N4PHC¹ |
EID-1414N4PHCLP¹ |
6.0 |
4.0 |
3 |
4.88 |
2.88 |
2.5 |
6.75 |
2.00 |
2.60 |
7.50 |
6.31 |
4.31 |
3.00 |
0.31 |
0.56 |
3 |
2 |
|
EID-1414N4PHG |
EID-1414N4PHGLP |
8.0 |
6.0 |
3.5 |
6.75 |
4.88 |
3 |
8.75 |
4.00 |
3.10 |
9.50 |
8.31 |
6.31 |
5.00 |
0.25 |
0.63 |
6 |
5 |
|
EID-1414N4PHE |
EID-1414N4PHELP |
6.0 |
6.0 |
4 |
4.88 |
4.88 |
3.5 |
6.75 |
4.00 |
3.60 |
7.50 |
6.31 |
6.31 |
5.00 |
0.31 |
0.56 |
5 |
4 |
|
EID-1414N4PHI |
EID-1414N4PHILP |
10.0 |
8.0 |
4 |
8.75 |
6.88 |
3.5 |
10.75 |
6.00 |
3.60 |
11.50 |
10.31 |
8.31 |
7.00 |
0.25 |
0.63 |
10 |
9 |
|
EID-1414N4PHI6 |
EID-1414N4PHI6LP |
10.0 |
8.0 |
6 |
8.75 |
6.88 |
5.5 |
10.75 |
6.00 |
5.60 |
11.50 |
10.31 |
8.31 |
7.00 |
0.25 |
0.63 |
12 |
11 |
|
EID-1414N4PHK |
EID-1414N4PHKLP |
12.0 |
10.0 |
5 |
10.75 |
8.88 |
4.5 |
12.75 |
8.00 |
4.60 |
13.50 |
12.31 |
10.31 |
9.00 |
0.25 |
0.63 |
15 |
14 |
|
EID-1414N4PHL6 |
EID-1414N4PHL6LP |
12.0 |
12.0 |
6 |
10.75 |
10.88 |
5.5 |
12.75 |
10.00 |
5.60 |
13.50 |
12.31 |
12.31 |
11.00 |
0.25 |
0.63 |
25 |
24 |
|
EID-1414N4PHM6 |
EID-1414N4PHM6LP |
14.0 |
12.0 |
6 |
12.75 |
10.88 |
5.5 |
14.75 |
10.00 |
5.60 |
15.50 |
14.31 |
12.31 |
11.00 |
0.25 |
0.63 |
21 |
20 |
|
EID-1414N4PHO6 |
EID-1414N4PHO6LP |
16.0 |
14.0 |
6 |
14.75 |
12.88 |
5.5 |
16.75 |
12.00 |
5.60 |
17.50 |
16.31 |
14.31 |
13.00 |
0.25 |
0.63 |
26 |
24 |
|
EID-1414N4PHM8 |
EID-1414N4PHM8LP |
14.0 |
12.0 |
8 |
12.75 |
10.88 |
7.5 |
14.75 |
10.00 |
7.60 |
15.50 |
14.31 |
12.31 |
11.00 |
0.25 |
0.63 |
22 |
20 |
|
EID-1414N4PHO10 |
EID-1414N4PHO10LP |
16.0 |
14.0 |
10 |
14.75 |
12.88 |
9.5 |
16.75 |
12.00 |
9.60 |
17.50 |
16.31 |
14.31 |
13.00 |
0.25 |
0.63 |
28 |
26 |
¹ Does not meet JIC requirements
|
