Corrosion Resistant Enclosure Eclipse Series: Eclipse 304 Painted Stainless Steel  (SS) Series, Single Door with 3-Point Handles Enclosures - NEMA 4X

                             Eclipse Series Stainless Steel (S.S.) Single Door Enclosures - NEMA 4X

Application:

• Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wall-mount applications.

• Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.

• A wide range of sizes and practical accessories make this product line a complete package.

Standards:

• UL 508 Type 3R, 4, 4X, and 12

• CSA Type 3R, 4, 4X, and 12

• Complies with

  • NEMA Type 3R, 4, 4X, 12 and 13

  • IEC 60529, IP66

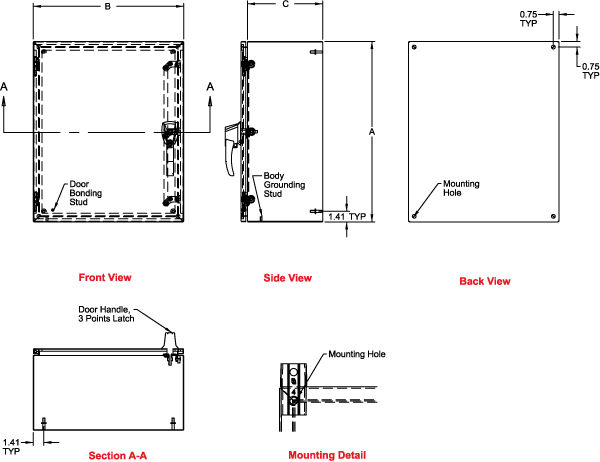

Construction:

• Formed 304 stainless steel.

• Continuously welded seams ground smooth.

• Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.

• Formed lip on enclosure to exclude flowing liquids and contaminants.

• Doors are secured with a 3 point Handle in 316 stainless with pad lockable feature.

• Doors may be easily removed for modifications and are interchangeable.

• Seamless poured-in place gasket.

• Collar studs provided for mounting inner panel.

• Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.

• Bonding stud provided on door and grounding stud installed in enclosure.

• Stainless steel hinge pins and hinges.

Finish:

• Cover and enclosure are finished in recoatable smooth RAL 9003 White powder coating inside and out.

Accessories:

• Air conditioners

• Blowers

• Breather kits

• DIN Rails

• DIN Rail Mounting Kit

• Door stop kit

• Filter fans

• Heaters

• Handles

• Inner Panel

• Quarter Turn Inserts and Keys

• Literature Pocket

• Mounting Foot Kit

• Padlock Adapter (EPA)

• Swing Frame

• Swing Panel

• Replacement Hinge Pins

• Replacement Quarter Turn Assemblies

• Thermostats

• Touch Up Paint

• UL/CSA Approved Hardware Kit

  ^•
