Corrosion Resistant Electrical Enclosure EID-1414 N4 Series: EID-1414N4 Aluminum (AL) Lift-Off Cover Series Enclosures - NEMA 4









                          EID-1414N4 Aluminum (AL) Lift-Off Cover Series Enclosures - NEMA 4

Application:

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.

  • Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a problem

Standards:

  • UL 508 Type 4 and 12

  • CSA Type 4 and 12

  • Complies with

    • NEMA Type 4, 12 and 13

    • IEC 60529, IP66

Construction:

  • Formed from 0.08" Type 5052 H-32 aluminum.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.

  • Welded brackets provide for enclosure mounting.

  • Cover is secured with easily operated aluminum clamps.

  • Seamless poured-in place gasket.

  • All models larger than 4" x 4" include a removable 14 gauge inner panel.

  • Tapped studs are provided for mounting inner panels.

  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.

Finish:

  • Cover and enclosure are natural unfinished aluminum.

  • Removable inner panel is finished in white powder coating.

Accessories:

  • Additional inner panels

  • Breather kits

  • Door Clamping Hardware

  • Heaters

  • Terminal kit assemblies

  • Thermostats

  • Window kits





Note: Number of door clamps varies to enclosure size.

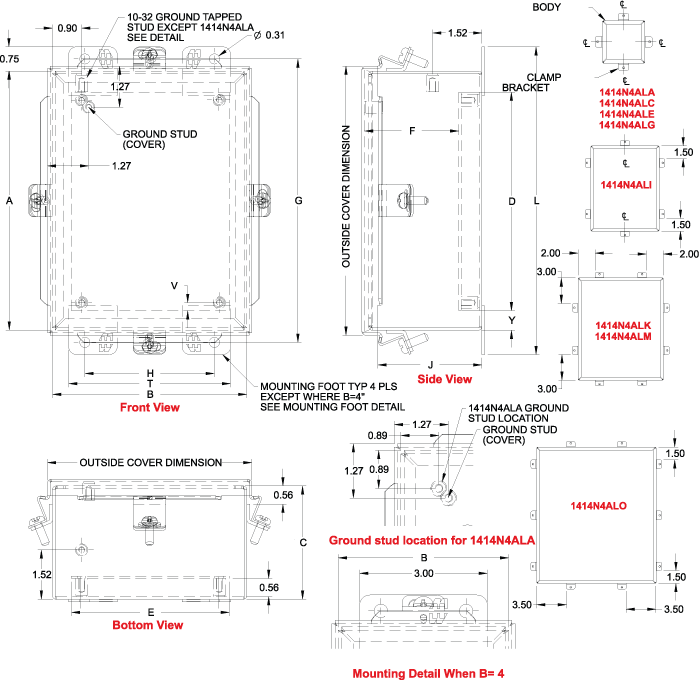

Part No.

Panel Dimensions

Centers

J

L

Cover Dimensions

T

V

Y

Ship Wt.
(lbs)

A

B

C

D

E

F

G

H

EID-1414N4ALA

4

4

3.0

-

-

-

4.75

2

2.6

5.5

4.31

4.31

3

-

-

1

EID-1414N4ALC

6

4

3.0

4.88

2.88

2.5

6.75

2

2.6

7.5

6.31

4.31

3

.31

.56

2

EID-1414N4ALE

6

6

4.0

4.88

4.88

3.5

6.75

4

3.6

7.5

6.31

6.31

5

.31

.56

3

EID-1414N4ALG

8

6

3.5

6.75

4.88

3.0

8.75

4

3.1

9.5

8.31

6.31

5

.25

.63

3

EID-1414N4ALI

10

8

4.0

8.75

6.88

3.5

10.75

6

3.6

11.5

10.31

8.31

7

.25

.63

5

EID-1414N4ALK

12

10

5.0

10.75

8.88

4.5

12.75

8

4.6

13.5

12.31

10.31

9

.25

.63

8

EID-1414N4ALM6

14

12

6.0

12.75

10.88

5.5

14.75

10

5.6

15.5

14.31

12.31

11

.25

.63

10

EID-1414N4ALO6

16

14

6.0

14.75

12.88

5.5

16.75

12

5.6

17.5

16.31

14.31

13

.25

.63

13

EID-1414N4ALM8

14

12

8.0

12.75

10.88

7.5

14.75

10

7.6

15.5

14.31

12.31

11

.25

.63

11

EID-1414N4ALO10

16

14

10.0

14.75

12.88

9.5

16.75

12

9.6

17.5

16.31

14.31

13

.25

.63

15



  •
