Commercial Electrical Enclosure C-Box Series: C-Box  Hinged Cover with Knockouts Series Enclosures - NEMA 1







                           C-Box  Hinged Cover with Knockouts Series Enclosures - NEMA 1



Application:



  • Designed for general purpose indoor commercial use as a junction, pull or switch box.

  • Hinged cover with latch provides easy access during installation and maintenance.

Standards:

  • UL-50 Type 1

  • CSA Type 1

  • Complies with

    • NEMA Type 1

    • IEC 60529, IP30

Construction:

  • Formed and spot welded from 16 or 14 gauge steel depending on size.

  • Formed steel covers close by use of slotted quarter turn latch.

  • Full swing door using butt hinges.

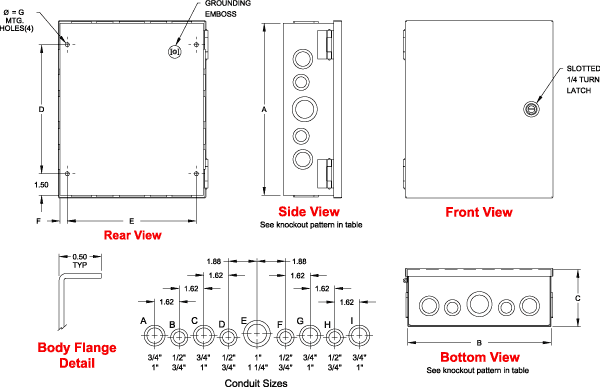

  • Easily removed knockouts on all 4 sides (see drawings for sizes and locations).

  • Through holes in back for wall mounting.

  • Grounding location embossed in body.

Finish:

  • Enclosure and cover are finished in ANSI 61 gray powder coating.

Accessories:

  • EID-N1JLK Lock Kit







Part No.
(Click for DXF)

Overall
Dimensions

Meeting
Centers



Knockout Pattern
Sides

Knockout Pattern
Top & Bottom

Ship
Wt.
lbs.

A

B

C

D

E

F

G

EID-CHKO663

6

6

4

3

5.0

0.50

0.28

B-C-D

B-C-D

3

EID-CHKO644

6

4

4

3

3.0

0.50

0.28

B-C-D

A - B

3

EID-CHKO664

6

6

4

3

5.0

0.50

0.28

B-C-D

B-C-D

3

EID-CHKO864

8

6

4

5

5.0

0.50

0.28

F-G-H-I

B-C-D

4

EID-CHKO884

8

8

4

5

7.0

0.50

0.28

F-G-H-I

F-G-H-I

5

EID-CHKO1084

10

8

4

7

7.0

0.50

0.28

F-G-H-I

F-G-H-I

6

EID-CHKO10104

10

10

4

7

9.0

0.50

0.28

F-G-H-I

C-D-E-F-G

7

EID-CHKO1284

12

8

4

9

7.0

0.50

0.28

C-D-E-F-G

F-G-H-I

8

EID-CHKO12104

12

10

4

9

9.0

0.50

0.28

C-D-E-F-G

C-D-E-F-G

8

EID-CHKO12124

12

12

4

9

11.0

0.50

0.28

C-D-E-F-G

C-D-E-F-G

9

EID-CHKO16124

16

12

4

13

11.0

0.50

0.28

B-C-D-E-F-G-H

C-D-E-F-G

12

EID-CHKO18124

18

12

4

15

11.0

0.50

0.28

A-B-C-D-E-F-G-H-I

C-D-E-F-G

12

EID-CHKO666

6

6

6

3

5.0

0.50

0.28

B-C-D

B-C-D

4

EID-CHKO886

8

8

6

5

7.0

0.50

0.28

F-G-H-I

F-G-H-I

6

EID-CHKO1086

10

8

6

7

7.0

0.50

0.28

F-G-H-I

F-G-H-I

7

EID-CHKO10106

10

10

6

7

9.0

0.50

0.28

F-G-H-I

C-D-E-F-G

8

EID-CHKO12106

12

10

6

9

9.0

0.50

0.28

C-D-E-F-G

C-D-E-F-G

8

EID-CHKO12126

12

12

6

9

11.0

0.50

0.28

C-D-E-F-G

C-D-E-F-G

10

EID-CHKO16126

16

12

6

13

11.0

0.50

0.28

B-C-D-E-F-G-H

C-D-E-F-G

13

EID-CHKO16166

16

16

6

13

15.0

0.50

0.28

B-C-D-E-F-G-H

B-C-D-E-F-G-H

14

EID-CHKO18126

18

12

6

15

11.0

0.50

0.28

A-B-C-D-E-F-G-H-I

C-D-E-F-G

14

EID-CHKO18186

18

18

6

15

17.0

0.50

0.28

A-B-C-D-E-F-G-H-I

A-B-C-D-E-F-G-H-I

20

EID-CHKO24186

24

18

6

21

17.0

0.50

0.28

A-B-C-D-E-F-G-H-I

A-B-C-D-E-F-G-H-I

24

EID-CHKO24246

24

24

6

21

22.5

0.75

0.44

A-B-C-D-E-F-G-H-I

A-B-C-D-E-F-G-H-I

40

EID-CHKO30246

30

24

6

27

22.5

0.75

0.44

A-B-C-D-E-F-G-H-I

A-B-C-D-E-F-G-H-I

49

EID-CHKO36246

36

24

6

33

22.5

0.75

0.44

A-B-C-D-E-F-G-H-I

A-B-C-D-E-F-G-H-I

57

EID-CHKO36248

36

24

8

33

22.5

0.75

0.44

A-B-C-D-E-F-G-H-I

A-B-C-D-E-F-G-H-I

60



  •
