           EID-NH4 Two Door Floor-mount Continuous Hinge, 3pt Handle Series Enclosures - NEMA 4



Application:

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.

  • Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards:

  • UL 508 Type 3R, 4 and 12

  • CSA Type 3R, 4 and 12

  • Complies with:

    • NEMA Type 3R, 4, 12 and 3

    • IEC 60529, IP66

Construction:

  • Formed 12 gauge steel.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.

  • Lifting eyes provide for easy enclosure handling.

  • Doors are supported with heavy gauge continuous hinges.

  • New 3-pt padlocking door handle.

  • Seamless poured-in place gasket.

  • Provision for light kit mounting.

  • A grounding stud is provided in the enclosure and a bonding stud is provided on the door.

  • Center post is removable for easy installation of the inner panel.

  • 12” floor stands are welded to the enclosure.

  • Body stiffeners are provided in the larger enclosures for extra rigidity.

  • Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.

  • A removable 10 gauge inner panel is included.

  • Panel supports are provided for easy panel installation.

  • Collar studs are provided for mounting inner panels.

  • A literature pocket is provided for the inside of the door.

Finish:

  • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.

  • Removable white inner panel is finished in white powder coating.

Accessories:

  • Air conditioners

  • Blowers

  • Breather kits

  • Door Stop Kits

  • Drip Shield Kits

  • Enclosure Stabilizers

  • Filter fans

  • Floor Stand Kits

  • Gland Plates

  • Heaters

  • Inner Panels

  • Light Kit

  • Louvered ventilating plates

  • Thermostats

  • Window kits

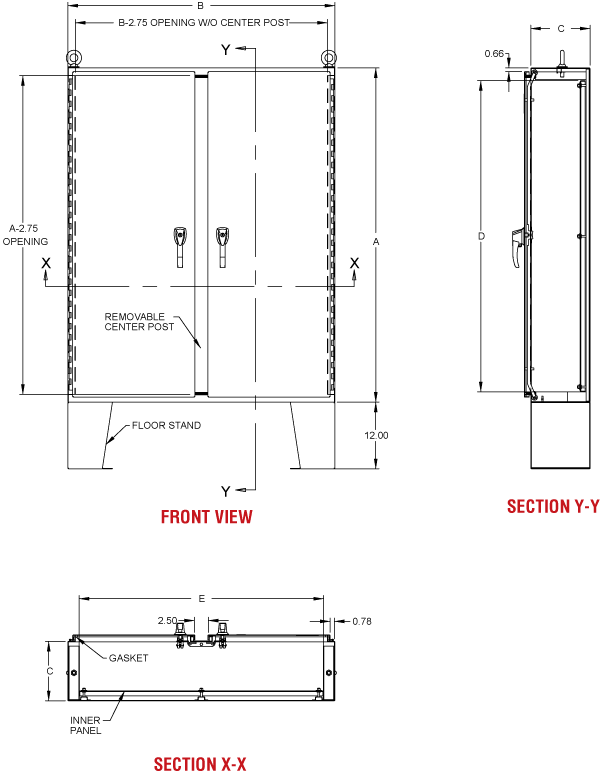

Part No.

Overall

Inner Panel
(Included)

A

B

C

D

E

EID-HN4FM604810

60.13

48.06

10.69

56

44

EID-HN4FM606012

60.13

60.06

12.69

56

56

EID-HN4FM726012

72.13

60.06

12.69

68

56

EID-HN4FM727212

72.13

72.06

12.69

68

68

EID-HN4FM727224

72.13

72.06

24.69

68

68



  •
