Electrical Enclosure EID-1436 & EID-EID-1438 Series:
EID-1436/EID-1438
Series Enclosures - NEMA 12, 13
Lift Off, Screw
Cover (SC)
EID-1436 & EID-1438 Series,
NEMA 12, 13
Clamped, Lift Off Screw Cover Enclosure.
Application:
-
Designed for use as instrument
enclosures, electrical junction boxes or terminal wiring
enclosures.
-
Provides a degree of
protection from falling dirt, dust, oil and water.
Standards:
-
UL 508 Type 12 and 13
-
CSA Type 12 and 13
-
Complies with
-
NEMA Type 12 and 13
-
IEC 60529, IP54
Construction:
-
Formed from 14 gauge steel.
-
Smooth, continuously welded seams without knockouts, cutouts
or holes.
-
Welded brackets provide for enclosure mounting.
-
Lift off cover is secured with captive, plated steel screws,
and supported on internal hinges except as noted on charts
at bottom and right.
-
Cover screws fasten into threaded, sealed wells.
-
Oil resistant gaskets are permanently secured.
-
A
bonding stud is provided on the door and a grounding stud is
provided on the enclosure.
Finish:
Accessories:

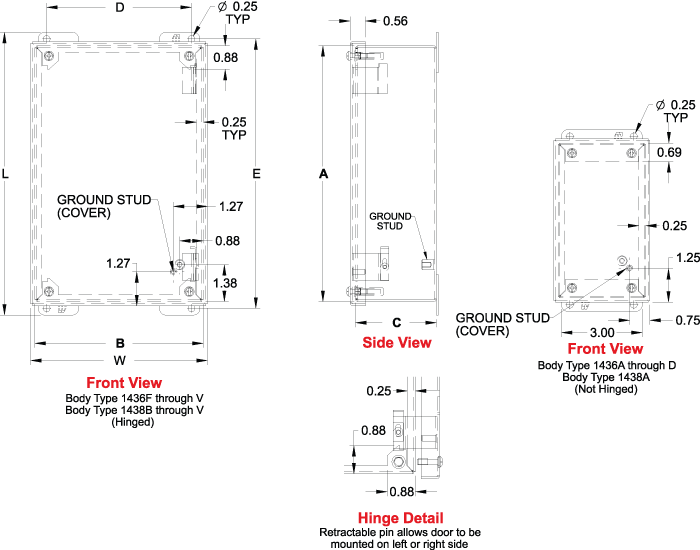

Standard Depth
Series (EID-1436)
|
|
Centers |
Overall Dimensions |
Ship Wt.
lbs |
|
Part No. |
A |
B |
C |
D |
E |
L |
W |
|
EID-1436A¹ |
3.50 |
3.25 |
2.75 |
2.38 |
4.00 |
4.50 |
3.56 |
2 |
|
EID-1436B¹ |
5.75 |
3.25 |
2.75 |
2.38 |
6.25 |
6.75 |
3.56 |
2 |
|
EID-1436C¹ |
8.00 |
3.25 |
2.75 |
2.38 |
8.50 |
9.00 |
3.56 |
3 |
|
EID-1436D¹ |
10.25 |
3.25 |
2.75 |
2.38 |
10.75 |
11.25 |
3.56 |
4 |
|
EID-1436F |
7.25 |
6.25 |
3.00 |
5.38 |
7.75 |
8.25 |
6.56 |
5 |
|
EID-1436H |
9.50 |
6.25 |
3.00 |
5.38 |
10.00 |
10.50 |
6.56 |
5 |
|
EID-1436K |
9.50 |
8.50 |
3.00 |
7.63 |
10.00 |
10.50 |
8.81 |
7 |
|
EID-1436O |
11.75 |
8.50 |
3.00 |
7.63 |
12.25 |
12.75 |
8.81 |
8 |
|
EID-1436S |
11.75 |
10.75 |
3.00 |
9.88 |
12.25 |
12.75 |
11.06 |
9 |
|
EID-1436V |
14.00 |
10.75 |
3.00 |
9.88 |
14.50 |
15.00 |
11.06 |
11 |
¹
Not Hinged
Extra Deep
Series (EID-1438)
|
|
Centers |
Overall Dimensions |
Ship Wt.
lbs |
|
Part No. |
A |
B |
C |
D |
E |
L |
W |
|
EID-1438A¹ |
4.00 |
4.00 |
4.75 |
3.13 |
4.50 |
5.00 |
4.31 |
3.00 |
|
EID-1438B |
6.00 |
4.00 |
4.75 |
3.13 |
6.50 |
7.00 |
4.31 |
4.00 |
|
EID-1438C |
8.00 |
4.00 |
4.75 |
3.13 |
8.50 |
9.00 |
4.31 |
5.00 |
|
EID-1438D |
10.00 |
4.00 |
4.75 |
3.13 |
10.50 |
11.00 |
4.31 |
5.00 |
|
EID-1438F |
7.25 |
6.25 |
4.75 |
5.38 |
7.75 |
8.25 |
6.56 |
5.00 |
|
EID-1438H |
9.50 |
6.25 |
4.75 |
5.38 |
10.00 |
10.50 |
6.56 |
5.00 |
|
EID-1438K |
9.50 |
8.50 |
4.75 |
7.63 |
10.00 |
10.50 |
8.81 |
7.00 |
|
EID-1438O |
11.75 |
8.50 |
4.75 |
7.63 |
12.25 |
12.75 |
8.81 |
8.00 |
|
EID-1438S |
11.75 |
10.75 |
4.75 |
9.88 |
12.25 |
12.75 |
11.06 |
9.00 |
|
EID-1438V |
14.00 |
10.75 |
4.75 |
9.88 |
14.50 |
15.00 |
11.06 |
11.00 |
¹
Not Hinged
|
