Industrial Electrical Enclosure EID-EID-1422 Series: EID-1422 Two Door Floor-mount Continuous Hinge, Series Enclosures - NEMA 12







            EID-1422 Two Door Floor-mount Continuous Hinge, Series Enclosures - NEMA 12



Application:

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.

  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards:

  • UL 508 Type 12

  • CSA type 12

  • Complies with

    • NEMA Type 12

    • IEC 60529, IP54

Construction:

  • Enclosures 54" high or less are formed 14 gauge steel.

  • Enclosures 60" high are formed 12 gauge steel.

  • Enclosures 72" high are formed 12 gauge steel with a 10 gauge steel back.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.

  • Body stiffeners are provided in enclosures for extra rigidity.

  • Heavy duty lifting eyebolts are provided with reinforced support angles.

  • 12" floor stands are welded to the enclosure. (w/ feet Part No.).

  • Welded brackets provide for enclosure mounting (w/o feet Part No.).

  • Gasketed overlapping doors eliminate the need for a center post.

  • Continuously hinged doors may be removed by pulling the hinge pin.

  • Doors are secured with a three point latch and operated with a key locking automotive type handle.

  • Latch rods are equipped with rollers for easier door closing.

  • Oil resistant gaskets are permanently secured.

  • A removable 10 gauge inner panel is included in enclosures 60" and larger. Smaller sizes include a 12 gauge inner panel.

  • Provision for light kit mounting.

  • Panel supports are provided in enclosures 60" and larger for easy panel installation.

  • Collar studs are provided for mounting inner panels.

  • A grounding stud is provided in the enclosure for each door and a bonding stud is pro­vided on the door.

  • A literature pocket is provided for the inside of the door.

Finish:

  • Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.

  • Removable inner panel is finished in white powder coating.

Accessories:

  • Air conditioners

  • Blowers

  • Breather kits

  • Door Stop Kits

  • Drip Shield Kits

  • Enclosure Stabilizers

  • Filter fans

  • Floor Stand Kits

  • Gland Plates

  • Heaters

  • Inner Panels

  • Light Kit

  • Louvered ventilating plates

  • Thermostats

  • Window kits

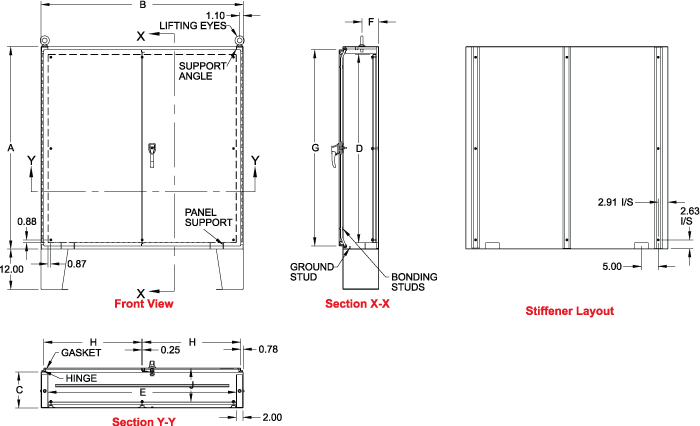

With Feet
Part No.

Without Feet
Part No.

A

B

C

Body
Gauge

Panel
Gauge

Panel Size

F

G

H

J

Ship Wt.
(lbs)

D

E

EID-1422A8F

EID-1422A8

54.13

42.06

8.69

14

12

50

38

4.03

52.25

20.13

8.96

275

EID-1422B8F

EID-1422B8

60.13

48.06

8.69

12

10

56

44

4.03

58.25

23.13

7.96

450

EID-1422B10F

EID-1422B10

60.13

48.06

10.69

12

10

56

44

5.03

58.25

23.13

9.96

475

EID-1422D10F

EID-1422D10

60.13

60.06

10.69

12

10

56

56

5.03

58.25

29.13

9.96

550

EID-1422E10F

EID-1422E10

72.13

60.06

10.69

12

10

68

56

5.03

70.25

29.13

9.96

625

EID-1422F10F

EID-1422F10

72.13

72.06

10.69

12

10

68

38

5.03

70.25

35.13

9.96

740

EID-1422B12F

EID-1422B12

60.13

48.06

12.69

12

10

56

44

5.03

58.25

23.13

11.96

491

EID-1422D12F

EID-1422D12

60.13

60.06

12.69

12

10

56

56

5.03

58.25

29.13

11.96

567

EID-1422E12F

EID-1422E12

72.13

60.06

12.69

12

10

68

56

5.03

70.25

29.13

11.96

645

EID-1422F12F

EID-1422F12

72.13

72.06

12.69

12

10

68

68

5.03

70.25

35.13

11.96

750

EID-1422B16F

EID-1422B16

60.13

48.06

16.69

12

10

56

44

8.03

58.25

23.13

15.96

520

EID-1422D16F

EID-1422D16

60.13

60.06

16.69

12

10

56

56

8.03

58.25

29.13

15.96

540

EID-1422E16F

EID-1422E16

72.13

60.06

16.69

12

10

68

56

8.03

70.25

29.13

15.96

740

EID-1422F16F

EID-1422F16

72.13

72.06

16.69

12

10

68

68

8.03

70.25

35.13

15.96

795

EID-1422B20F

EID-1422B20

60.13

48.06

20.69

12

10

56

44

10.03

58.25

23.13

19.96

506

EID-1422E20F

EID-1422E20

72.13

60.06

20.69

12

10

68

56

10.03

70.25

29.13

19.96

750

EID-1422F20F

EID-1422F20

72.13

72.06

20.69

12

10

68

68

10.03

70.25

35.13

19.96

885

EID-1422B24F

EID-1422B24

60.13

48.06

24.69

12

10

56

44

12.03

58.25

23.13

23.96

550

EID-1422D24F

EID-1422D24

60.13

60.06

24.69

12

10

56

56

12.03

58.25

29.13

23.96

660

EID-1422E24F

EID-1422E24

72.13

60.06

24.69

12

10

68

56

12.03

70.25

29.13

23.96

810

EID-1422F24F

EID-1422F24

72.13

72.06

24.69

12

10

68

68

12.03

70.25

35.13

23.96

945



  •
