Industrial Electrical Enclosure EID-1422 Series: EID-1422 Two Door Wall-mount Continuous Hinge, Series Enclosures - NEMA 12







                        EID-1422 Two Door Wall-mount Continuous Hinge,  Series Enclosures - NEMA 12



Application:

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.

  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards:

  • UL 508 Type 12

  • CSA type 12

  • Complies with

    • NEMA Type 12

    • IEC 60529, IP54

Construction:

  • Enclosures are formed 12 or 14 gauge steel, as noted.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.

  • Body stiffeners are provided in enclosures 30” high or more for extra rigidity.

  • Welded brackets provide for enclosure mounting.

  • Gasketed overlapping doors eliminate the need for a center post.

  • Continuously hinged doors may be removed by pulling the hinge pin.

  • Doors are secured with a three point latch and operated with a key locking automotive type handle.

  • Latch rods are equipped with rollers for easier door closing.

  • Oil resistant gaskets are permanently secured.

  • A removable 10 gauge inner panel is included in enclosures as noted.

  • Smaller sizes include a 12 gauge inner panel.

  • Collar studs are provided for mounting inner panels.

  • A grounding stud is provided in the enclosure and a bonding stud is provided on the door.

  • A literature pocket is provided for the inside of the door.

Finish:

  • Cover and enclosure are phos­phat­ized and finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.

  • Removable inner panel is finished in white powder coating.

Accessories:

  • Air conditioners

  • Blowers

  • Breather kits

  • Door Stop Kits

  • Drip Shield Kits

  • Enclosure Stabilizers

  • Filter fans

  • Floor Stand Kits

  • Gland Plates

  • Heaters

  • Light Kit

  • Louvered ventilating plates

  • Thermostats

  • Window kits

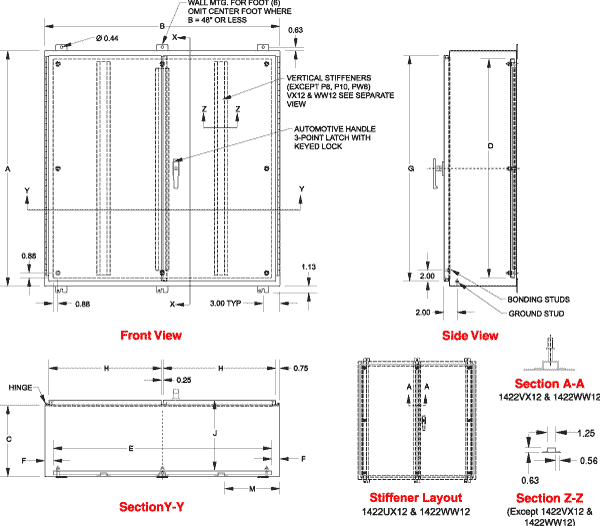

Part No.

A

B

C

Body
Gauge

Panel
Gauge

Panel Size

F

G

H

J

Ship Wt.
(lbs)

D

E

EID-1422P8

24.00

42.00

8.00

14

12

21

39

1.5

22.25

20.13

7.96

79

EID-1422PW8

24.00

48.00

8.00

14

12

21

45

1.5

22.25

23.13

7.96

92

EID-1422P10

24.00

42.00

10.00

14

12

21

39

1.5

22.25

20.13

9.96

101

EID-1422R10

30.00

42.00

10.00

14

12

27

39

1.5

28.25

20.13

9.96

112

EID-1422RW10

30.00

48.00

10.00

14

12

27

45

1.5

28.25

23.13

9.96

115

EID-1422RX10

30.00

60.00

10.00

14

12

27

57

1.5

28.25

29.13

9.96

142

EID-1422UV12

36.00

42.00

12.00

14

12

33

39

1.5

34.25

20.13

11.96

134

EID-1422UW12

36.00

48.00

12.00

14

12

33

45

1.5

34.25

23.13

11.96

230

EID-1422UX12

36.00

60.00

12.00

14

12

33

57

1.5

34.25

29.13

11.96

181

EID-1422VV12

42.00

42.00

12.00

14

12

39

39

1.5

40.25

20.13

11.96

152

EID-1422VW12

42.00

48.00

12.00

14

12

39

45

1.5

40.25

23.13

11.96

161

EID-1422VX12

42.13

60.06

12.69

12

10

38

56

2.0

40.25

29.13

11.96

202

EID-1422WW12

48.13

48.06

12.69

12

10

44

44

2.0

46.25

23.13

11.96

350



¹ Does not meet JIC Requirements

When A=

M=

42

9.88

48

11.38

60

14.38



  •
