Industrial Electrical Enclosure EID-1418J Series: EID-1418J Junior Series Enclosures - NEMA 12







                           EID-1418J Junior Series, NEMA 12

Application:

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.

  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards:

  • UL 508 Type 12

  • Complies with

    • NEMA Type 12

    • JIC EGP-1-1967 unless marked¹

    • IEC 60529, IP54

Construction:

  • Formed from 14 gauge steel.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.

  • Door and body stiffeners are provided in the larger enclosures for extra rigidity.

  • Welded brackets provide for enclosure mounting.

  • Continuously hinged cover is secured with plated screws, threaded into sealed wells.

  • Oil resistant gaskets are permanently secured.

  • A removable 12 gauge inner panel is included.

  • Collar studs are provided for mounting inner panels.

  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.

  • A literature pocket is provided for the inside of the door.

Finish:

  • Cover and enclosure are phosphat­­ized and finished in ANSI 61 gray recoatable powder coating.

  • Removable inner panel is finished in white powder coating.

Accessories:

  • Additional inner panels

  • Breather kits

  • Filter fans

  • Heaters

  • Louvered ventilating plates

  • Terminal kit assemblies

  • Thermostats

  • Swing Panel

  • Window kits

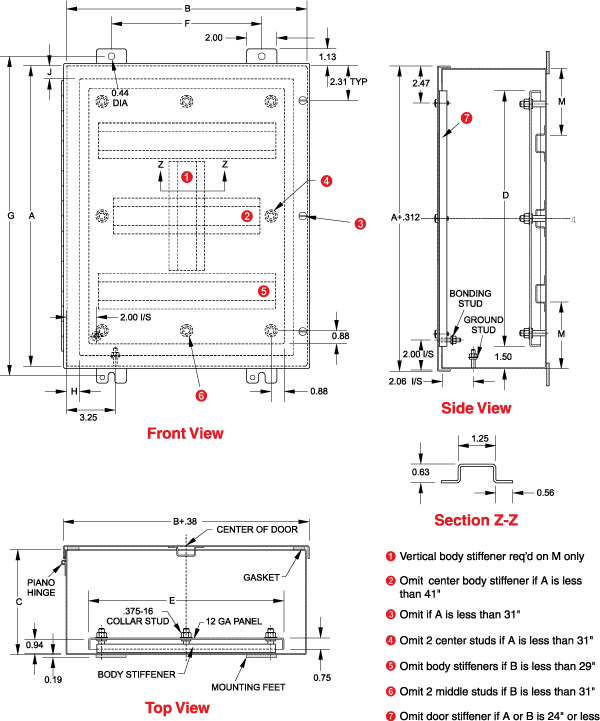

Part No.

A

B

C

Panel Dimensions

Centers

H

J

Ship Wt.
(lbs)

D

E

F

G

EID-1418JB7

16

12

7

13

9

6

17.25

0.88

0.50

30

EID-1418JC7

20

16

7

17

13

10

21.25

0.88

0.88

38

EID-1418JD7

20

20

7

17

17

14

21.25

0.88

0.50

45

EID-1418JE7

24

20

7

21

17

14

25.25

0.88

0.50

54

EID-1418JJ7

24

24

7

21

21

18

25.25

0.88

0.50

63

EID-1418JF7

30

20

7

27

17

14

31.25

0.88

0.50

70

EID-1418JK7

30

24

7

27

21

18

31.25

0.88

0.50

78

EID-1418JL7

36

24

7

33

21

18

37.25

0.88

0.50

90

EID-1418JC9

20

16

9

17

13

10

21.25

0.88

0.50

42

EID-1418JD9

20

20

9

17

17

14

21.25

0.88

0.50

45

EID-1418JE9

24

20

9

21

17

14

25.25

0.88

0.50

60

EID-1418JJ9

24

24

9

21

21

18

25.25

0.88

0.50

67

EID-1418JK9

30

24

9

27

21

18

31.25

0.88

0.50

85

EID-1418JF9

30

20

9

27

17

14

31.25

0.88

0.50

70

EID-1418JM9

36

30

9

33

27

24

37.25

1.38

1.38

120

EID-1418JL9

36

24

9

33

21

18

37.25

0.88

0.50

100

EID-1418JO9¹

42

30

9

39

27

24

43.25

1.38

1.38

137

EID-1418JP9¹

42

36

9

39

33

30

43.25

1.38

1.38

165

EID-1418JJ11

24

24

11

21

21

18

25.25

0.88

0.50

73

EID-1418JL11

36

24

11

33

21

18

37.25

0.88

0.50

107

EID-1418JS11¹

48

36

11

45

33

30

49.25

1.38

1.38

187

EID-1418JK13

30

24

13

27

21

18

31.25

0.88

0.50

94

EID-1418JM13

36

30

13

33

27

24

37.25

1.38

1.38

131



¹ Does not meet JIC Requirements



When A=

M=

30

7.00

36

9.00

42

9.88

48

11.38



  •
