Industrial Electrical Enclosure EID-1414 N4 Series: EID-1414N4 Series Enclosures - NEMA 4, 12, 13
Clamped, Lift Off Cover







                           EID-1414N4 Series, NEMA 4, 12, 13 Clamped, Lift Off Cover Enclosure.



Application:

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.

  • Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards:

  • UL 508 Type 3R, 4, 12 and 13

  • CSA Type 3R, 4, 12 and 13

  • Complies with

    • NEMA Type 3R, 4, 12 and 13

    • JIC EGP-1-1967

    • IEC 60529, IP66

Construction:

  • Body formed from 16 or 14 gauge steel. Covers are formed from 14 gauge steel.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.

  • Welded brackets provide for enclosure mounting.

  • Lift off cover is secured with stainless steel clamps and screws.

  • Seamless poured-in place gasket.

  • All models larger than 4" x 4" include a removable 14 gauge inner panel.

  • Internal threaded weld studs are provided for mounting inner panels.

  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.

Finish:

  • Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating.

  • Removable inner panel is finished in white powder coating.

Accessories:

  • Additional inner panels

  • Breather kits

  • Door clamping hardware

  • Filter fans

  • Heaters

  • Louvered ventilating plates

  • Terminal kit assemblies

  • Thermostats

  • Swing Panel

  • Window kits

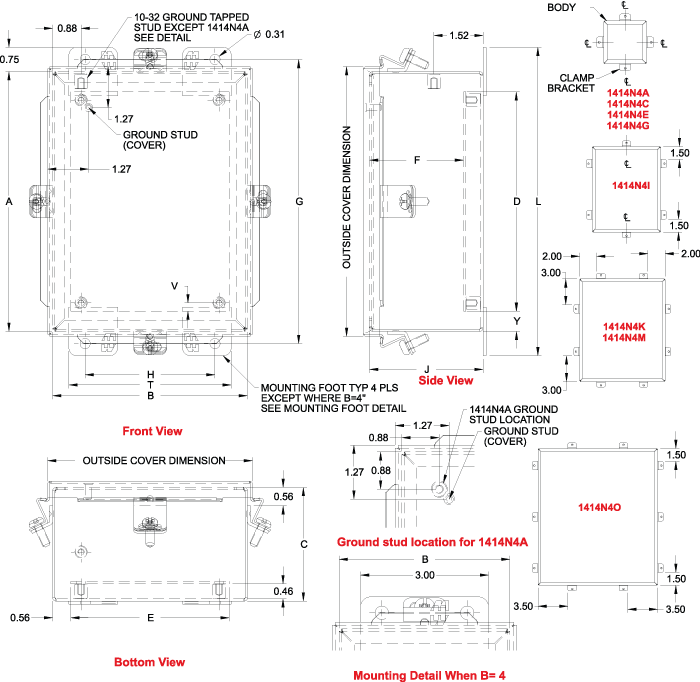

Part No.

Panel Dimensions

Centers



Cover
Dimensions



Ship
Wt.
(lbs)

A

B

C

D

E

F

G

H

J

L

T

V

Y

EID-1414N4Aš

4.00

4.00

3.00

—

—

—

4.75

2.00

2.60

5.50

4.31

4.31

3.00

—

—

2

EID-1414N4C

6.00

4.00

3.00

4.88

2.88

2.50

6.75

2.00

2.60

7.50

6.31

4.31

3.00

0.31

0.56

3

EID-1414N4G

8.00

6.00

3.50

6.75

4.88

3.00

8.75

4.00

3.10

9.50

8.31

6.31

5.00

0.25

0.63

6

EID-1414N4E

6.00

6.00

4.00

4.88

4.88

3.50

6.75

4.00

3.60

7.50

6.31

6.31

5.00

0.31

0.56

6

EID-1414N4I

10.00

8.00

4.00

8.75

6.88

3.50

10.75

6.00

3.60

11.50

10.31

8.31

7.00

0.25

0.63

10

EID-1414N4K

12.00

10.00

5.00

10.75

8.88

4.50

12.75

8.00

4.60

13.50

12.31

10.31

9.00

0.25

0.63

15

EID-1414N4M6

14.00

12.00

6.00

12.75

10.88

5.50

14.75

10.00

5.60

15.50

14.31

12.31

11.00

0.25

0.63

20

EID-1414N4O6

16.00

14.00

6.00

14.75

12.88

5.50

16.75

12.00

5.60

17.50

16.31

14.31

13.00

0.25

0.63

26

EID-1414N4M8

14.00

12.00

8.00

12.75

10.88

7.50

14.75

10.00

7.60

15.50

14.31

12.31

11.00

0.25

0.63

22

EID-1414N4O10

16.00

14.00

10.00

14.75

12.88

9.50

16.75

12.00

9.60

17.50

16.31

14.31

13.00

0.25

0.63

30

š Panel not included

  •
