Industrial Electrical Enclosure EID-1414 Series: EID-1414 Series Enclosures - NEMA 12, 13
Clamped, Lift Off Cover







                           EID-1414 Series, NEMA 12, 13 Clamped, Lift Off Cover Enclosure.



Application:

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.

  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards:

  • UL 508 Type 12 and 13

  • CSA Type 12 and 13

  • Complies with

    • NEMA Type 12 and 13

    • JIC EGP-1-1967 unless marked¹

    • IEC 60529, IP54

Construction:

  • Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.

  • Smooth, continuously welded seams without knockouts, cutouts or holes.

  • Welded brackets provide for enclosure mounting.

  • Lift off cover is secured with stainless steel clamps and plated steel screws and retained with a plated chain when open.

  • Seamless poured-in place gasket.

  • Models larger than 4" x 4" include a removable 14 gauge inner panel.

  • Internal threaded weld studs are provided for mounting inner panels.

  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.

Finish:

  • Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.

  • Removable inner panel is finished in white powder coating.

Accessories:

  • Additional inner panels

  • Breather kits

  • Door clamping hardware

  • Filter fans

  • Heaters

  • Louvered ventilating plates

  • Terminal kit assemblies

  • Thermostats

  • Swing Panel

  • Window kits

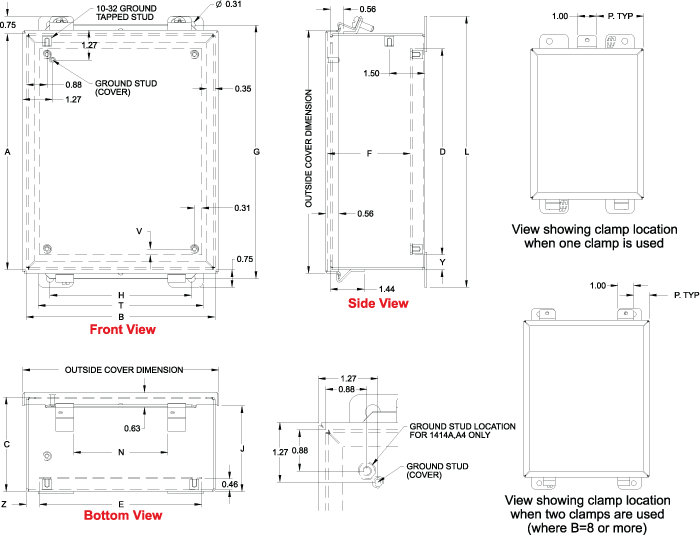

Part No.

A

B

C

D

E

F

G

H

J

L

N

Cover
Dimensions

P

T

V

Y

Z

Ship
Wt.
(lbs)

EID-1414A¹

4.0

4.0

3.0

4.75

2.00

2 .64

5.50

1.31

4.31

4.31

1.50

3.00

2

EID-1414C¹

6.0

4.0

3.0

4.88

2.88

2.51

6.75

2.00

2.64

7.50

1.31

6.31

4.31

1.50

3.00

0.31

0.56

0.56

3

EID-1414G

8.0

6.0

3.5

6.75

4.88

3.01

8.75

4.00

3.14

9.50

2.88

8.31

6.31

2.50

5.00

0.25

0.63

0.56

7

EID-1414A4¹

4.0

4.0

4.0

4.75

2.00

3.64

5.50

1.31

4.31

4.31

1.50

3.00

3

EID-1414C4¹

6.0

4.0

4.0

4.88

2.88

3.51

6.75

2.00

3.64

7.50

1.31

6.31

4.31

1.50

3.00

0.31

0.56

0.56

4

EID-1414E

6.0

6.0

4.0

4.88

4.88

3.51

6.75

4.00

3.64

7.50

2.88

6.31

6.31

2.50

5.00

0.31

0.56

0.56

5

EID-1414I

10.0

8.0

4.0

8.75

6.88

3.51

10.75

6.00

3.64

11.50

4.00

10.31

8.31

1.00

7.00

0.25

0.63

0.56

10

EID-1414K

12.0

10.0

5.0

10.75

8.88

4.51

12.75

8.00

4.64

13.50

6.00

12.31

10.31

1.00

9.00

0.25

0.63

0.56

13

EID-1414M6

14.0

12.0

6.0

12.75

10.88

5.51

14.75

10.00

5.64

15.50

8.00

14.31

12.31

1.00

11.00

0.25

0.63

0.56

19

EID-1414O6

16.0

14.0

6.0

14.75

12.88

5.51

16.75

12.00

5.64

17.50

10.00

16.31

14.31

1.00

13.00

0.25

0.63

0.56

23

EID-1414M8

14.0

12.0

8.0

12.75

10.88

7.51

14.75

10.00

7.64

15.50

8.00

14.31

12.31

1.00

11.00

0.25

0.63

0.56

20

EID-1414O10

16.0

14.0

10.0

14.75

12.88

9.51

16.75

12.00

9.64

17.50

10.00

16.31

14.31

1.00

13.00

0.25

0.63

0.56

25

¹ Does not meet JIC Requirements

  •
