Corrosion
Resistant Enclosure Eclipse Series:
Eclipse Series Stainless Steel (SS) Single Window Door
Enclosures - NEMA 4X
Eclipse
Series Stainless Steel (S.S.) Single Window Door
Enclosures - NEMA 4X
Application:
- Designed to enclose
electrical and/or electronic equipment in wall-mount
applications where viewing of component operation is
necessary while maintaining protection ratings.
- Impressive styling
features like hidden hinges and attractive latching systems
make the Eclipse a suitable addition to any high-tech
equipment installation.
- A wide range of sizes and
practical accessories make this product line a complete
package.
Standards:
-
UL 508 Type 3R, 4, 4X, and 12
-
CSA Type 3R, 4, 4X, and 12
-
Complies with
Construction:
- Formed 14 or 16 gauge 304
stainless steel.
- Full view UV resistant
polycarbonate window allows maximum viewing area of inner
panel.
- Continuously welded seams
ground smooth.
- Door stiffeners are
provided where required for increased strength and rigidity
- designed to also permit additional mounting options.
- Formed lip on enclosure to
exclude flowing liquids and contaminants.
- Door latches feature the
added safety of quarter turn slot requiring use of tool for
opening.
- Doors may be easily
removed for modifications and are interchangeable.
- Seamless poured-in place
gasket.
- Collar studs provided for
mounting inner panel.
- Includes hardware kit with
panel mounting nuts and sealing washers for wall mounting
holes.
- Bonding stud provided on
door and grounding stud installed in enclosure.
- Hinges are constructed
from stainless steel.
- Stainless steel hinge pins
and quarter turns.
Finish:
Accessories:
-
Air conditioners
-
Blowers
-
Breather kits
-
DIN Rails
-
DIN Rail Mounting Kit
-
Door stop kit
-
Filter fans
-
Heaters
-
Handles
-
Inner Panel
-
Quarter Turn Inserts and Keys
-
Literature Pocket
-
Mounting Foot Kit
-
Padlock Adapter (EPA)
-
Swing Frame
-
Swing Panel
-
Replacement Hinge Pins
-
Replacement Quarter Turn
Assemblies
-
Thermostats
-
Touch Up Paint
-
UL/CSA Approved Hardware Kit

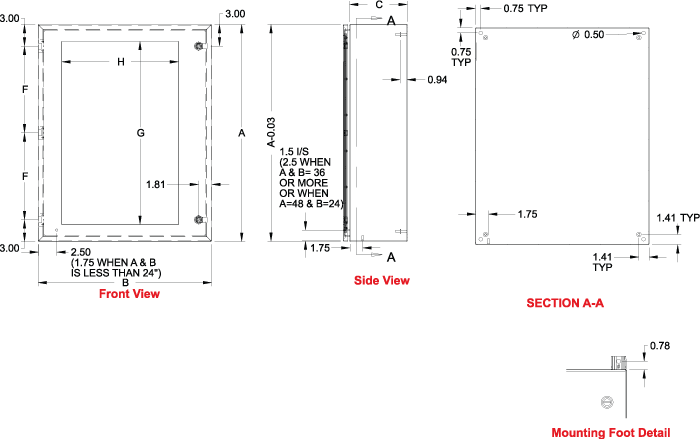

Part No. |
Overall Dimensions |
Door/ Body
Gauge |
Latch¹
Qty |
Hinge
Qty |
|
Viewing Area |
Optional Panel
Part No. |
Inner Panel Dimensions |
Ship Wt.
Lbs. |
A |
B |
C |
F |
G |
H |
D |
E |
EID-EN4SD12126WSS |
12 |
12 |
6 |
16 |
1 |
2 |
10 |
7.33 |
6.71 |
EID-EP1212 |
10.2 |
10.2 |
14 |
EID-EN4SD16126WSS |
16 |
12 |
6 |
16 |
1 |
2 |
10 |
11.33 |
6.71 |
EID-EP1612 |
14.2 |
10.2 |
16 |
EID-EN4SD20166WSS |
20 |
16 |
6 |
16 |
1 |
2 |
14 |
15.33 |
10.71 |
EID-EP2016 |
18.2 |
14.2 |
22 |
EID-EN4SD20206WSS |
20 |
20 |
6 |
16 |
1 |
2 |
14 |
15.33 |
14.71 |
EID-EP2020 |
18.2 |
18.2 |
26 |
EID-EN4SD20168WSS |
20 |
16 |
8 |
16 |
1 |
2 |
14 |
15.33 |
10.71 |
EID-EP2016 |
18.2 |
14.2 |
25 |
EID-EN4SD20208WSS |
20 |
20 |
8 |
16 |
1 |
2 |
14 |
15.33 |
14.71 |
EID-EP2020 |
18.2 |
18.2 |
28 |
EID-EN4SD24208WSS |
24 |
20 |
8 |
16 |
1 |
2 |
18 |
19.33 |
14.71 |
EID-EP2420 |
22.2 |
18.2 |
32 |
EID-EN4SD24248WSS |
24 |
24 |
8 |
14 |
2 |
2 |
18 |
19.33 |
16.15 |
EID-EP2424 |
22.2 |
22.2 |
40 |
EID-EN4SD30248WSS |
30 |
24 |
8 |
14 |
2 |
3 |
12 |
25.33 |
16.15 |
EID-EP3024 |
28.2 |
22.2 |
46 |
EID-EN4SD161210WSS |
16 |
12 |
10 |
16 |
1 |
2 |
10 |
11.33 |
6.71 |
EID-EP1612 |
14.2 |
10.2 |
16 |
EID-EN4SD201610WSS |
20 |
16 |
10 |
16 |
1 |
2 |
14 |
15.33 |
10.71 |
EID-EP2016 |
18.2 |
14.2 |
25 |
EID-EN4SD202010WSS |
20 |
20 |
10 |
16 |
1 |
2 |
14 |
15.33 |
14.71 |
EID-EP2020 |
18.2 |
18.2 |
28 |
EID-EN4SD242010WSS |
24 |
20 |
10 |
16 |
1 |
2 |
18 |
19.33 |
14.71 |
EID-EP2420 |
22.2 |
18.2 |
32 |
EID-EN4SD242410WSS |
24 |
24 |
10 |
14 |
2 |
2 |
18 |
19.33 |
16.15 |
EID-EP2424 |
22.2 |
22.2 |
40 |
EID-EN4SD302410WSS |
30 |
24 |
10 |
14 |
2 |
3 |
12 |
25.33 |
16.15 |
EID-EP3024 |
28.2 |
22.2 |
46 |
EID-EN4SD202012WSS |
20 |
20 |
12 |
16 |
1 |
2 |
18 |
15.33 |
14.71 |
EID-EP2020 |
18.2 |
18.2 |
34 |
EID-EN4SD302412WSS |
30 |
24 |
12 |
14 |
2 |
3 |
12 |
25.33 |
16.15 |
EID-EP3024 |
28.2 |
22.2 |
57 |
¹
All Window Door latch types are quarter turns.
|
