Custom  relay power on delay module.

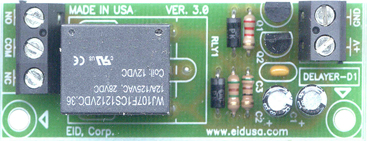

The DELAYER-D1 board is designed to delay relay switching for applications such as air-condition, pump or motor on delays. If used properly, it will eliminate the need for expensive industrial power switch, which would otherwise be needed to carry out the same task.



DELAYER-D1 is easy to install, setup and operate. If you want to  professionally power your HVAC motors, DELAYER-D1 offers the features you need. Mounted easily via two 0.125" mounting holes. and easily connected via Terminal Blocks.



The board is designed to operate from 9 to 12VDC signal or 12V Battery.

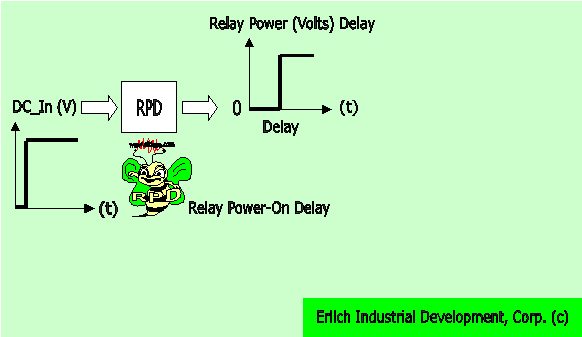

1. Input power to the relay. Upon power the delay will turn on after delay.

2. Relay Output No (Normally Open), Com (Common) and NC (Normally Closed).





DELAYER-D1 Features



  • Up to custom 6 Second delay.

  • SPDT relay.

  • Generally powered from any 9 to 12V DC power source or signal.

  • Also, designed to operate from 12VDC car battery

Specifications

  • Input voltage                           9-12V DC

  • Relative Output voltage stability  +/-3%

  • Relay Output current                 Up to 12A at 110VAC/60HZ.

  • PCB material                             FR4

  • Max power consumption             0.5W

  • Storage temperature                 40 - 70   [F]

  • Operating temperature               32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                12[V] max

  • Manufactured                           100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

DELAYER-D1 Relay Power on delay interface board

EID-DELAYER-D1-XX12V

$28.95

  •
