ISORELER-M4  Quad opto-ISOlated medium current RELay boards



The ISORELER-M4 board is designed to turn four relays on and off as a direct response to low voltage inputs. While the signal between the input and the relay are totally isolated utilizing opto-coupler ICs.



If used properly, it will eliminate the need for expensive units, which would otherwise be needed to carry out the same tasks.



ISORELER-M4 is easy to install, setup and operate. If you want to do professional high voltage switching related functions, ISORELER-M4 offers the features you need. Mounted easily via four 0.125" mounting holes.

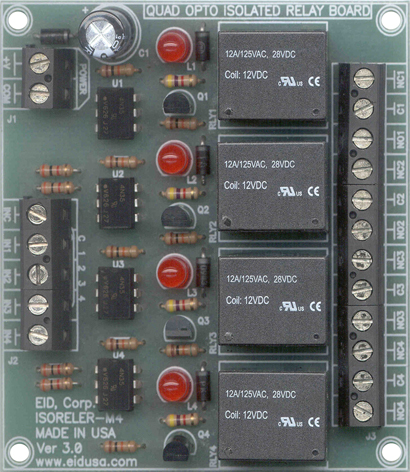

Shown above ISORELER-M4 Model B with 12V coil "C type" relays



Note: When the quad isolated relay module is powered on, all relays and their corresponding LEDs are "On", individual signal will turn its corresponding relay and LED "Off"

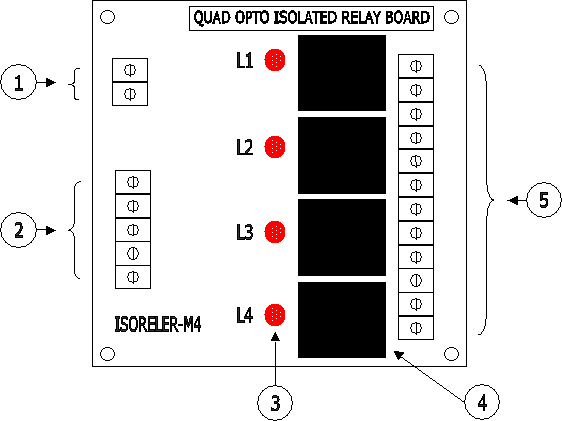

Figure A



1. Input Power: 5, 12 or 24V relay's coils model depended.

2. Input control signal with common ground.

3. Relay corresponding LED Power Indicator.

4. Medium size "C" relay.

5. Relays outputs.





Quad opto-isolated medium current relay boards configuration models:



Model #

Input Voltage

Relays coils

EID's OEM P#

ISORELER-M4A

0-5V DC (TTL)

5V

EID-ISO-RELER-M4-05VRT

ISORELER-M4A

0-10V DC (HVAC)

5V

EID-ISO-RELER-M4-05VRH

ISORELER-M4A

0-24V DC (INDUSTRIAL)

5V

EID-ISO-RELER-M4-05VRI

ISORELER-M4A

0-XV DC (CUSTOM)

5V

EID-ISO-RELER-M4-05VRCX








ISORELER-M4B

0-5V DC (TTL)

12V

EID-ISO-RELER-M4-12VRT

ISORELER-M4B

0-10V DC (HVAC)

12V

EID-ISO-RELER-M4-12VRH

ISORELER-M4B

0-24V DC (INDUSTRIAL)

12V

EID-ISO-RELER-M4-12VRI

ISORELER-M4B

0-XV DC (CUSTOM)

12V

EID-ISO-RELER-M4-12VRCX








ISORELER-M4C

0-5V DC (TTL)

24V

EID-ISO-RELER-M4-24VRT

ISORELER-M4C

0-10V DC (HVAC)

24V

EID-ISO-RELER-M4-24VRH

ISORELER-M4C

0-24V DC (INDUSTRIAL)

24V

EID-ISO-RELER-M4-24VRI

ISORELER-M4C

0-XV DC (CUSTOM)

24V

EID-ISO-RELER-M4-24VRCX





ISORELER-M4 Features



  • Built-in relay on LED indicator for each relay.

  • Power source is chained on the board mechanically.

  • Also, designed to operate from 12VDC or 24VDC car battery (models B and C).

Specifications

  • PCB material                            FR4

  • Relay switch min. rating            110V/10A other values are available

  • Max power consumption            2W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               5, 12 or 24 [VDC]

  • Power source                          12V battery or 12VDC (Model B)

  • Relay on  indicator                    LED Green or Red

  • Wires Connections                    Via terminal-block

  • Manufactured                          100% in U.S.A.

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.



Description

SKU #

Price

ISORELER-M4 Quad opto isolated relay board. with 5V-coils relays, input via TTL signals.

EID-ISO-RELER-M4-05VRT

$151.56

ISORELER-M4 Quad opto isolated relay board. with 5V-coils relays, input via TTL signals. with 6" wires (6).

EID-ISO-RELER-M4W-05VRT

$151.56

ISORELER-M4 Quad opto isolated relay board. with 5V-coils relays, input via HVAC signals.

EID-ISO-RELER-M4-05VRH

$151.56

ISORELER-M4 Quad opto isolated relay board. with 15V-coils relays, input via HVAC signals. with 6" wires (6).

EID-ISO-RELER-M4W-05VRH

$151.56

ISORELER-M4 Quad opto isolated relay board. with 5V-coils relays, input via INDUSTRIAL signals.

EID-ISO-RELER-M4-05VRI

$151.56

ISORELER-M4 Quad opto isolated relay board. with 5V-coils relays, input via INDUSTRIAL signals. with 6" wires (6).

EID-ISO-RELER-M4W-05VRI

$151.56

ISORELER-M4 Quad opto isolated relay board. with 12V-coils relays, input via TTL signals.

EID-ISO-RELER-M4-12VRT

139.44

ISORELER-M4 Quad opto isolated relay board. with 12V-coils relays, input via TTL signals. with 6" wires (6).

EID-ISO-RELER-M4W-12VRT

$159.56

ISORELER-M4 Quad opto isolated relay board. with 12V-coils relays, input via HVAC signals.

EID-ISO-RELER-M4-12VRH

$159.56

ISORELER-M4 Quad opto isolated relay board. with 12V-coils relays, input via HVAC signals. with 6" wires (6).

EID-ISO-RELER-M4W-12VRH

$159.56

ISORELER-M4 Quad opto isolated relay board. with 12V-coils relays, input via INDUSTRIAL signals.

EID-ISO-RELER-M4-12VRI

$159.56

ISORELER-M4 Quad opto isolated relay board. with 12V-coils relays, input via INDUSTRIAL signals. with 6" wires (6).

EID-ISO-RELER-M4W-12VRI

$159.56

ISORELER-M4 Quad opto isolated relay board. with 24V-coils relays, input via TTL signals.

EID-ISO-RELER-M4-24VRT

$144.93

ISORELER-M4 Quad opto isolated relay board. with 24V-coils relays, input via TTL signals. with 6" wires (6).

EID-ISO-RELER-M4W-24VRT

$156.63

ISORELER-M4 Quad opto isolated relay board. with 24V-coils relays, input via HVAC signals.

EID-ISO-RELER-M4-24VRH

$156.63

ISORELER-M4 Quad opto isolated relay board. with 24V-coils relays, input via HVAC signals. with 6" wires (6).

EID-ISO-RELER-M4W-24VRH

$156.63

ISORELER-M4 Quad opto isolated relay board. with 24V-coils relays, input via INDUSTRIAL signals.

EID-ISO-RELER-M4-24VRI

$156.63

ISORELER-M4 Quad opto isolated relay board. with 24V-coils relays, input via INDUSTRIAL signals. with 6" wires (6).

EID-ISO-RELER-M4W-24VRI

$156.63

  •
