INTERFACER-PDM4APR. High-performance Industrial VAC or VDC quad Power Distribution board with built-in adjustable power regulator Module.



The INTERFACER-PDM4APR board is designed to perform fused power distribution tasks:



Regulate DC or AC voltages and Distribute it over 4 outputs. I.e. 24V DC to up to four (4) high end cameras or CCTV.



Regulate DC or AC voltages and Distribute it over 4 outputs. I.e. 12V or 24V DC to up to four (4) Led strip (LED rope light)



Distribute regulate 5V, 10V, 12V, 24V, 28V (VDC) with individual per channel fuse protection, jumper select and LED power indication.



The board design to powered via industrial standard 15V, 24V or 28V AC/DC



Distribute 10V, 12V, 24V, 28V  (VDC) with individual per channel output fuse protection, power on/off jumper select and LED power indication (VDC).



If used properly, it will eliminate the need for expensive power distribution and additional wires and equipment which would otherwise be needed to carry out the same tasks. Commonly utilized as the heart of cameras In-Line power source.



INTERFACER-PDM4APR is easy to install, setup and operate. If you want to do professional voltage measurement and signal buffer related functions, INTERFACER-PDM4APR offers the features you need. Mounted easily via two 0.125" mounting holes.



Supper Quad Power Distribution with adjustable power regulator Module, power input to up to 4 fused outputs, jumper select and LED power indication

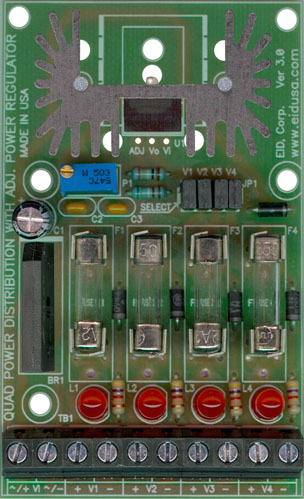

Figure A



1. Power: 15V, 24V, 28V (VAC or VDC) model depended

2. Output 1 VX (Power to to CCTV 1)

3. Output 2 VX (Power to to CCTV 2)

4. Output 3 VX (Power to to CCTV 3)

5. Output 4 VX (Power to to CCTV 4)

6. Channel power select (On/Off) switch via jumper

7. Outputs voltage (VX VDC) fine adjustment to 3 decimal point.

8. Channel corresponding protection fuse

9. Channel  LED Power Indicator



Where; VX is model depended.



Medium Current version





Supper medium current Quad Power Distribution with adjustable power regulator Module, power input to up to 4 fused outputs, jumper select and LED power indication





Specifications

  • PCB material                            FR4

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Power source                          10V-36V (VAC or VDC)

  • Manufactured                         100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

INTERFACER-PDM4ARP Medium Current, high accuracy quad channel 3.3VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4M-ARP-3X3V

$118.92

INTERFACER-PDM4ARP Medium Current, high accuracy quad channel 5VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4M-ARP-5V

$118.92

INTERFACER-PDM4ARP Medium Current, high accuracy quad channel 10VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4M-ARP-10V

$118.92

INTERFACER-PDM4ARP Medium Current, high accuracy quad channel 12VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4M-ARP-12V

$118.92

INTERFACER-PDM4ARP Medium Current, high accuracy quad channel 15VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4M-ARP-15V

$118.92

INTERFACER-PDM4ARP Medium Current, high accuracy quad channel 24VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4M-ARP-24V

$118.92

INTERFACER-PDM4ARP Medium Current, high accuracy quad channel 28VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4M-ARP-28V

$125.93

INTERFACER-PDM4ARP High Current, high accuracy quad channel 3.3VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4H-ARP-3X3V

$125.93

INTERFACER-PDM4ARP High Current, high accuracy quad channel 5VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4H-ARP-5V

$125.93

INTERFACER-PDM4ARP High Current, high accuracy quad channel 10VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4H-ARP-10V

$125.93

INTERFACER-PDM4ARP High Current, high accuracy quad channel 12VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4H-ARP-12V

$125.93

INTERFACER-PDM4ARP High Current, high accuracy quad channel 15VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4H-ARP-15V

$125.93

INTERFACER-PDM4ARP High Current, high accuracy quad channel 24VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4H-ARP-24V

$111.93

INTERFACER-PDM4ARP High Current, high accuracy quad channel 28VDC power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4H-ARP-28V

$125.93

  •
