Industrial POWER OVER THE ETHERNET (POE) TAPER with Step Down Power Supply and USB output Interface Board.



The POE-SD-TAPER, a Power over Ethernet (PoE) tap boards, is an adaptors that eliminates the need to run high voltage power 120VAC to remote wireless access in order to power RF transmitters/receivers, Ethernet cameras etc. By using Power over Ethernet power taper, all  the installers need is to run a single CAT3, CAT5, CAT5E or CAT6 Ethernet cable that carries both power and data to each remote taper device, therefore decreasing installation costs.



PoE begins with a CAT3, CAT5, CAT5E or CAT6 (fast Ethernet cable) power voltage Injector, that inserts a DC Voltage onto the cable. The Injector is typically installed in the wiring closet near the 24VAC/60Hz (or 28VAC/400Hz) Industrial Ethernet hub or switch.



Any devices that are not PoE Compatible can be converted to Power-over-Ethernet by way of a DC-tap. The DC-tap is a device that converts the AC or DC industrial standard Voltage that has been injected into the CATX cable by the Injector and makes it available to the equipment through the regular DC power jack.

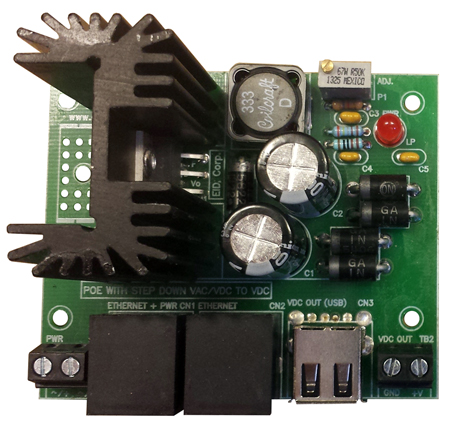

Shown above (Top view) fully configure POE High Current Power supply board with LED power indicator output power via both USB or Terminal Block (TB).





Shown above (front View) fully configure POE High Current Power supply board with LED power indicator output power via both USB or Terminal Block (TB).

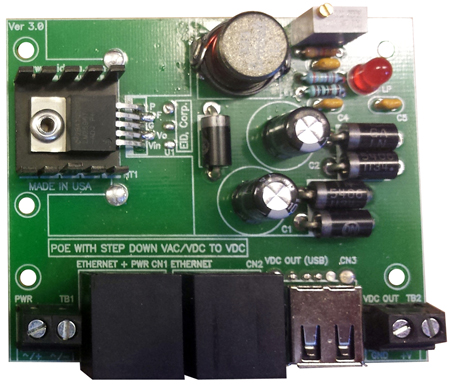

Shown above (front View) fully configure POE Low Current (up to 1A) Power supply board with LED power indicator output power via both USB or Terminal Block (TB).





1. Input AC or DC voltage or POE voltage output

2. Ethernet + Power input (from remote POE injector)

2. Ethernet output (Tapper)

4. USB DC Power output

5. Output DC voltage

6. LED power on indicator

7. Output DC fine tune voltage Adjustment via multi-turn trimmer.





Mounting:



The board is easily mounted via four optional 4-40 screws



POE-SD-TAPER Features



  • Up to 2500mA output.

  • +/-1% voltage stability.

  • Industrial powered from any power source, 12V to 30V AC or DC (standard 24VDC or 24VAC)

  • Also, designed to operate from two 12VDC car batteries

Specifications

  • Power Indicator:                 Red LED

  • Operating Temperature:       -50° C to +90° C

  • Max output current HC:       Up to 2.5A at 12VDC and 2A at 5VDC (High current models)

  • Max output current HC:       Up to 1.2A at 12VDC and 1A at 5VDC (Low current models)

  • Power Connector via:          Input 2P terminal block 12V to 30V DC or AC

  • Ethernet connectors:          Dual RJ45 8-pins Jack

  • Data lines first pair:            Pin 1 and 2

  • Data lines second pair:        Pin 3 and 6

  • CAT5/E Power +VDC:          Pins 4 & 5

  • CAT5/E Power -VDC:           Pins 7 & 8

  • USB                                 5VDC (3.3VDC Optional)

  • Output without USB            2P terminal block 3.3VDC, 5VDC, 9VDC or 12VDC

  • Board Size                         3" * 2.55"

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

POE-SD-TAPER POE Step Down High Current Power supply board Input POE voltage 14V to 30V AC or DC output 12VDC without USB

EID-POE-TAPER-1430-12HC

$111.33

POE-SD-TAPER POE Step Down High Current Power supply board Input POE voltage 14V to 30V AC or DC output 9VDC without USB

EID-POE-TAPER-1230-9HC

$111.33

POE-SD-TAPER POE Step Down High Current Power supply board Input POE voltage 12V to 30V AC or DC outputs 5VDC both USB and Terminal block

EID-POE-TAPER-1230-5HC

$102.33

POE-SD-TAPER POE Step Down High Current Power supply board Input POE voltage 12V to 30V AC or DC outputs 3.3VDC both USB and Terminal block

EID-POE-TAPER-1230-3X3HC

$132.33

POE-SD-TAPER POE Step Down Low Current Power supply board Input POE voltage 14V to 30V AC or DC output 12VDC without USB

EID-POE-TAPER-1430-12LC

$99.33

POE-SD-TAPER POE Step Down Low Current Power supply board Input POE voltage 14V to 30V AC or DC output 9VDC without USB

EID-POE-TAPER-1230-12LC

$99.33

POE-SD-TAPER POE Step Down Low Current Power supply board Input POE voltage 12V to 30V AC or DC outputs 5VDC both USB and Terminal block

EID-POE-TAPER-1230-5LC

$99.33

POE-SD-TAPER POE Step Down Low Current Power supply board Input POE voltage 12V to 30V AC or DC outputs 3.3VDC both USB and Terminal block

EID-POE-TAPER-1230-3X3LC

$99.33

  •
