OEM TRANSDUCER–PCV-ZS  PHASE-CUT to Voltage (PCV) industrial transducer (converter) transmitter. With Zero and Span adjustments and opto-isolated input.



This board offers effective Interface between phase cut controller signal outputs and VFDs, Damper, Magnetic Valves or Actuators with voltage inputs control.



The Phase-cut to voltage interface board is used as an converter module between existing phase-cut controller signal i.e. Klimo/Staefe and controlled devices with a standard 0-10VDC signal. The proportional 0-20VDC, 0-100% phase-cut signal from the controller is converted into a 0-10VDC signal. The board designed to converts Staefe’s phase-cut signal 0-100% to a 0-10VDC output signal to drive: Staefa’s 2-wire valve, VFDs, Belimo's/Landis damper or actuators.



The board has Inputs and outputs short-circuit-proof and protected against polarity reversal. The Phase cut input signal past throw opto isolated stage for maximum isolation between the valve/actuator/pilot-valve and the controller.



The transducer board can be used in retrofit between existing 2-wires phase-cut controllers and a newly designed devices with DC 0-10V (0...10V) input signal.







0...20 (0...100%) Phase-cut signal converted to 0...10V DC signal.

Conveniently front mounted power indicator Led, and both ZERO and SPAN adjustments via multi turn trimmers for field calibration of output signal.



The TRANSDUCER-PCV-ZS board is designed to perform phase-cut to voltage conversion (transducer). If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.



The TRANSDUCER-PCV-ZS is easy to install, setup, and operate. If you want to do professional remote phase-cut to voltage conversion related functions, The TRANSDUCER-PCV-ZS offers the features you need. It can be mounted easily via three 0.125" mounting holes using 4-40 screws.



Simply connect the board to 24VDC or 24VAC connect your Phase-cut source signal i.e. 0 to 20V (0-100%) to the input and our board will convert it single ended Uni-polar signal 0 to 10V DC.

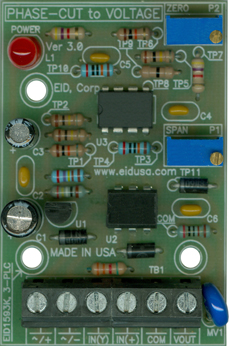

Precision Phase-cut (0-100%) to Voltage (0-10V) Industrial Transducer/Transmitter



1. Power 24V DC or  AC

2. 0-20V Phase-cut 0-100% Input voltage signal.

3. Output voltage.

4. LED power indicator.

5. Output multi-turn trimmer Span adjustment.

6. Output multi-turn trimmer Zero adjustment.



Mounting Option



Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications





The voltage phase-cut to voltage board shown above mounted in EID-1593KBK black ABS plastic instrument enclosure with Din-Rail mounting options



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).



TRANSDUCER-PCV-ZS Features



  • Built-in power LED indicator.

  • 20V phase-cut input 0 to 10V output multi-turn trimmer both Zero and Span adjustments.

  • Power via 24V DC or AC industrial standard.

    •

  • Linear voltage output.

  • On board trimmer facilitates precise Zero calibration of output voltage

  • On board trimmer facilitates precise Span calibration of output voltage

Specifications

  • Input voltage                            20VAC, 60HZ, 0-100% up to 30V DC or AC

  • Input Impedance                       >3K Ohms

  • Output voltage                         Industrial standard 0-10VDC Model depended!

  • PCB material                             FR4

  • Input Filter                               L.P.F. 2Hz

  • Max power consumption              0.5W

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                 20 [V]

  • Power source                            24VAC +/-12%, 50/60Hz, 0.6VA or 24VDC @ 45mA filtered

  • Power indicator                          LED Red

  • Adjustment                               Via trimmer for ZERO & SPAN

  • Mounting                                  Three 0.125” (3.1mm) holes with centers distance of 1.1" (27.9mm)

  • Board dimensions                       1.52" & 2.28" (39.6mm * 57.9mm)

  • Manufactured                           100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

TRANSDUCER-PCV-ZS Phase-Cut (0-20V, 60HZ, 0-100%) to voltage (0 to 10V transducer (converter) w/ terminal-block (6 positions).

EID-CONVER-TER-PCV-0X10-6TB

$125.97

Modified black ABS Plastic Instrument enclosures option

EID-1593kbk

$10.75

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.24

  •
