LINER-L1  Reflective color change line detection interface board transducer with high and low detection



The LINER-L1 board is designed to perform color changes switching conversion. If used properly, it will eliminate the need for acquiring expensive boards, which would otherwise be needed to carry out the same tasks.



The LINER-L1  is easy to install, setup, and operate. If you want to complete professional industrial leveling measuring related functions, the LINER-L1 offers the features you need.



Mounted easily via 0.125" mounting holes using 4-40 screws (optional) and wire via convenient conventional industrial standards cage up terminal blocks (TB).



Simply connect and power the boards of a 5V, connect the reflective infra red IR sensor (optional) and the LINER-L1 will monitor the changes both when the sensor moves forward or backward. Then it automatically changes the output TTL signal.





OPTO up/down line detection transducer shown above, full configuration.



Please drop us a line at HVAC@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--one of our OEM engineers will be happy to help you achieve them.











 Figure A. reflective sensor IR inputs/outputs and power input board shown above



1. IR sensor inputs/outputs (left to right) sensor-in, sensor-in-common-ground, sensor-out, sensor-out-common-ground, board-output-common-ground, board outputs, power (+V) and ground (Gnd) via terminal blocks.





LINER-L1 Sample Application:

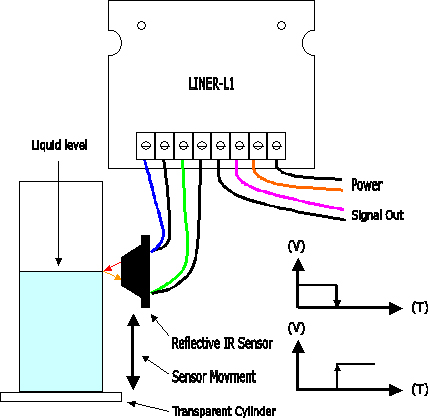

Figure B. application shown above, reflective sensor IR to detect water level





Mounting:

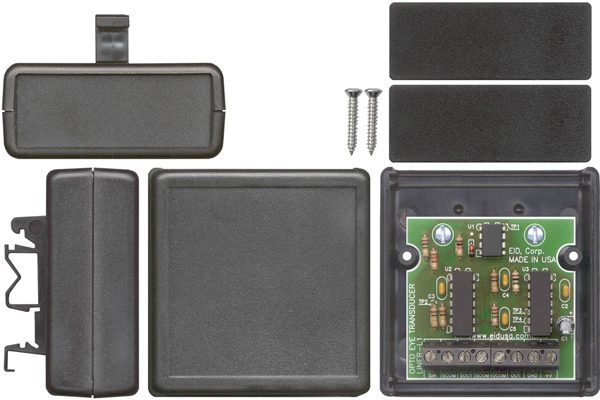

Board, shown above mounted in plastic enclosure (EID-1593 series enclosure) with din-rail-clip (optional).



Note:



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).





LINER-L1 Features



  • Can be customized to accommodate your input to output needs.

  • Designed to operate from 5VDC for level control applications.

Specifications

  • PCB material                             FR4 (UL approved)

  • Max power consumption              0.5W

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                 9 [V]

  • Power source                            12VDC +/-20%

  • Mounting                                  Two/Four 0.125” holes

  • Manufactured                            100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

LINER-L1 Reflective IR signals transducer board

EID-LINER-L1-XX

$49.50

  •
