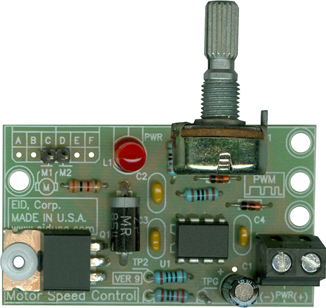

EID-MOSECOLLER Motor Speed Control. Single channel with Pulse Width Modulation (PWM) control Board module.



The MOSECOLLER board is designed to perform PWM switching motor control function.



The board power from industrial industrial 24V AC or DC or 28V AC or DC. 6VDC and 12VDC models are available.



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The MOSECOLLER is easy to install, setup and operate. If you want to do professional PWM motor control switching, The MOSECOLLER offers the features you need.



Mounted easily via four 0.125" mounting holes. or via two 0.125" mounting holes.



Setting the board is simple Just follow these easy steps



1. Connect the Motor (M1 and M2).



2. Connect the board to 24V, 28V DC.



3. Control/Set the motor speed via POT.





Shown above in a standard configuration with Power of 24VDC, PWM 2-99% at 24KHZ



A. External motor connection.



B. External motor connection via bi-directional switch. The voltage polarity of the motor will switch, therefore, its direction will reverse.



MOSECOLLER Features



  • Power via 24V or 28V DC industrial standards.

  • Can be customized to accommodate your power and motor or valve requirements.

  • Power on LED indicator

  • Potentiometer speed settings

Specifications

  • PCB material: FR4

  • Max power consumption: 50W

  • Storage temperature: 40 - 70   [F]

  • Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage: 24 [V]

  • Power source: 24V, 28V VDC current motor depended

  • PWM available @ frequencies of 60Hz, 132Hz, 1.3KHz, 4KHz, 13KHz or 24KHz

  • Mounting: Four/or Two 0.125” holes

  • Manufactured: 100% in U.S.A.

Pricing



* The OEM products described herein, Prices, SKU#, P# are subject to change at any time without notice, including but not limited to products features, specifications, and designs.

Description

SKU #

Price

MOSECOLLER Motor Speed control, PWM, 60Hz, 6VDC

EID-MOSECOL-LER-60HZ-6V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 132Hz, 6VDC

EID-MOSECOL-LER-132HZ-6V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 1.32KHz, 6VDC

EID-MOSECOL-LER-1x32HZ-6V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 4KHz, 6VDC

EID-MOSECOL-LER-4KHZ-6V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 13.2KHz, 6VDC

EID-MOSECOL-LER-13X2KHZ-6V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 24KHz, 6VDC

EID-MOSECOL-LER-24KHZ-6V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 60Hz, 9VDC

EID-MOSECOL-LER-60HZ-9V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 132Hz, 9VDC

EID-MOSECOL-LER-132HZ-9V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 1.32KHz, 9VDC

EID-MOSECOL-LER-1x32HZ-9V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 4KHz, 9VDC

EID-MOSECOL-LER-4KHZ-9V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 13.2KHz, 9VDC

EID-MOSECOL-LER-13X2KHZ-9V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 24KHz, 9VDC

EID-MOSECOL-LER-24KHZ-9V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 60Hz, 12VDC

EID-MOSECOL-LER-60HZ-12V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 132Hz, 12VDC

EID-MOSECOL-LER-132HZ-12V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 1.32KHz, 12VDC

EID-MOSECOL-LER-1x32HZ-12V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 4KHz, 12VDC

EID-MOSECOL-LER-4KHZ-12V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 13.2KHz, 12VDC

EID-MOSECOL-LER-13X2KHZ-12V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 24KHz, 12VDC

EID-MOSECOL-LER-24KHZ-12V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 60Hz, 24VDC

EID-MOSECOL-LER-60HZ-24V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 132Hz, 24VDC

EID-MOSECOL-LER-132HZ-24V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 1.32KHz, 24VDC

EID-MOSECOL-LER-1x32HZ-24V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 4KHz, 24VDC

EID-MOSECOL-LER-4KHZ-24V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 13.2KHz, 24VDC

EID-MOSECOL-LER-13X2KHZ-24V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 24KHz, 24VDC

EID-MOSECOL-LER-24KHZ-24V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 60Hz, 28VDC

EID-MOSECOL-LER-60HZ-28V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 132Hz, 28VDC

EID-MOSECOL-LER-132HZ-28V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 1.32KHz, 28VDC

EID-MOSECOL-LER-1x32HZ-28V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 4KHz, 28VDC

EID-MOSECOL-LER-4KHZ-28V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 13.2KHz, 28VDC

EID-MOSECOL-LER-13X2KHZ-28V-TB2

$75.33

MOSECOLLER Motor Speed control, PWM, 24KHz, 28VDC

EID-MOSECOL-LER-24KHZ-28V-TB2

$75.33

  •
