OEM MODULE – Jim's Low voltage light control with LDR and Timer - industrial dusk to dawn timer controlled low voltage light Board.

This board offers a simple, state-of-the-art, reliable way to control outdoor low voltage lighting both for 12v and 24V LEDs systems.

The MODULE is a Light/Time control for 12V and 24V LEDs inconsequent bulb and LEDs strip up to 300W or up to 1200W with external SSR or Relay optional.

The Jim's LV light control board has build in light sensor (photo-sensitive device); choose from Photo-diode, Cadmium Sulphide (CdS) Photocell and/or Light Dependent Resistor (LDR) for "Dusk to Dawn light control." Additional it has built in long duration timer for auto off few hours after dusk for RV Lighting Applications.

The MODULE, board is designed to perform Light / Dark activated Relay to control you lighting system. If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.

The board is easy to install, setup, and operate it can be mounted easily via four 0.125" mounting holes using 4-40 screws.

Simply connect the board to power 12V or 24V power source  (model depended) and your LED strip or LED or bulb between -/~ and Relay N.O output.

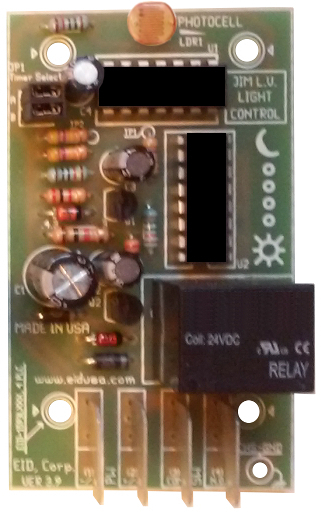

Shown above (model JIM-LVLC24V-300Q) 24VAC (Jumper JP1 configure to 300 minutes timer Ideal for hotel outdoor 24V sign and walls light control.

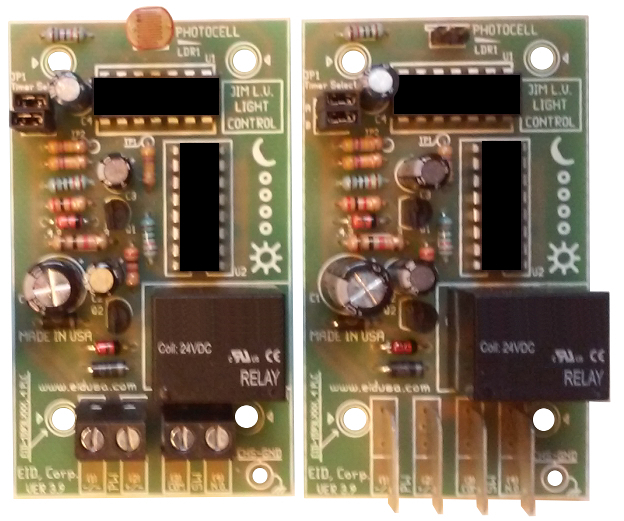

Shown above configured for 24V LEDs lightings applications. Both with Terminal Block (left) and Quick-Fit terminals (QFT) size .187 (right)

Jim's light control with timer

Super precision Dusk to dawn light control with timer. Shown above Left with high current Quick-Fit terminals (QFT), on the right with convenient conventional industrial standards cage up type Terminal Blocks (TB)

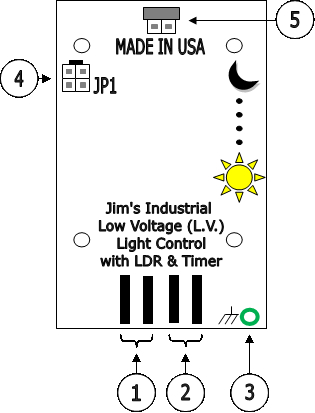

1. Power 12VDC or 24V AC or DC (model depended).

2. Power Switch.

3. CHS-GND.

4. Long duration timer OEM factory settings (model depended)

5. Photocell (LDR CSd) or connector for wired Photocell

Dusk to dawn timer control relay industrial standard configuration models:

Mounting Option

Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications

EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side view

Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).

Specifications

• Max power consumption              0.5W

• Storage temperature                  40 - 70   [F]

• Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

• Mounting                                  Four 0.125” (3.1mm) holes with centers distance of 1.8" (45.7mm)

• Board dimensions                       2.1" & 2.6" (53.3mm * 66.0mm)

• Manufactured                           100% in USA

Pricing

* Prices, SKU#, P# and colors are subject to change without notice.

Jim low voltage light control 12V, 300 minutes timer board with 4 Terminal Blocks.

EID-JIM-LV-LC-12V-300M-4TB

$199.33

Jim low voltage light control 12V, 300 minutes timer board with 4 quick-fit terminals.

EID-JIM-LV-LC-12V-300M-4QFT

$199.33

Jim low voltage light control 24V, 300 minutes timer board with 4 Terminal Blocks.

EID-JIM-LV-LC-24V-300M-4TB

$199.33

Jim low voltage light control 24V, 300 minutes timer board with 4 quick-fit terminals.

EID-JIM-LV-LC-24V-300M-4QFT

$199.33

Modified Translucent blue ABS Plastic Instrument enclosures option

EID-1593LTBU

$15.93

Modified Black ABS Plastic Instrument enclosures option

EID-1593LBK

$15.75

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.24

  ^•
