DRIVER-8CH Industrial Eight Channel Driver board Low signal input and DIN-RAIL enclosure mounting option



The DRIVER-8CH board is designed to drive eight relays or steeper motor signals etc. at 50mA each output.



The DRIVER-8CH module is perfect for running up to 8 tiny dc motor via PWM signals, 8 LEDs, relays and high-power devices up to 400mA and up to 48VDC! The module include build in “suppression diodes” for inductive load etc, PCB inputs terminal block are located the opposite of the outputs terminal block simplify system signaling flow design!



The DRIVER-8CH module has TTL/CMOS/PMOS/DTL compatible inputs.



If used properly, it will eliminate the need for expensive units, which would otherwise be needed to carry out the same tasks.



DRIVER-8CH is easy to install, setup and operate. If you want to do professional driving relay related functions, DRIVER-8CH  offers the features you need. Mounted easily via four 0.125" mounting holes.

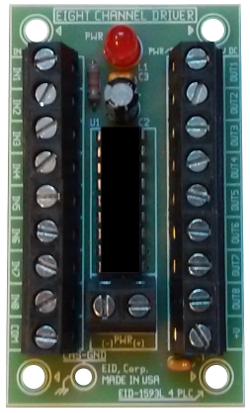

Shown above Eight Channel Driver module with front mounted LED power indicator

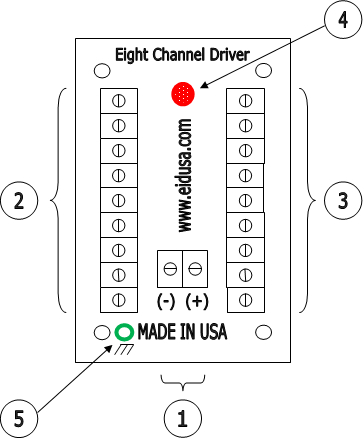

Figure A



1. Input Power

2. Input Channels 1 to 8 and Common Signal Ground.

3. Output Channels 1 to 8 and Common Power.

4. LED Power indicator.

5. Chassis ground wire connection (optional)






DRIVER-8CH Features



  • Built-in LED  poweri ndicator.

  • Also, designed to operate from 12VDC to 48VDC car battery

Specifications

  • PCB material                            FR4

  • Relay switch min. rating            110V/2A other values are available

  • Max power consumption            2W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               12 or 24 [VDC]

  • Power source                          12V battery or 12VDC to 48VDC

  • Relay on  indicator                    LED Green or Red

  • Wires Connections                    Via terminal-block

  • Manufactured                          100% in U.S.A.

Board Dimensions:



Board width, length, height: 1.45" * 2.45" * 0.6"



Pricing



* Prices, P#, SKU# and colors are subject to change without notice.



Description

SKU #

Price

Eight Channel Driver board board. Input signals 3V to 15VDC, Output 10 to 48VDC.

EID-DRIVER-8CH-XX1

$47.94

  •
