Industrial Variable Speed PWM DC motor control module is an Original Manufacturing Engineering (OEM) industrial and commercial rated high performance, high efficiency pulse-width modulation (PWM) DC speed control.



The PIVOT-PBX5 Series of Variable speed PWM DC motor control are a feature rich electronic interface board modules designed to control 12V, 24V or 28V DC motor or other DC fixtures (i.e. valve, average power drive) locally via potentiometer and/or switch, or remotely via isolated signal. The output average current is a linear function of the input signal or potentiometer rotation. If used properly, it will eliminate the need for expensive boards and instruments, which would otherwise be required to carry out the same control tasks, or a Programmable Logic Control (PLC).



Depending on model, the control can drive a 12V, 24V or 28V DC motor, while powered by standard DC voltages a 12V, 24V or 28V. Therefore, it can be powered by car, boat, RV, or airplane DC power source or batteries. It provides smooth control operation with high efficiency in a compact form.



The board is the industrys first high current driver for 12V, 24V and 28V battery packs, bringing unprecedented flexibility to todays advanced industrial battery applications.


It is designed for heavy-duty battery operated permanent magnet DC motor applications, such as small personnel carriers, floor scrubbers, automatic guided vehicles (AVG), mobile robot, laser guided vehicles (LGV), agricultural sprayers and a vast variety of other portable equipment.



Ideal applications also include motor driven applications such as drones, power tools, e-Bikes, e-chair and many more.

The unique designed board allows the batteries in motor driven applications to continue to operate as voltages jump above normal levels and supports battery packs from 10V to 32V.



The board offers the features needed for professional high current DC motor control.



Mounting is easy via four 0.156" mounting holes using 6-32 screws and wire (optional) via convenient conventional industrial standards cage up type Terminal Blocks (TB) and high current Quick-Fit terminals.





Shown above PIVOT-PBX5 Board (front view) Conveniently front mounted "control lines" via Terminal Blocks (TB) and high current Quick-Fit terminals for both DC power in and motor DC connection. As well as on board Fuse.





Shown above PIVOT-PBX5 basic connections illustration





Shown above PIVOT-PBX5, Industrial Variable PWM DC Motor Control panel module with ON/OFF switch, speed adjustment  POT/Knob and  Power indicator LED





Shown above PIVOT-PBX5R, Industrial Variable PWM DC Motor Control panel module with ON/OFF and AUTO/MANUAL switches, speed adjustment POT/Knob and Power and OVER-CURRENT LED indicators





Shown above PIVOT-PBX5D, Industrial Variable PWM DC Motor Control panel module with ON/OFF and FORWARD/STOP/REVERSE switches, speed adjustment POT/Knob and Power and OVER-CURRENT LED indicators



Front Panel Construction

Finish (model depended)

Formed from 16 gauge steel or aluminum.

4 through holes for enclosure mounting.

  • Steel-panel finished in powder coating industrial ANSI 61 gray.

  • Aluminum panel finished in clear anodize.

  • Marking- silk screen marking black.



Panel (only) Part number

Overall Dimensions (inches)

Steel

Aluminum

EID-PIVOT-PB5X-PNL-ST

EID-PIVOT-PB5X-PNL-AL

8

6

0.09

EID-PIVOT-PB5XD-PNL-ST

EID-PIVOT-PB5XD-PNL-AL

8

6

0.09

EID-PIVOT-PB5XR-PNL-ST

EID-PIVOT-PB5XR-PNL-AL

8

6

0.09






Enclosure

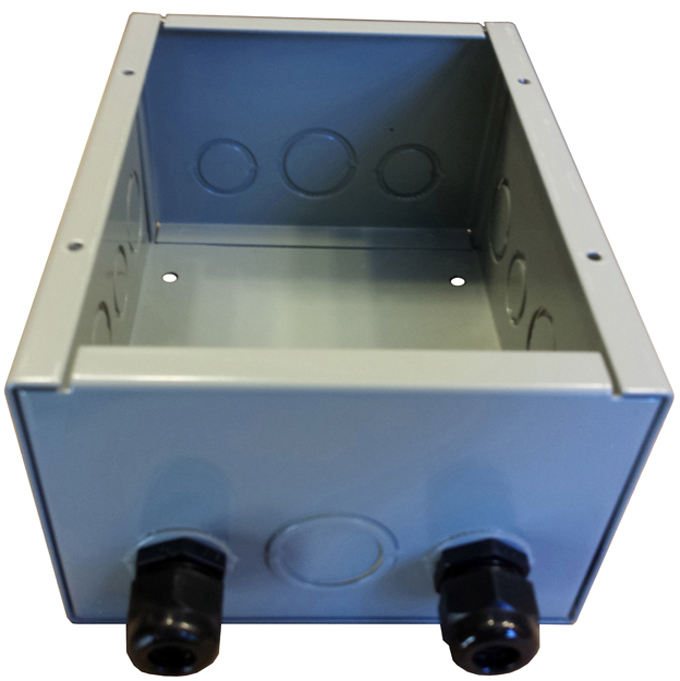

Shown above EID-PIVOT-PBX5's basic general purpose indoor commercial use enclosure (NEMA-1) with two mounted optional black nylon, liquid-tight cord-grip

Enclosure P# EID-PIVOT-CSKO864 and Cord-grip P# EID-1427CG13



Enclosure Standards

Enclosure Construction

Finish

UL-50 Type 1

CSA Type 1

Complies with

  • NEMA Type 1

  • IEC 60529, IP29

Formed and spot welded from 16 gauge steel.

Screws for both, panel cover (4) and grounding (1).

Easily removed knockouts on all 4 sides.

Through holes in back for wall mounting.

Grounding location embossed in body for driver and motor grounding.

Enclosure finished in powder coating industrial ANSI 61 gray.



Enclosure Part number

Overall Dimensions (inches)

EID-PIVOT-CS863

8

6

3

EID-PIVOT-CSKO864

8

6

4






Standard Features:



●      Provides motor with smooth variable speed capability for mobile equipment.

●      Maintains variable speed control as DC voltage decreases or increases by 10%.

●      Adjustable maximum (MAX) speed, minimum (MIN) speed,

●      Adjustable current limit (C.L.), I.R. compensation (I.R.), acceleration (ACC.), and frequency (FREQ).

●      Inhibit terminal permits optional start-stop without changing the main speed potentiometer position.

●      Increased running time of battery operated equipment through high efficiency circuitry.

●      Pulse width modulation (PWM) driver, with on board frequency adjustment.

●      On board protection fuse.

●      Conveniently front mounted Terminal Blocks (TB) and high current Quick-Fit terminals.

●      Conveniently front mounted LED power on indicator.

●      Over-current output port for remote signal or LED indicator.

●      Large front mounted auxiliary heat-sinks for heat distribution.

●      Automatically compensates to allow for declining battery voltage when battery operated equipment is used to power the module.



Control Board Dimensions:



Board width, length, height: 4.275" * 4.100" * 1.700".



Controller Enclosure Dimensions (option):



Board width, length, height: 9" * 6" * 5" (include switch toggle and bottom mounted wire-glens).



Control Board Mouthing Dimensions:



Four (4) mounting holes (.156" Dia.) 3.975" * 3.775" on center.



Note: Use four (4) 6-32 screws and stand-offs to mount the board to the optional panel.



Caution: Do not mount controller where ambient temperature is outside the range of -10 C (15 F) to 45 (115 F). -20C to +50C (-4F to 122F).






Specifications:



Load current (continuous)

12 Amps DC

Motor Speed adjustment

5K Ohms potentiometer or 0 to +10VDC input signal*

Motor Speed range

50 : 1

Overload capacity

200% for 5 seconds; 150% for about one minute

Current limit

Adjustable 100% to 200% of full LED light strip load, up to 200% of control current rating

Acceleration

Adjustable - 0 to 10 seconds

Deceleration

Non-adjustable - half second

Maximum speed

Adjustable - 50 to 100% of base speed

Minimum speed

Adjustable - 0 to 30% of max speed

Connections

POT  via terminal block (14Ga. to 28Ga.) Terminal-Blocks. Power & Motor and Main Switch via .187" Quick-Fit terminals (12Ga. to 16Ga.)

speed regulation (stability)

0.5% of base speed via adjustable current resistance compensation (I.R.) MTT

Operating temperature

-20C to +50C (-4F to 122F)

Board material

FR4 (One sided cupper design for low RFI and EMI)

Internal operating frequency

17KHz to 43KHz via adjustable frequency (FREQ.) MTT**

Internal operating voltage

About 90VDC model dependant

On board fuse

Rated 5A to 10A, model depended!

Power Requirement

12 VDC, 24VDC or 28VDC 10% model dependant at 18A DC min, regulated, 2-wire



*      Refers to EID's line of signal converters interface board for other input (i.e. 4-20mA, 0 -5VDC, 0-30VDC ...)



**    Frequency is about 24KHz where the FREQ MTT is set halfway.




Model and Part Number (P#) Selection:



Board only



Model P#

Input Voltage

OUTPUT Voltage

MAX CONTINUOUS CURRENT

HP

EID-PIVOT-PBX5-A12-B

12 VDC 10%

0 - 12 VDC

12 A

0.2

EID-PIVOT-PBX5-A24-B

24 VDC 10%

0 - 24 VDC

12 A

0.4

EID-PIVOT-PBX5-A28-B

28 VDC 10%

0 - 28 VDC

12 A

0.5



Board with panel



Model P#

Input Voltage

OUTPUT Voltage

MAX CONTINUOUS CURRENT

HP

EID-PIVOT-PBX5-A12-P

12 VDC 10%

0 - 12 VDC

12 A

0.2

EID-PIVOT-PBX5-A24-P

24 VDC 10%

0 - 24 VDC

12 A

0.4

EID-PIVOT-PBX5-A28-P

28 VDC 10%

0 - 28 VDC

12 A

0.5



Board with panel (Remote)



Model P#

Input Voltage

OUTPUT Voltage

MAX CONTINUOUS CURRENT

HP

EID-PIVOT-PBX5R-A12-P

12 VDC 10%

0 - 12 VDC

12 A

0.2

EID-PIVOT-PBX5R-A24-P

24 VDC 10%

0 - 24 VDC

12 A

0.4

EID-PIVOT-PBX5R-A28-P

28 VDC 10%

0 - 28 VDC

12 A

0.5



Board with panel (Direction)



Model P#

Input Voltage

OUTPUT Voltage

MAX CONTINUOUS CURRENT

HP

EID-PIVOT-PBX5D-A12-P

12 VDC 10%

0 - 12 VDC

12 A

0.2

EID-PIVOT-PBX5D-A24-P

24 VDC 10%

0 - 24 VDC

12 A

0.4

EID-PIVOT-PBX5D-A28-P

28 VDC 10%

0 - 28 VDC

12 A

0.5




Description and P#

Price


Board



PIVOT-PBX5-A12-B



PIVOT-PBX5-A24-B



PIVOT-PBX5-A28-B





CALL



CALL



CALL







Board with panel



PIVOT-PBX5-A12-P



PIVOT-PBX5-A24-P



PIVOT-PBX5-A28-P





CALL



CALL



CALL







Board with panel



PIVOT-PBX5R-A12-P



PIVOT-PBX5R-A24-P



PIVOT-PBX5R-A28-P





CALL



CALL



CALL







Board with panel



PIVOT-PBX5D-A12-P



PIVOT-PBX5D-A24-P



PIVOT-PBX5D-A28-P





CALL



CALL



CALL







Aluminum Panel (only)



PIVOT-PBX5-PNL-AL



PIVOT-PBX5D-PNL-AL



PIVOT-PBX5R-PNL-AL





CALL



CALL



CALL







Steel Panel (only)



PIVOT-PBX5-PNL-ST



PIVOT-PBX5D-PNL-ST



PIVOT-PBX5R-PNL-ST





CALL



CALL



CALL







Enclosure (sold separately)



EID-PIVOT-CS863



EID-PIVOT-CSKO864





25.29



25.29

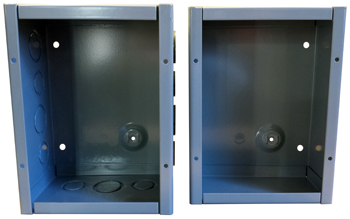

     EID-PIVOT-CSKO863         EID-PIVOT-CS863

Black nylon, liquid-tight cord-grip



P# EID-1427CG13





2.73
