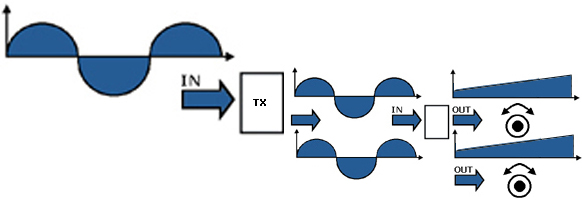

OEM, "High-End", Industrial Adjustable DUAL (2) Output Positive Voltages Power-Supply (Both Adj. outputs 1.25V to 24 VDC) with Heat-Sink and Isolated Power Transformer is an OEM electronics dual power supply board that allows you to connect 110V AC / 60Hz on one side of the board and get dual adjustable DC voltages (VDC) regulated on the other side. Every facility should have a few of these boards handy. The boards will allow you to easily power all your HVAC controller, interface board and low-voltage equipment components (i.e. 3V, 3.3V, 5V, 9V, 10V, 12VDC, 15V, 24VDC, +/-24V, +/-15V...). The Terminal Block TB connector is included and makes it easy to use.







Shown above Model B. with large Heat-Sink and 36VA R.M.S. rated Isolated Power Transformer and Red LED power indicators, ideally for "heavy duty" industrial applications. I.e. 110 VAC to dual 24.00 VDC or  dual 15V or +/-24V or +/-15V, with a fine output voltage adjustment.










Figure A above shown with maximum configuration



1. Output 1 DC voltage.

2. Output 2 DC voltage.

3. Input 110V AC, 60Hx via two Terminal Block (TB) or via wires or via two screw Terminals option.

4. Output 1 & 2 AC voltages.

5. LED Output (Channel) 1 power indicator.

6. Heat-sink Output (Channel) 1.

7. Output 1 DC voltage Adjustment via multi-turn trimmer.

8. LED Output (Channel) 2 power indicator.

9. Heat-sink Output (Channel) 2.

10. Output 1 DC voltage Adjustment via multi-turn trimmer.

11. Isolated Power Transformer.






OEM, Available Isolated Power Transformer:



Transformer Key Features:

  • 4 output voltages to choose from (6 - 36VAC R.M.S.)

  • Six VA size models available from - 1.1 to 36VA

  • High insulation - Hipot of 2,500V RMS.

  • Class B insulation - 130 degrees C.

  • No mounting hardware required on 1.1 and 2.4 VA sizes, two hole mounting on 6, 12 and 20VA sizes, four
    hole mounting on 36VA size (mounting screws not provided). P.C. board mount with industry standard pin spacing.

  • CSA certified (# LR3902) and UL recognized (# E50394).

P#
Single Pri.
115V

Size
VA

Secondary (RMS)

Series

Parallel

EID-164F10

6

10V C.T. @ .6A

5V @ 1.2A

EID-164G10

12

10V C.T. @ 1.2A

5V @ 2.4A

EID-164H10

20

10V C.T. @ 2A

5V @ 4.0A

EID-164J10

36

10V C.T. @ 3.6A

5V @ 7.2A

EID-164F12

6

12.6V C.T. @ .5A

6.3V @ 1.0A

EID-164G12

12

12.6V C.T. @ 1.0A

6.3V @ 2.0A

EID-164H12

20

12.6V C.T. @ 1.6A

6.3V @ 3.2A

EID-164J12

36

12.6V C.T. @ 2.85A

6.3V @ 5.7A

EID-164F16

6

16V C.T. @ .4A

8V @ .8A

EID-164G16

12

16V C.T. @ .8A

8V @ 1.6A

EID-164H16

20

16V C.T. @ 1.25A

8V @ 2.5A

EID-164J16

36

16V C.T. @ 2.25A

8V @ 4.5A

EID-164F20

6

20V C.T. @ .3A

10V @ .6A

EID-164G20

12

20V C.T. @ .6A

10V @ 1.2A

EID-164H20

20

20V C.T. @ 1A

10V @ 2.0A

EID-164J20

36

20V C.T. @ 1.8A

10V @ 3.6A

EID-164F24

6

24V C.T. @ .25A

12V @ .5A

EID-164G24

12

24V C.T. @ .5A

12V @ 1.0A

EID-164H24

20

24V C.T. @ .8A

12V @ 1.6A

EID-164J24

36

24V C.T. @ 1.5A

12V @ 3.0A

EID-164F28

6

28V C.T. @ .2A

14V @ .4A

EID-164G28

12

28V C.T. @ .42A

14V @ .84A

EID-164H28

20

28V C.T. @ .7A

14V @ 1.4A

EID-164J28

36

28V C.T. @ 1.3A

14V @ 2.6A

EID-164F36

6

36V C.T. @ .17A

18V @ .34A

EID-164G36

12

36V C.T. @ .35A

18V @ . 7A

EID-164H36

20

36V C.T. @ .55A

18V @ 1.1A

EID-164J36

36

36V C.T. @ 1A

18V @ 2.0A




Mechanical & Schematic Data:



*** On board industrial standard power transformer mounting PCB holes.



Mounting Holes (162 & 164)

(VA)
Size

Dimensions (Inches)

Mtg.
Screw

lbs.

L

W

H

A

B

C

M

N

P

6

1 5/8

1 5/16

1 5/16

.25

.35

1.28

1 1/16

--

--

#4

0.44

12

1 7/8

1 9/16

1 1/2

.30

.40

1.41

1 1/4

--

--

#4

0.70

20

2 1/4

1 7/8

1 7/16

.30

.40

1.60

1 1/2

--

--

#4

0.80

36

2 5/8

2 3/16

1 9/16

.40

.40

1.85

--

1 3/4

2 3/16

#6

1.10



Description and SKU#

Price


110V AC to 1.25-24VDC DUAL PS, Input 110V & dual adj. outputs  1.25V to +24V low current, w/LM317 TO-220. Model A.



EID-K-VRG-DUAL-125X-24V-1AHSTX







197.22



110V AC to 1.25-24VDC DUAL PS, Input 110V & dual adj. outputs 1.25V to +24V high current, w/LM338 TO-220 and LED power indicator. Model B.



EID-K-VRG-DUAL-125X-24V-2AHSTX









217.89



110V AC to DUAL 24VDC PS, Input 110V & dual fine adj. outputs +24V high current, w/LM338 TO-220 and LED power indicator. Model B.



EID-K-VRG-DUAL-XXXX-24V-2AHSTX









237.87



 •
