OEM - Industrial Din-Rail Mounted Set point Potentiometer Module with optional Chassis Ground Connection screw.

This board offers a simple, state-of-the-art, reliable way to mount single-turn rotary linear Potentiometers to rail.

Shown above with 5K Ohms single-turn rotary linear potentiometers (POT) configuration. Ideal for controlling motor speed set point 0 to 10V, 0 to 5V signal level etc.

The MODULE, Set point Potentiometer board is designed to perform set-point value potentiometer, to set set-points individually, resistance value 5K Ohms. If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.

The MODULE is easy to install, setup, and operate. If you want to do professional scientific signal set point related functions, The MODULE offers the features you need. It can be mounted easily via on board mounded Din-Rail-Clip.

Industrial single-turn rotary linear potentiometers (POT) with din-rail clip

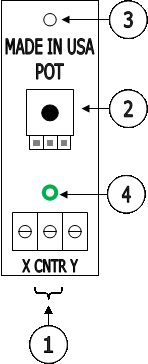

1. Potentiometer Connections (Terminal X, Center and Terminal Y)

2. On board front mounted Potentiometer

3. Din-Rail-Clip Screw

3. Din-Rail-Clip Screw with Chassis Ground (CHS-GND) optional location

Voltage divider industrial standard configuration models:

Mounting Option

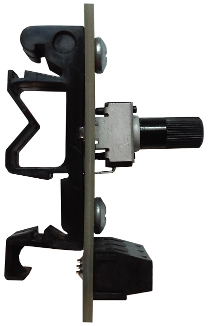

Simply snap the Din-Rail mounted module to Din-rail mounted in your NEMA 4 box (enclosure) for watertight applications.

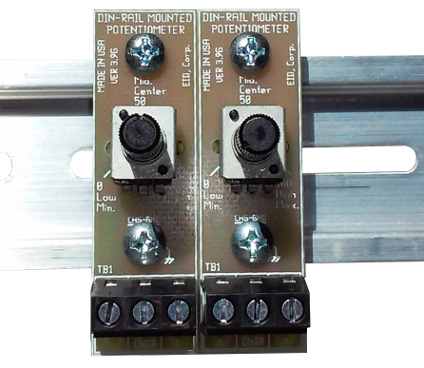

Shown above side by side  for dual set-point functions mounted on Din-Rail (optional)

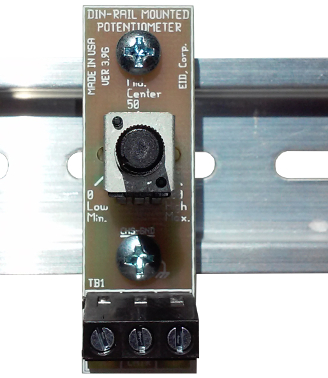

Shown above single set-point function, mounted on Din-Rail (optional)

35mm Aluminum Din-Rail is sold separately (for demonstration only).

Specifications

• Max power consumption              0.5W

• Chassis Ground Connection          Yes (on board Optional)

• Storage temperature                  40 - 70   [F]

• Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

• Mounting                                  DIN-RAIL-CLIP or Screw

• Board dimensions                       2.15" & 0.675" (54.6mm * 17.1mm)

• Manufactured                           100% in USA

Pricing

* Prices, SKU#, P# and colors are subject to change without notice.

DIN-RAIL-MOUNTED-POT MODULE DRPOT-B-5K0, 5K single-turn rotary linear potentiometers with terminal-block (3 positions) and Din Rail Clip.

EID-DIN-RAIL-POT-B-5K0-3TB

$27.33

DIN-RAIL-MOUNTED-POT MODULE DRPOT-B-5K0W, 5K single-turn rotary linear potentiometers with 6" wires (3) and Din Rail Clip.

EID-DIN-RAIL-POT-B-5K0-3W6IN

39.33

DIN-RAIL-MOUNTED-POT MODULE DRPOT-A-5K0, 5K single-turn rotary Log potentiometers with terminal-block (3 positions) and Din Rail Clip.

EID-DIN-RAIL-POT-A-5K0-3TB

$33.33

DIN-RAIL-MOUNTED-POT MODULE DRPOT-A-5K0W, 5K single-turn rotary Log potentiometers with 6" wires (3) and Din Rail Clip.

EID-DIN-RAIL-POT-A-5K0-3W6IN

$45.33

DIN-RAIL-MOUNTED-POT MODULE DRPOT-B-10K0, 10K single-turn rotary linear potentiometers with terminal-block (3 positions) and Din Rail Clip.

EID-DIN-RAIL-POT-B-10K0-3TB

$30.93

DIN-RAIL-MOUNTED-POT MODULE DRPOT-B-10K0W, 10K single-turn rotary linear potentiometers with 6" wires (3) and Din Rail Clip.

EID-DIN-RAIL-POT-B-10K0-3W6IN

42.36

DIN-RAIL-MOUNTED-POT MODULE DRPOT-A-10K0, 10K single-turn rotary Log potentiometers with terminal-block (3 positions) and Din Rail Clip.

EID-DIN-RAIL-POT-A-10K0-3TB

$54.12

DIN-RAIL-MOUNTED-POT MODULE DRPOT-A-10K0W, 10K single-turn rotary Log potentiometers with 6" wires (3) and Din Rail Clip.

EID-DIN-RAIL-POT-A-10K0-3W6IN

$67.32

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.95

  ^•
