OEM CONVERTER – VMA420-1-KX voltage (XV) to current (C) converter (transducer) transmitter.

This board offers effective, state-of-the-art, reliable linear control of HVAC's 4-20mA dampers and valves.

The CONVERTER-VMA420-1KX voltage to current converter is a signal control (Proportional) 0-20mA or 4-20mA voltage to current transducer board for HVAC (Heating, Ventilation and Air Conditioning), electro-hydraulic and servo electronics; actuator, dampers, bleed pilot valve, globe valves, butterfly valves, plug valves, dampers and more.

The CONVERTER-VMA420-1-KX board is designed to perform voltage to current conversion (transducer). If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.

The CONVERTER-VMA420-1KX  is easy to install, setup, and operate. If you want to do professional remote voltage measurement related functions, The CONVERTER-VMA420-1KX offers the features you need. It can be mounted easily via four 0.125" mounting holes using 4-40 screws.

Simply connect the board to 24VDC or 24VAC connect your voltages source 0-10V to the input and our board will convert it to 0-20mA. Where; for input voltage 2-10V the outputs current is 4-20mA.

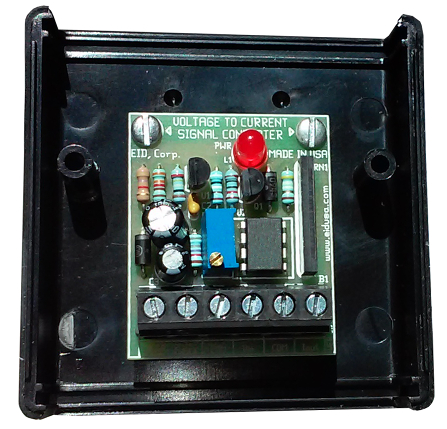

Shown above, Model 1-KX, single channel voltage (0/2-10VDC signal) to 2 current outputs (0/4-20mA) converter/splitter board, with 6 terminal block, power of 24V or 28V AC or DC

The CONVERTER – VMA420-1K transducer board is an accurate, linear, and an efficient way to convert industrial standards voltage (input DC voltage models) 0 to 10V, 2 to 10V, 0mV to 1.2V, 66mV to 1.2V,  0mV to 2V, 400mV to 2V,0-5V, 1 to 5V, 0-15V, 3 to 15V, 0-24V, 4.8 to 24V into industrial standards (output current float on 16-20V DC) current 0 to 20mA, 4 to 20mA signals.... See below table "voltage to current industrial standard configuration models".

Note: Using industrial standard 249 Ohms 1% resistor on the meter side (deferential input preferred) will produce 0 to 5V for 0-20mA or 1 to 5V for 4 to 20mA. Using 499 Ohms 1% on the remote side will produce 0 to 10V and 2 to 10V.

Channel 1: Input Voltage (i.e. 0-10V signal) - Output Current (i.e. 0-20mA) with linear adjustment

or

Channel 1 : Input Voltage (i.e. 2V-10V DC signal) - Output Current (i.e. 4-20mA) with linear adjustment

Dual Voltage to current (4-20 mA) industrial standard configuration models:

Mounting Option

Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications

EID-1593KBK Black ABS plastic instrument enclosure with Din-Rail (side or back) mounting options

Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).

CONVERTER-VMA420-KX Features

• Built-in power LED indicator.

• 10V input 20mA output multi-turn trimmer adjustment.

• Power via 24V DC or AC industrial standard.

• Converts 0-10VDC analog Voltages to 0-20mA or

• Converts 2-10VDC analog Voltages to 4-20mA.

• Can be customized to accommodate your input voltage requirement.

• Industrial Standard output of 4-20mA makes the CONVERTER ideal for remote sensing applications.

• Linear current output.

• Current output rated up to 25mA.

• On board trimmer facilitates precise calibration of output current (10V input to 20mA output)

Specifications

• Input voltage                            0-10VDC

• Input Impedance                       >100K Ohms

• Output voltage                         Industrial standard 12-18VDC for driving long distance wires

• Output Current                         0 – 20mA standard, calibrated for 4-20mA with a 2 – 10VDC input signal

• PCB material                             FR4

• Input Filter                               L.P.F. 2Hz

• Max power consumption              0.5W

• Maximum load:                          Max load 600 Ohms

• Storage temperature                  40 - 70   [F]

• Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

• Low board DC voltage                 9 [V]

• Power source                            24VAC +/-12%, 50/60Hz, 0.6VA or 24VDC @ 45mA filtered

• Power indicator                         LED Red

• Adjustment                              Via trimmer for 20mA output @ 10VDC input or 10mA @ 5V

• Mounting                                 Two 0.125” (3.1mm) holes with centers distance of 1.825"

• Board dimensions

• Manufactured                           100% in USA

Pricing

* Prices, SKU#, P# and colors are subject to change without notice.

CONVERTER-VMA420-1-KX Voltage (2V to 10V) to current (4mA to 20mA) converter with terminal-block (6 positions).

EID-CONVER-TER-KX-VC420-6TB

$99.75

CONVERTER-VMA420-1-KX voltage (66.7mV to 1.2V) to current (4mA to 20mA) converter with terminal-block (6 positions).

EID-CONVER-TER-KX-VC420-1-6TB

$111.33

CONVERTER-VMA420-1-KX voltage (400mV to 2V) to current (4mA to 20mA) converter with terminal-block (6 positions).

EID-CONVER-TER-KX-VC420-2-6TB

$111.33

CONVERTER-VMA420-1-KX voltage (1V to 5V) to current (4mA to 20mA) converter with terminal-block (6 positions).

EID-CONVER-TER-KX-VC420-5-6TB

$111.33

CONVERTER-VMA420-1-KX voltage (3V to 15V) to current (4mA to 20mA) converter with terminal-block (6 positions).

EID-CONVER-TER-KX-VC420-15-6TB

$111.33

CONVERTER-VMA420-1-KX voltage (4.8V to 24V) to current (4mA to 20mA) converter with terminal-block (6 positions).

EID-CONVER-TER-KX-VC420-24-6TB

$111.33

Modified black ABS Plastic Instrument enclosures option

EID-1593KBK

$14.94

Modified Translucent blue ABS Plastic Instrument enclosures option

EID-1593KTBU

$15.75

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.24

Remote load resistor 249 Ohms .25W, 1%

EID-R-025-249-1

$1.2

Remote load resistor 249 Ohms .50W, 1%

EID-R-050-249-1

$2.1

 ^•
