OEM TRANSDUCER–SEVMA420-ZSG4 - Quad Single Ended Voltage (SEV) to current (C) industrial supper  transducer (converter) transmitter. With per channel Zero and Span adjustments.

This board offers effective, state-of-the-art, reliable linear control of HVAC's 4-20mA dampers and valves. Commonly utilized as the heart of 420 Quad In-Line Amplifier 420DILA.





QUAD 4-20mA Outputs, Splitter, Re-transmitter, Duplicator Super Transducer





QUAD Channels 4-20mA Outputs, 0-10V, 0-20mA Inputs



The TRANSDUCER-SEVMA420-ZSG4 Quad input voltage to Quad outputs current converter is a signal control (Proportional) voltage to current 4-20mA super transducer board for HVAC (Heating, Ventilation and Air Conditioning), electro-hydraulic and servo electronics; actuator, dampers, bleed pilot valve, globe valves, butterfly valves, plug valves, dampers and more.



The TRANSDUCER-SEVMA420-ZSG4 board is designed to perform Quad voltage to current conversion (transducer). If used properly, it will eliminate the need for an expensive four boards, which would otherwise be needed to carry out the same tasks.



The TRANSDUCER-SEVMA420-ZSG4  is easy to install, setup, and operate. If you want to do professional Quad remote voltage measurement related functions, The TRANSDUCER-SEVMA420-ZSG4 offers the features you need. It can be mounted easily via four 0.125" mounting holes using 4-40 screws.



Simply connect the board to 24VDC or 24VAC connect your voltage source i.e. 0-10V and 0-24V to the inputs and our board will convert it into four 4-20mA individual outputs.



The TRANSDUCER – SEVMA420-ZSG4 transducer board is an accurate, linear, and an efficient way to convert up to four industrial standards voltage (input DC voltage models) 0 to 10V, 0 to 1V, 0 to 2V, 0 to 2.5V, 0 to 3V, 0 to 4.096V, 0-5V, 0 to 10V, 0-15V, 0 to 20V, 0-24V, 0 to 30V into four industrial standards outputs (current float on 16-20V DC) current 4 to 20mA signals.... See below table "voltage to current industrial standard configuration models".



When TRANSDUCER-SEVMA420-ZSG4 used as a signal to 4 outputs; Converter, Splitter or Re-transmitter (1X2, 2X2, 1X3, 1X4):

  • Splits 1 input voltage (0-10v, 0-5V, 024V…) or current (0-20mA) signal into 2 independent 4-20mA current outputs, or voltage (2-10V, 1-5V…).

  • Splits 1 input voltage (0-10v, 0-5V, 024V…) or current (0-20mA) signal into 3 independent 4-20mA current outputs, or voltage (2-10V, 1-5V…).

  • Splits 1 input voltage (0-10v, 0-5V, 024V…) or current (0-20mA) signal into 4 independent 4-20mA current outputs, or voltage (2-10V, 1-5V…).

  • Splits 2 input voltage (0-10v, 0-5V, 024V…) or current (0-20mA) signal into 2 independent 4-20mA current outputs, or voltage (2-10V, 1-5V…).

  • Scale 4 individual input 0-20mA signals to 4 individual outputs of 4-20mA. Each output signal with its own Zero and Span Adjustments.

When TRANSDUCER-SEVMA420-ZSG4 used as a signal to 4 outputs; Scaling (1X2, 2X2, 1X3, 1X4):

  • Scale input 0-20mA signal to 4 individual outputs of 4-20mA. Each output signal with its own Zero and Span Adjustments.

  • Scale 4 individual input 0-10V signals to 4 individual outputs of 4-20mA. Each output signal with its own Zero and Span Adjustments.

0-10V or 0-20mA analog linear input signal duplicator/splitter/signal-retransmitted; This board/module is designed to duplicate and or split a linear single 0-20mA or 0-10V input signal into two, three or four separate 4-20mA or 2-10V linear output signals. Separate calibration adjustments (ZERO AND SPAN) are provided for each output channel independently.



Many models are available-- I.e. 0 to 30V input signal to 4-20mA output for your battery voltage remote monitoring (up to 4 miles away!). 0 to 3.3V input signals to 4-20mA outputs for remote underwater robot steering and communications.



If you can’t find the model that fit your application specification, simply ask one of our sale representatives to build you new OEM part number. This product can be customized as an OEM with your logo/part number, watertight enclosure with cable gland, and DIN-RAIL.



Note: Using industrial standard 249 Ohms 1% resistor on the meter side (deferential input preferred) will produce 1 to 5V for 4 to 20mA. Using 499 Ohms 1% on the remote side will produce 2 to 10V. Or use our 4-20mA current to differential input voltage transducer to convert it to you desire voltage ranges. See links: Current to Voltage Converter and Current to Voltage Transducer.




Input - Output Channel 1 to 4 with individual ZERO AND SPAN linear adjustment:





Two different inputs - Split each to Two Outputs. Channel 1 to 1 & 2 and Channel 2 or 3 or 4 to 3 & 4  with individual ZERO AND SPAN linear adjustment:





Split/Convert One input - to All Outputs with individual ZERO AND SPAN linear adjustment:

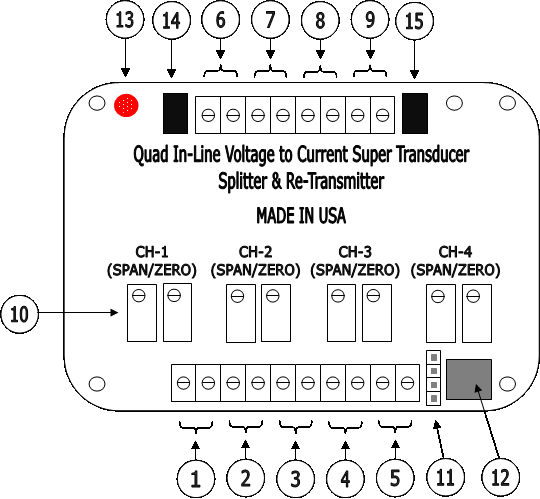

precision In-line Quad Voltage-to-Current (4-20mA) Super Transducer/Transmitter/Splitter/Re-Transmitter



1. Power 24V or 28V DC or  AC

2. Input 1 voltage.

    Note: Available in many input voltage configuration ranges (0 - 1V, 2V, 2.5, 3, 4.096, 5V, 10V, 15V, 24V...).

3. Input 2 voltage.

    Note: Available in many input voltage configuration ranges (0 - 1V, 2V, 2.5, 3, 4.096, 5V, 10V, 15V, 24V...).

4. Input 3 voltage.

    Note: Available in many input voltage configuration ranges (0 - 1V, 2V, 2.5, 3, 4.096, 5V, 10V, 15V, 24V...).

5. Input 4 voltage.

    Note: Available in many input voltage configuration ranges (0 - 1V, 2V, 2.5, 3, 4.096, 5V, 10V, 15V, 24V...).

6. Output 1 current 4-20mA.

7. Output 2 current 4-20mA.

8. Output 3 current 4-20mA.

9. Output 4 current 4-20mA.

10. Channel 1 to 4  0V - input 4mA output multi-turn trimmer Zero adjustment.

     Channel 1 to 4 - input 20mA output multi-turn trimmer Span adjustment.

11. Input cross JP1 and JP2 other side on PCB

12. Input Current load resistors optional and JP1/2 input combo (1X2, 2X2, 1X3, 1X4...)

13. LED power indicator.

14. Optional Output load resistor channels 1 & 2

15. Optional Output load resistor channels 3 and 4




The Voltage to Current Supper Transducer is a 4 channels, low cost, precision, 4mA to 20mA current outputs driver districted hardware module. It targets many applications in PLC and industrial process control. Model dependent (see table below), the analog inputs to the board is provided from both, low/high and/or mixed analog voltage signals.





OEM Model G4 SMT



Quad voltage to current (4-20 mA) industrial standard configuration models:



Model #

Input Voltage 1 to 4

Output Current 1 to 4

EID's OEM P#

VC420-G4-1

0-1V

4-20mA

EID-CONVER-TER-VC420-G4-1-18TB









VC420-G4-2

0-2V

4-20mA

EID-CONVER-TER-VC420-G4-2-18TB









VC420-G4-2X5

0-2.5V

4-20mA

EID-CONVER-TER-VC420-G4-2X5-18TB









VC420-G4-3

0-3V

4-20mA

EID-CONVER-TER-VC420-G4-3-18TB









VC420-G4-4X0496

0-4.096V

4-20mA

EID-CONVER-TER-VC420-G4-4X096-18TB









VC420-G4-5

0-5V

4-20mA

EID-CONVER-TER-VC420-G4-5-18TB









VC420-G4-10

0-10V

4-20mA

EID-CONVER-TER-VC420-G4-10-18TB









VC420-G4-15

0-15V

4-20mA

EID-CONVER-TER-VC420-G4-15-18TB









VC420-G4-24

0-24V

4-20mA

EID-CONVER-TER-VC420-G4-24-18TB









VC420-G4-30

0-30V

4-20mA

EID-CONVER-TER-VC420-G4-30-18TB



VC420-G4SMT-10

0-10V

4-20mA

EID-CONVER-TER-VC420-G4SMT-10-18TB











Example, Module Configurations:



Current Input 0-20mA,four 4-20mA outputs. (current to current splitter).



Current Input 0-20mA, one 2-10V, one 4-20mA, one 4-20mA and one 1-5V Outputs.



Voltage Input 0-10V, four 4-20mA outputs (voltage to current splitter).



Voltage Input 0-10V, one 0-10V, three 4-20mA Outputs



Voltage Input 0-24V, two 0-10V, two 4-20mA Outputs



Current Input 0-20mA, four 4-20mA outputs.



Voltage Input 0-10V, four 4-20mA different outputs (triple channels voltage to current).



Note: For different input voltages kindly email sales@eidusa.com for Part number.






TRANSDUCER-SEVMA420-ZSG4 Features



  • Built-in power LED indicator.

  • Quad 10V input 20mA output multi-turn trimmer both Zero and Span adjustments.

  • Power via 24V DC or AC industrial standard.

  • Converts Quad 0-10VDC analog Voltages to 4-20mA or

  • Can be customized to accommodate your input voltage requirement.

  • Industrial Standard outputs of 4-20mA makes the TRANSDUCER ideal for remote sensing applications.

  • Quad linear current output.

  • Per Channel on board trimmer facilitates precise Zero calibration of output current (0V input to 4mA output)

  • Per Channel on board trimmer facilitates precise Span calibration of output current (10V input to 20mA output)

Specifications

  • Input voltage                            0-30VDC, Model depended!

  • Input Impedance                       >10K Ohms, Model depended!

  • Output voltage                         Industrial standard 12-22VDC for driving long distance wires (up to mile)

  • Output Current                         standard, calibrated for 4-20mA with a 0 – 10VDC input signal

  • PCB material                             FR4

  • Input Filter                               L.P.F. 2Hz

  • Max power consumption              0.5W

  • Maximum load:                          Max load 600 Ohms

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                 21 [V]

  • Power source                            24VAC +/-12%, 50/60Hz, 0.6VA or 24VDC @ 45mA filtered

  • Power indicator                          LED Red

  • Adjustment                               Via trimmer for 20mA output @ 10VDC input and  4mA @ 0V

  • Mounting                                  Four 0.125” (3.1mm) holes with centers distance

  • Board dimensions                       Model G4 3.7" & 3.650" and Model G4SMT 3.9" & 2.650"

  • Manufactured                           100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 1V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-1-18TB

$439.93

TRANSDUCER-SEVMA420-ZSG4 voltage (0V to 2V) to current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-2-18TB

$439.93

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 2.5V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-2X2-18TB

$439.93

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 3V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-3-18TB

$439.93

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 4.096V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-4X049-18TB

$439.93

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 5V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-5-18TB

$439.93

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 10V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-10-18TB

$413.92

TRANSDUCER-SEVMA420-ZSG4SMT Quad voltage (0V to 10V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions). SMT/SMD OEM Vertion

EID-CONVER-TER-VC420-G4SMT-10-18TB

$499.95

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 15V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-15-18TB

$439.93

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 24V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-24-18TB

$439.93

TRANSDUCER-SEVMA420-ZSG4 Quad voltage (0V to 30V) to Quad current (4mA to 20mA) super transducer (converter) with terminal-block (18 positions).

EID-CONVER-TER-VC420-G4-30-18TB

$439.93

Remote load resistor 249 Ohms .25W, 1%

EID-R-025-249-1

$1.2

Remote load resistor 499 Ohms .25W, 1%

EID-R-025-499-1

$1.2

Remote load resistor 249 Ohms .50W, 1%

EID-R-050-249-1

$2.1

  •
