TEMPER–THR and TEMPER-3XT temperature display Interface Boards.



Both the TEMPER – THR and the TEMPER-3XT boards are designed to perform linear temperature display on 2 digit seven segments display.



The high performance display board power from industrial standard 24V AC or DC, or 7-24CV AC or DC.



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The TEMPER-THR/3XT are easy to install, setup and operate. If you want to perform  professional analytical temperature measurement functions such as water treatment facilities, oil drilling, well measurements, remote lake water analysis, the TEMPER-THR/3XT offers the features you need.



Mounted easily via 0.125" mounting holes using 4-40 screws (optional) and wire via convenient conventional industrial standards cage up terminal blocks (TB). Or via our modified enclosure with din-rail EID-1593LBK and EID-1427DIN (both sold separately).



The TEMPER-THR use Steinhart-Hart equation to convert 10K Ohms NTP curve 3 thermistor resistance into quantified temperature measurement with high accuracy. Automatically present the readings on a bright two digit seven segments display. Where, the TEMPER-3XT use industrial standard temperature sensor measurements temperature to voltage transducer) and automatically displays it.



One can configure the boards to display degrees C or F (optional) Additionally, one can configure the board to display readings with or without decimal point. Ideal for room monitoring and in-line temperature measurements.



Connecting the board is simple, just follow these easy steps:



1. Set with/without decimal point reading.

2. Connect the board to 7 to 24VDC or 24VAC.

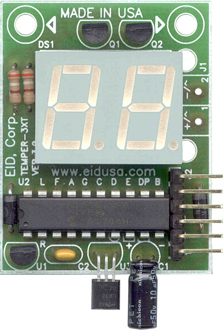

Shown above in a standard configuration

for room temperature monitoring with LM34 sensor mounted on the front (optional)

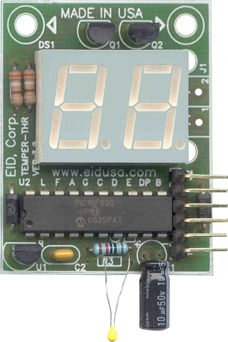

Shown above in a standard configuration

with Thermistor (optional) temperature monitoring



Please drop us a line at sales@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important-- one of our engineers will be happy to help you achieve them.

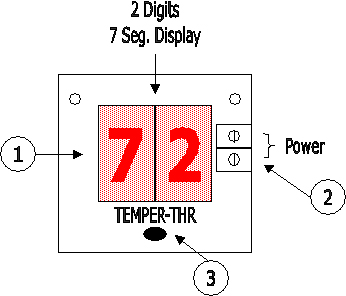

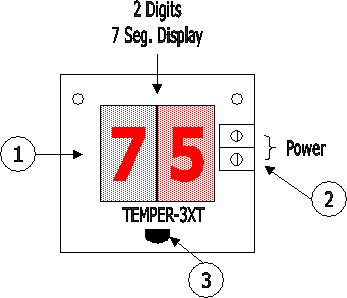

Figure A. left with LM 34 or LM35 sensor  & Figure B. Right with 10K thermistor sensor



1. 2 digit automatic seven segments display.

2. Power input.

3. Temperature sensor.







Shown above enclosed with DIN-Rail mount (sold separately).





INTERFACER-AWSR1 Features



  • Can be customized to accommodate your input sensor requirement.

Specifications

  • PCB material: FR4

  • Max power consumption:            1W

  • Storage temperature:                 40 - 70   [F]

  • Operating temperature:               32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltages:              3, 6, 18 and 24 [V]

  • Power source:                           24VAC +/-5%, 50/60Hz, 1.7VA or 24VDC 1.4VA

  • Mounting:                                 Two 0.125” holes with centers distance of 1.1"

  • Manufactured                           100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

TEMPER-THR 2 digit 7 Seg. thermistor thermometer display board

EID-DSP-2DTEMPER-THR10K-C3

$75.39

TEMPER-3XT 2 digit 7 Seg. LM34 IC thermometer display board

EID-DSP-2DTEMPER-ICLM34-XX

$82.39

  •
