9 Volts battery voltage simulator "eliminator". This 9V voltage regulator Kit is an Electronics board that allows you to connect between 11 to 16V DC or AC (regulated, DC or not AC) in one side of the board and get 9V DC regulated on the other side. Stop paying for batteries again and again...



The 9 volts battery simulator "eliminator" helps you power any device that requires 9V battery. Replace your 9V Nickel-Mh, 9V Nickel-Cad, 9V Alkaline, and regular 9V battery with this unique kit and save...



The board can drive up to 9V DC @ 500mA.



No more need for 9V batteries





Kit Includes:

  • LM7809                  Voltage Regulator     1pc.

  • 0.1MF                    Capacitor                2pc.

  • 100MF                   Capacitor                1pc.

  • 47MF                     Capacitor                1pc.

  • 1N4001                  Diode                      4pc.

  • 9V battery clips       Connector               1pc.

  • 4-40 * 1/4" screws                               2pc.

  • 2.5mm Power Jack                                1pc. option

  • Enclosures mounting screws                   2pc. option

  • Pre-drilled 4 pc. ABS plastic enclosure      1pc. option

  • PCB                                                   1pc.

Note: Enclosure (P#EID-1593KBK) sold separately plastic enclosure

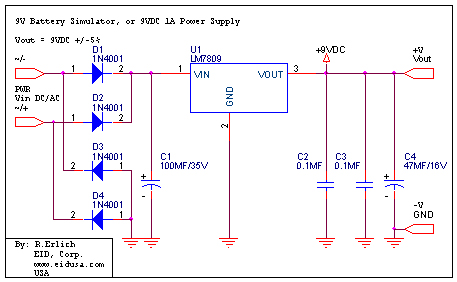

Schematic:







Enclosure pad printing with your logo and/or art works are available for our OEM customers.

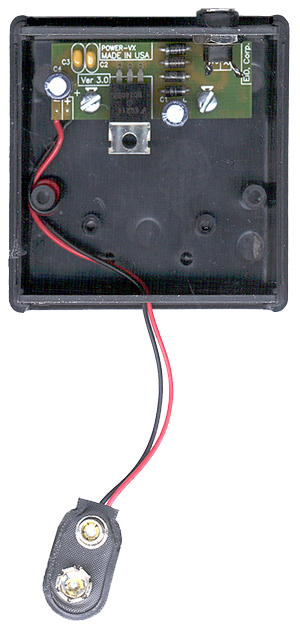

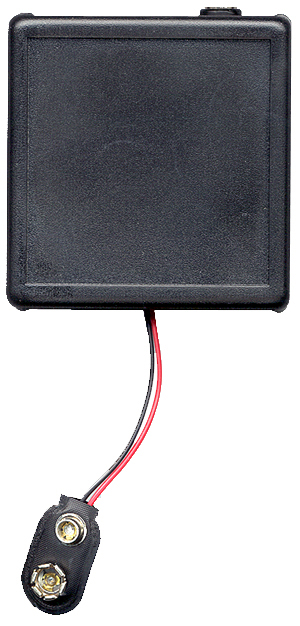

9V simulator kit fully assembled picture.



Please be advised that plastic enclosure, mounting screws, input-connector and jack are sold separately.





Price


Battery simulator kit, Input up to 16V DC output  +9V /0.5A

EID-K-VRG-09V-BATS-ASM Fully assembled

EID-K-VRG-09V-BATS-KIT Kit







33.33

24.99

EID-K-VRG-XXV-BATS-PCB PCB Only 7.99



  •
