The Pulse Type Transformers BA to BE series. P.C. board mount, pulse encapsulated transformers



630 Picture


630 Series

640 Picture



640 Series



Key Features:

  • These transformers are fully encapsulated in a high grade black molded case with a UL94V-O rating.

  • They are intended mainly for thyristor / triac triggering applications.

  • All units are voltage proof tested between windings at 2500V RMS for 1 minute, for a working voltage rating maximum of 440V RMS.

  • Transformers with three or more windings can be series connected to obtain alternative ratios. (ie...a 1:1:1 type may be series connected by linking pins 4 & 5 in which case 3-6 are used as the primary winding to obtain a ratio of 2:1 etc.)

P#

Turns Ratio

Primary

Leakage Inductance uH (max)

Capacity pf. (max)

D.C. Winding Resistance (ohms)

Inductance mH (min.)

ET Constant V uS

Pri.

Sec.
1

Sec. 2

Sec. 3

EID-630B

1:01

1

120

2

50

0.25

0.23

-

-

EID-631B

1:01

1

120

3

40

0.25

0.22

0.28

-

EID-632B

2:01

1

120

3.5

30

0.24

0.12

0.15

-

EID-630C

1:01

4

240

5

55

0.86

0.83

-

-

EID-631C

1:01

4

240

11

35

0.9

0.76

1.1

-

EID-632C

2:01:01

4

240

11

35

0.84

0.38

0.5

-

EID-630D

1:01:00

16.3

482

18

65

3.5

3.4

-

-

EID-631D

1:01:01

16.3

482

40

40

3.6

3.1

4.2

-

EID-632D

2:01:01

16.3

482

40

40

3.5

1.6

2

-

EID-640A

2:1:1:1

10

370

38

32

2.3

1.1

1.3

1

EID-640B

2:1:1:1

30

640

110

38

6.6

3

3.8

2.7

EID-640C

2:1:1:1

100

1160

340

35

25

12

14.6

10.8

EID-641A

2:1:1:1

10

890

28

65

0.45

0.2

0.26

0.19

EID-641B

2:1:1:1

30

1520

75

70

1.2

0.5

0.65

0.46

EID-641C

2:1:1:1

100

2760

190

190

5.2

2.4

2.9

2.2

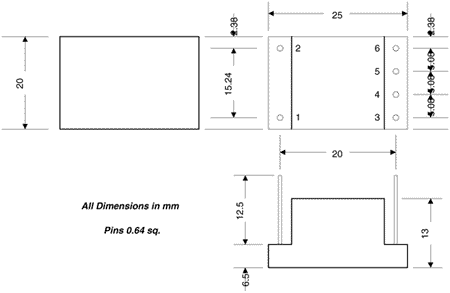

Mechanical & Schematic Data (630 Series):



630 Line Art


630 Schematic

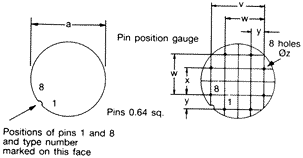

Mechanical & Schematic Data (640 Series):



640 Line Art 640 Line Art



640 Schematic



P#.

Tol.

Dimensions

a

b

c

v

w

x

y

z

EID-640 Series

Max.

25

12.7

-

17.98

12.9

7.82

5.28

1.2

Min.

-

-

4

17.58

12.47

7.42

4.88

1.1

EID-641 Series

Max.

36

20.2

-

28.12

20.52

12.9

7.82

1.2

Min.

-

-

4

27.72

20.12

12.47

7.42

1.1



  •
