The Audio Type Transformers EID-300 series. "Classic" , chassis mount, high voltage enclosed plate & filament power, universal primary transformers.



"300" Series Photo


Key Features:

  • Primary: Universal - 100, 110, 120, 200, 220, 240 VAC 50/60 Hz.

  • Secondary: High voltage designed for full wave C.T. use. See chart below (High voltage current is D.C. using C.T. Full Wave rectifier - capacitor input).

  • Bias Tap: 50 VAC tap from high voltage secondary C.T.

  • Highpot tested: 2,000 VAC

  • Finish: Black epoxy painted to match our 1650 series of output transformers

  • Windings: Concentric wound for low stray field and low noise

  • Models: 18 of most popular "200" SERIES units PLUS 2 models designed specifically for EID-300B tubes (Part Number EID-300BX) and 2A3 tubes (Part Number EID-302AX).

"300" Series Plate & Filament Power:

Part Number

Total Power
(VA)

Secondary

Bias Tap (VAC)

Filament #1

Filament #2

Filament #3

Dimension Reference (See Table Below)

Voltage

D.C. Current
(ma.)

(VAC)

(VAC)

(VAC)

 EID-300BX

280

400-0-400

250

50

5V CT @ 1.2A

5V CT @ 3A

6.3V CT @ 6A

X15

 EID-302AX

198

300-0-300

200

50

2.5V CT @ 2.5A

5V CT @ 3A

6.3V CT @ 6A

X13

 EID-363CX

119

180-0-180

250

50

5V CT @ 3A

-

-

X11

 EID-369AX

40

125-0-125

100

50

6.3V CT @ 2A

-

-

X6

 EID-369BX

39

150-0-150

75

50

6.3V CT @ 2A

-

-

X6

 EID-369EX

45

190-0-190

65

50

6.3V CT @ 2.5A

-

-

X6

 EID-369GX

50

225-0-225

65

50

6.3V CT @ 2.5A

-

-

X6

 EID-369JX

50

250-0-250

60

50

6.3V CT @ 2.5A

-

-

X6

 EID-370AX

44

240-0-240

50

50

6.3V CT @ 2.5A

-

-

X6

 EID-370BX

55

275-0-275

50

50

5V CT @ 2A

6.3V CT @ 2A

-

X7

 EID-370FX

142

275-0-275

150

50

5V CT @ 3A

6.3V CT @ 5A

-

X20

 EID-370HX

180

275-0-275

200

50

5V CT @ 3A

6.3V CT @ 6A

-

X20

 EID-372BX

98

300-0-300

100

50

5V CT @ 2A

6.3V CT @ 3A

-

X10

 EID-372FX

150

300-0-300

150

50

5V CT @ 3A

6.3V CT @ 5A

-

X20

 EID-372JX

243

300-0-300

250

50

5V CT @ 4A

6.3V CT @ 8A

-

X14

 EID-373BX

187

350-0-350

175

50

5V CT @ 3A

6.3V CT @ 5A

-

X13

 EID-373X

125

350-0-350

110

50

5V CT @ 2A

6.3V CT @ 4A

-

X11

 EID-374BX

200

375-0-375

175

50

5V CT @ 3A

6.3V CT @ 6A

-

X13

 EID-378CX

465

400-0-400

465

50

6.3V CT @ 6A

-

-

X21

 EID-378X

237

400-0-400

200

50

5V CT @ 3A

6.3V CT @ 6A

-

X22



Dimension Table:

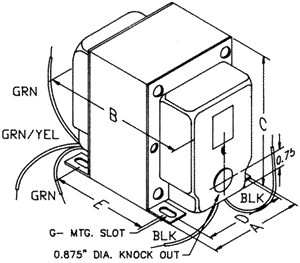

300 Series 3-D Drawing



Mtg.
Style

Dimensions

G - Mtg. Slot

A

B

C

D

E

X2

1.88

2.44

2.50

1.50

1.56

.19 X .31

X4

2.19

2.50

2.63

1.75

1.44

.19 X .25

X5

2.19

2.63

2.63

1.75

1.56

.19 X .25

X6

2.50

2.75

3.06

2.00

1.69

.203 X .38

X7

2.50

3.00

3.06

2.00

1.94

.203 X .38

X8

2.50

3.25

3.06

2.00

2.19

.203 X .38

X9

2.50

3.75

3.06

2.00

2.69

.203 X .38

X10

3.13

3.50

3.81

2.50

2.19

.203 X .38

X11

3.13

3.75

3.81

2.50

2.44

.203 X .38

X13

3.75

4.00

4.56

3.00

2.81

.203 X .38

X14

3.75

4.50

4.56

3.00

3.31

.203 X .38

X15

3.75

5.00

4.56

3.00

3.81

.203 X .38

X19

3.13

4.00

3.81

2.50

2.69

.203 X .38

X20

3.13

4.25

3.81

2.50

2.94

.203 X .38

X21

4.38

6.00

5.50

3.50

3.54

.203 X .38

X22

3.75

3.06

4.56

3.00

3.06

.203 X .38





Primary Wiring Table:



Primary Supply

Wiring Diagram

100 VAC

110 VAC

120 VAC

200 VAC

220 VAC

240 VAC



  •
