The Audio Type Transformers 261 & 262 series. "Classic", chassis mount, low power plate & filament or bias   transformers.





Key Features:

  • Primary 115 VAC, 60 Hz.

  • Designed for small power or bias supplies, test equipment, preamps etc.

  • Models 261C6, 261E6, and 261G6 can also be used with full wave C.T. rectifiers.

  • Economical , 2 hole (.187 dia. = G) channel bracket, chassis mount.

  • Minimum 5" long leads.

  • Convenient 6.3 or 12.6 volt filament/auxiliary winding.

P#

VA

A.C. Secondary #1 RMS

A.C. Filament Sec. #2 RMS

Schematic Figure #

Dimensions (Inches)

Wt. lbs.

A

B

C

D

EID-261C6

17.5

250V C.T. @ 45 ma

6.3V @ 1A

1

3.25

1.75

2

2.81

1

EID-261E6

29

250V C.T. @ 91 ma

6.3V @ 1A

1

3.69

2.38

2.31

3.13

1.7

EID-261G6

45

250V C.T. @ 130 ma

6.3V @ 2A

1

4

2.5

2.63

3.56

2

EID-261M6

83

215V @ 269 ma

6.3V @ 4A

2

2.81

3

3.38

2

4

EID-262B6

7

120V @ 43 ma

6.3V @ 0.3A

2

2.81

1.88

1.63

2.38

0.6

EID-262B12

7

120V @ 45 ma

12.6V @ 0.3A

2

2.81

1.88

1.63

2.38

0.6

EID-262B24

7

120V @ 27 ma

12/12V @ 0.2/0.2A

3

2.81

1.88

1.63

2.38

0.6

EID-262D6

12

120V @ 53 ma

6.3V @ 0.9A

2

3.25

2

2

2.81

1

EID-262D12

12

120V @ 53 ma

12.6V @ 0.45A

2

3.25

2

2

2.81

1

EID-262E6

18

120V @ 87 ma

6.3V @ 1.2A

2

3.25

2

2

2.81

1.3

EID-262E12

18

120V @ 87 ma

12.6V @ 0.6A

2

3.25

2

2

2.81

1.3

EID-262F6

26

120V @ 140 ma

6.3V @ 1.5A

2

3.69

2.38

2.31

3.13

1.7

EID-262F12

26

120V @ 140 ma

12.6V @ 0.75A

2

3.69

2.25

2.31

3.13

1.5

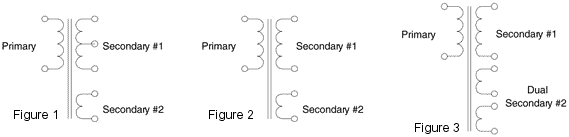

Mechanical & Schematic Data:



  •
