The Audio Type Transformers 185 series. Chassis mount, power global use transformers.

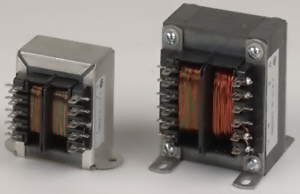

185 Group Photo



Key Features:

  • Dual primary 115/230 VAC

  • 50/60 Hz. operation

  • Dual secondaries for series or parallel connections

  • 4,000 V RMS Hipot test

  • Chassis mount

  • 5 different VA sizes to choose from

  • Dual bobbin construction

  • Dual use terminals (solder lug or quick connect)

  • UL listed (# E207860)

  • CSA certified to C22.2 #66

  • CE certified to IEC 950 (Approved to EN 60-742 Safety Isolating Transformers)

P#

VA

Secondary
V AC (RMS)

Dimensions
(Inches)

Weight
(lbs)

Fig.

Hole to Hole Mtg. Dim. (Inches)

Series

Parallel

W

D

H

W

D

EID-185C10

25

10VCT@2.5A

5V@5.0A

2.81

2.22

2.31

1.25

A

2.37

-

EID-185D10

43

10VCT@4.3A

5V@8.6A

3.12

2.22

2.68

1.75

A

2.81

-

EID-185E10

80

10VCT@8.0A

5V@16.0A

2.5

2.61

3

2.5

B

2

2.18

EID-185F10

130

10VCT@13.0A

5V@26.0A

2.81

3.07

3.37

4

B

2.25

2.5

EID-185G10

175

10VCT@17.5A

5V@35.0A

3.12

3.20

3.75

5

B

2.5

2.5

EID-185C12

25

12.6VCT@2.0A

6.3V@4.0A

2.81

2.22

2.31

1.25

A

2.37

-

EID-185D12

43

12.6VCT@3.4A

6.3V@6.8A

3.12

2.22

2.68

1.75

A

2.81

-

EID-185E12

80

12.6VCT@6.3A

6.3V@12.6A

2.5

2.61

3

2.5

B

2

2.18

EID-185F12

130

12.6VCT@10.3A

6.3V@20.6A

2.81

3.07

3.37

4

B

2.25

2.5

EID-185G12

175

12.6VCT@14.0A

6.3V@28.0A

3.12

3.20

3.75

5

B

2.5

2.5

EID-185C16

25

16VCT@1.6A

8V@3.2A

2.81

2.22

2.31

1.25

A

2.37

-

EID-185D16

43

16VCT@2.7A

8V@5.4A

3.12

2.22

2.68

1.75

A

2.81

-

EID-185E16

80

16VCT@5.0A

8V@10.0A

2.5

2.61

3

2.5

B

2

2.18

EID-185F16

130

16VCT@8.1A

8V@16.2A

2.81

3.07

3.37

4

B

2.25

2.5

EID-185G16

175

16VCT@11.0A

8V@22.0A

3.12

3.20

3.75

5

B

2.5

2.5

EID-185C20

25

20VCT@1.25A

10V@2.5A

2.81

2.22

2.31

1.25

A

2.37

-

EID-185D20

43

20VCT@2.2A

10V@4.4A

3.12

2.22

2.68

1.75

A

2.81

-

EID-185E20

80

20VCT@4.0A

10V@8.0A

2.5

2.61

3

2.5

B

2

2.18

EID-185F20

130

20VCT@6.5A

10V@13.0A

2.81

3.07

3.37

4

B

2.25

2.5

EID-185G20

175

20VCT@8.8A

10V@17.6A

3.12

3.20

3.75

5

B

2.5

2.5

EID-185C24

25

24VCT@1.0A

12V@2.0A

2.81

2.22

2.31

1.25

A

2.37

-

EID-185D24

43

24VCT@1.8A

12V@3.6A

3.12

2.22

2.68

1.75

A

2.81

-

EID-185E24

80

24VCT@3.3A

12V@6.6A

2.5

2.61

3

2.5

B

2

2.18

EID-185F24

130

24VCT@5.4A

12V@10.8A

2.81

3.07

3.37

4

B

2.25

2.5

EID-185G24

175

24VCT@7.3A

12V@14.6A

3.12

3.20

3.75

5

B

2.5

2.5

EID-185C28

25

28VCT@0.9A

14V@1.86A

2.81

2.22

2.31

1.25

A

2.37

-

EID-185D28

43

28VCT@1.5A

14V@3.0A

3.12

2.22

2.68

1.75

A

2.81

-

EID-185E28

80

28VCT@2.8A

14V@5.6A

2.5

2.61

3

2.5

B

2

2.18

EID-185F28

130

28VCT@4.6A

14V@9.2A

2.81

3.07

3.37

4

B

2.25

2.5

EID-185G28

175

28VCT@6.25A

14V@12.5A

3.12

3.20

3.75

5

B

2.5

2.5

EID-185C36

25

36VCT@0.7A

18V@1.4A

2.81

2.22

2.31

1.25

A

2.37

-

EID-185D36

43

36VCT@1.2A

18V@2.4A

3.12

2.22

2.68

1.75

A

2.81

-

EID-185E36

80

36VCT@2.2A

18V@4.4A

2.5

2.61

3

2.5

B

2

2.18

EID-185F36

130

36VCT@3.6A

18V@7.2A

2.81

3.07

3.37

4

B

2.25

2.5

EID-185G36

175

36VCT@4.8A

18V@9.6A

3.12

3.20

3.75

5

B

2.5

2.5

EID-185C230

25

230VCT@0.11A

115V@0.22A

2.81

2.22

2.31

1.25

A

2.37

-

EID-185D230

43

230VCT@0.19A

115V@0.38A

3.12

2.22

2.68

1.75

A

2.81

-

EID-185E230

80

230VCT@0.35A

115V@0.7A

2.5

2.61

3

2.5

B

2

2.18

EID-185F230

130

230VCT@0.57A

115V@1.14A

2.81

3.07

3.37

4

B

2.25

2.5

EID-185G230

175

230VCT@0.76A

115V@1.52A

3.12

3.20

3.75

5

B

2.5

2.5




Mechanical Data:



185 Figure A - Line Art



Figure A

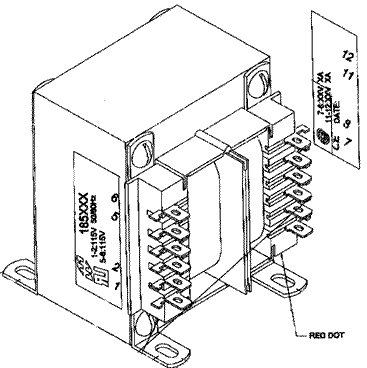

185 Figure B - Line Art



Figure B

Mounting Hole (2) = 0.187"

Mounting Hole (4) = 0.230 x 0.375"



Schematic Data:



Confused about phasing or
primary & secondary connections?





  •
