The Audio Type Transformers EID-165 series. Chassis Mount, high current open frame filament & Low voltage, rectifier use transformers.



165 Picture



Key Features:

  • Primary 115 VAC, 60 Hz.

  • All secondaries center tapped, VAC (RMS)

  • Open style, 4 hole frame chassis mount.

  • Minimum 6" long leads or copper tabs with holes.

  • Dual bobbin design - no electrostatic shield required.

  • Class B insulation (130 degrees, C).

  • Hi-Pot test of 2,000V RMS.

  • UL listed (# E50394)& CSA certified (# LR3902).

P#

Secondary (R.M.S.)

Dim. Ref.

VAC

Amps

EID-165Z3

3.0ct

50

H10

EID-165X5

5.0ct

30

H9

EID-165V7

7.5ct

21

H9

EID-165V10

10.0ct

20

H10

EID-165U11

11.0ct

15

H9

EID-165S12

12.6ct

10

H7

EID-165V12

12.6ct

20

H12

EID-165S18

18.0ct

10

H10

EID-165U18

18.0ct

15

H16

EID-165V18

18.0ct

20

H18

EID-165T22

22.0ct

12

H16

EID-165V22

22.0ct

20

H19

EID-165P25

25.0ct

5

H7

EID-165S25

25.0ct

10

H12

EID-165P30

30.0ct

5

H7

EID-165S30

30.0ct

10

H16

EID-165P60

60.0ct

5

H16

EID-165N80

80.0ct

4

H18



Mechanical & Schematic Data:

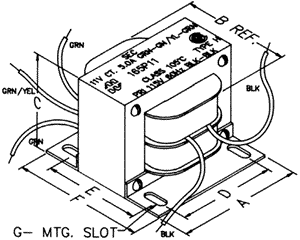

165 3-D Drawing

165 Schematic



Mtg. Style

Dimensions (Inches)

Mtg. Slot

A

B

C

D

E

F

H7

3

3.25

2.56

2.5

3.25

4

.22 x .56

H9

3.75

2.63

3.13

3.13

2.5

3.25

.22 x .56

H10

3.75

3.13

3.13

3.13

2.75

3.5

.22 x .56

H12

3.75

3.63

3.13

3.13

3.25

4

.22 x .56

H16

4.5

3.88

3.75

3.75

2.75

3.5

.28 x .56

H18

4.5

4.38

3.75

3.75

3.25

4

.28 x .56

H19

4.5

4.38

3.75

3.75

3.75

4.5

.28 x .56



  •
