The Line Type Transformers 298 series. Isolation, Step Up (115VAC - 230VAC) Plug In (Euro) transformers.



289 Photo

Key Features:

  • Primary 115VAC, 50/60 Hz., Secondary 230VAC.

  • Provides circuit isolation.

  • Electrostatic shield between primary & secondary.

  • World wide applications, 50 or 60 Hz. operation, step up (115VAC to 230 VAC).

  • Standard 3-wire, grounded plug (can also be used with adaptors for proper grounding).

  • Input (primary) connected to a 5 foot cord & standard North American plug (NEMA 5-15P)

  • Output (secondary) connected to two European (Shuko) - 3 wire grounded receptacles.

  • Features include ventilated black steel case, rocker lighted on-off switch & fuse protected output.

  • Remember - These units do NOT convert line frequency

115VAC to 230VAC



P#

Capacity VA

# of Outlets

Dimensions

A

B

C

EID-298C

250

2

6

6.75

4.75

EID-298D

500

2

6

8.25

4.75

EID-298E

750

2

7

8.25

5.38

EID-298F

1000

2

7

9.75

5.38

EID-298G

1500

2

8.5

9

6.75

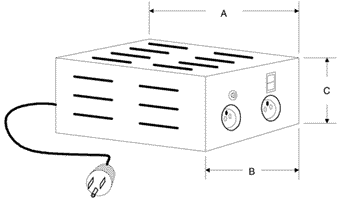

Mechanical & Schematic Data:











  •
