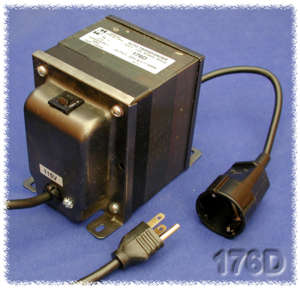

The Line Type Transformers 176 series. Autotransformer, step up, plug in (115VAC - 230VAC)

Key Features:

• Single winding, does not provide isolation, for use where equipment is already isolated and only voltage change is required.

• World wide applications, 50 or 60 Hz. operation, step up (115VAC to 230VAC).

• Input is circuit breaker protected.

• Hi-pot tested to 2 KV RMS

• Standard 3-wire, grounded plug (can also be used with adaptors for proper grounding).

• Input is connected to a 5 foot cord & standard grounded North American plug (NEMA 5-15P)

• Output is connected to a grounded European (Schuko) receptacle.

• North American Mark of Safety - C UL & UL listed

• Remember - These units do NOT convert line frequency

115VAC to 230VAC

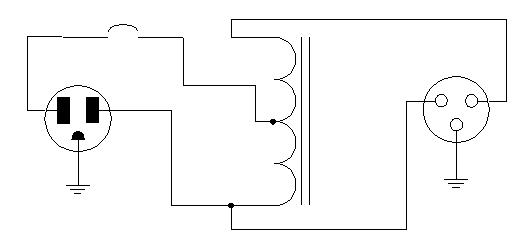

Mechanical & Schematic Data:

  ^•
