The Line Type Transformers 175 series. Autotransformer - Step Down - Plug In (230VAC - 115VAC)



175 North American Version



Key Features:

  • Single winding, does not provide isolation, for use where equipment is already isolated and only voltage change is required.

  • World wide applications, 50 or 60 Hz. operation, step down (230VAC to 115 VAC).

  • Input is circuit breaker protected.

  • Hi-pot tested to 2 KV RMS.

  • Standard 3-wire, grounded plug (can also be used with adaptors for proper grounding).

  • "-NA" version - Input connected to a 5 foot cord & grounded North American 230V plug.

  • "-EU" version - Input connected to a 5 foot cord & standard grounded European (Schuko) plug.

  • Output (both versions) connected to standard North American 115V - 3 wire grounded receptacle (NEMA 5-15R).

  • North American Mark of Safety - C UL & UL listed (both -NA & -EU versions)

  • Remember - These units do NOT convert line frequency.

Click here to enlarge



230VAC to 115VAC
(North American 230V Plug & 115V Receptacle)



P#

Capacity VA

Dimensions

Wt. Lbs.

A

B

C

D

E

EID-175A-NA

100

3.16

4.25

3.81

2.50

2.94

3.5

EID-175B-NA

200

3.16

4.50

3.81

2.50

3.19

4.5

EID-175C-NA

300

3.16

5.00

3.81

2.50

3.69

6.0

EID-175D-NA

500

3.80

6.00

4.68

3.00

4.38

10.0

EID-175E-NA

750

3.80

7.06

4.68

3.00

5.38

14.0

EID-175F-NA

1000

3.80

7.06

4.68

3.00

5.38

14.5

EID-175G-NA

1500

4.40

6.63

5.39

3.50

6.09

22.0



Mechanical & Schematic Data:



175 Line Art

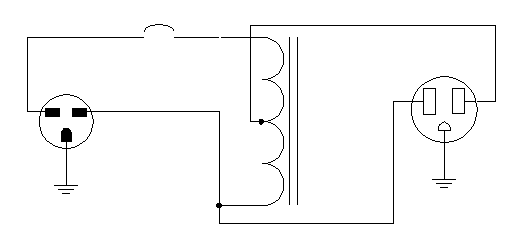

175 North American Schematic






Click here to enlarge



230VAC to 115VAC
(European Plug & North American Receptacle)



P#

Capacity VA

Dimensions

Wt. Lbs.

A

B

C

D

E

EID-175A-EU

100

3.16

4.25

3.81

2.50

2.94

3.5

EID-175B-EU

200

3.16

4.50

3.81

2.50

3.19

4.5

EID-175C-EU

300

3.16

5.00

3.81

2.50

3.69

6.0

EID-175D-EU

500

3.80

6.00

4.68

3.00

4.38

10.0

EID-175E-EU

750

3.80

7.06

4.68

3.00

5.38

14.0

EID-175F-EU

1000

3.80

7.06

4.68

3.00

5.38

14.5

EID-175G-EU

1500

4.40

6.63

5.39

3.50

6.09

22.0


Mechanical & Schematic Data:

175 Line Art

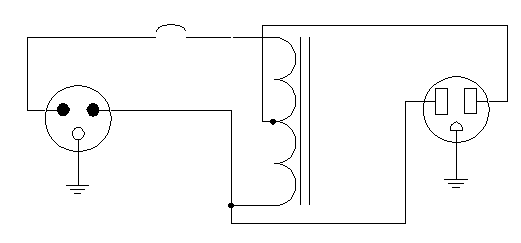

175 Euro Schematic



  •
