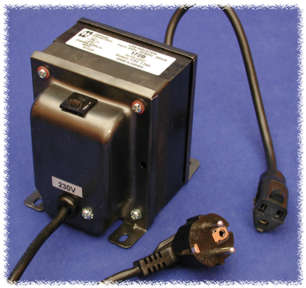

The Line Type Transformers 172 series. Isolation - step down (230VAC - 115VAC), plug in (Euro) transformers.



Click here to enlarge

Key Features:

  • Primary 230VAC, 50/60 Hz. Secondary 115VAC

  • Circuit breaker in primary.

  • Provides circuit isolation & steps down primary voltage.

  • Hi-pot tested to 2 KV RMS.

  • Electrostatic shield between primary & secondary.

  • Input (primary) connected to a 5 foot long cord & European (Schuko) grounded plug.

  • Output (secondary) connected to a 1 foot long cord & standard North American 3-wire grounded receptacle (NEMA 5-15R).

  • North American Mark of Safety - C UL & UL listed

  • Remember - These units do NOT convert line frequency

230VAC to 115VAC



P#

Capacity VA

Dimensions

Wt. Lbs.

A

B

C

D

E

EID-172A

100

3.80

5.06

4.68

3.00

3.38

6.5

EID-172B

200

3.80

5.56

4.68

3.00

3.88

8.5

EID-172D

500

3.80

7.06

4.68

3.00

5.38

18.5

EID-172E

750

4.40

8.70

5.39

3.50

6.78

30.0

EID-172F

1000

5.28

7.75

6.38

4.25

4.38

34.5


Mechanical & Schematic Data (172 Series):



172 Line Art

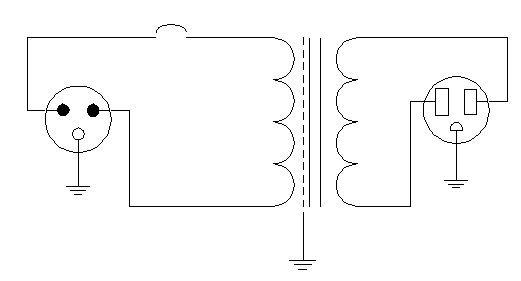

172 Schematic



  •
