Class 2 Type Transformers
BF series. Class 2, energy limiting, box mount
(75VA) transformers
Key
Features:
-
Used
in chimes, door bells, security systems, decorative
lighting, furnaces, humidifiers, appliances, vending
machines, intercom system type applications.
-
Rugged,
low noise design, indoor use only.
-
Stripped
wire input (primary) leads, screw terminal output
(secondary).
-
Mounted
on box plate for easy installation.
-
Input
leads are black 6” minimum, on 240V models 240V lead is
red.
-
All
models are 60 Hz. - limited by built in circuit breaker.
-
16
VAC secondary units are C UL listed
-
The
24 VAC secondary units are CSA certified (#LR 3902 Class 2)
energy limiting transformer (complies with CSA standard
C22.2 #66 part B)
|
P#
|
A.C.
Input
(Primary)
V (RMS)
|
A.C.
Output Secondary (RMS)
|
Power
Rating
VA
|
Dimensions
|
|
V
|
A
|
A
|
B
|
C
|
|
EID-BF2F
|
120
|
16
|
4.68
|
75
|
3.00
|
2.50
|
3.75
|
|
EID-BF5F
|
240
|
16
|
4.68
|
75
|
3.00
|
2.50
|
3.75
|
|
EID-BF2G
|
120
|
24
|
3.13
|
75
|
3.00
|
2.50
|
3.75
|
|
EID-BF5G
|
240
|
24
|
3.13
|
75
|
3.00
|
2.50
|
3.75
|

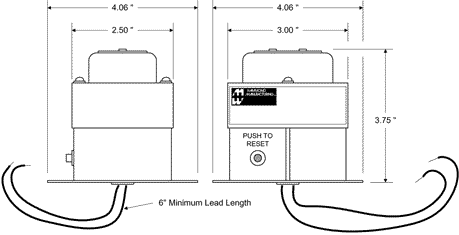

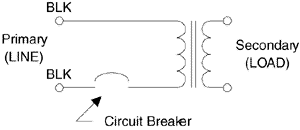

Mechanical
& Schematic Data:
|
