The Class 2 Type Transformers BA to BE series. Class 2, small - Box Mount (5 - 40 VA) transformers.



 Click Here To Enlarge    Click Here To Enlarge



Key Features:

  • Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.

  • Rugged, low noise, cool running design, indoor use only.

  • Stripped wire input (primary) leads, screw terminal/quick fit tab terminal output (secondary).

  • Nipple locknut mount for box installation, complete with mounting bracket.

  • Input leads are black, on 240V models 240V lead is red. All models are 60 Hz.- inherently limited - no fuses or circuit breakers.

  • UL listed #E184371 EXCEPT for part numbers BE2F & BE7G.

  • CSA certified (#LR 3902 Class 2) energy limiting transformer. Complies with CSA standard C22.2 #66 part B.

120 Volt Primary



P#

A.C. Input
(Primary)
V (RMS)

A.C. Output Secondary (RMS)

Power Rating VA

Note

Dimensions

V

A

A

B

C

EID-BA2DA

120

10

0.5

5

*

2.33

2.22

1.98

EID-BC2DA

120

10

1.2

12

*

2.33

2.22

1.98

EID-BC2F

120

16

0.75

12

*

2.33

2.22

1.98

EID-BC2G

120

24

0.5

12

*

2.33

2.22

1.98

EID-BD2E

120

12

1.67

20

*

2.33

2.34

1.98

EID-BD2EE

120

14

1.43

20

*

2.33

2.34

1.98

EID-BD2F

120

16

1.25

20

*

2.33

2.34

1.98

EID-BD2FF

120

18

1.11

20

*

2.33

2.34

1.98

EID-BD2G

120

24

0.833

20

*

2.33

2.34

1.98

EID-BE2F

120

16.5

2.42

40

*

2.33

2.60

1.98

EID-BE2G

120

24

1.67

40

*

2.33

2.60

1.98



Note: * = 105 degree temperature design



Other Primary Voltages



P#

A.C. Input
(Primary)
V (RMS)

A.C. Output Secondary (RMS)

Power Rating VA

Note

Dimensions

V

A

A

B

C

EID-BD5F

240

16

1.25

20

*

2.33

2.34

1.98

EID-BD5G

240

24

0.83

20

*

2.33

2.34

1.98

EID-BE5G

240

24

1.67

40

*

2.33

2.60

1.98

EID-BE5DG

208/240

24

1.67

40

*

2.33

2.60

1.98

EID-BE7G

347

24

1.67

40



2.33

2.60

1.98



Note: * = 105 degree temperature design

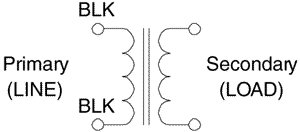

Mechanical & Schematic Data:



Option, Mounting Bracket:





A steel mounting bracket is included with each unit.



When purchasing additional brackets order part number: EID-MTG70330-BULK



  •
