The Chokes Type Transformers EID-1540 series. Toroid inductors, High Current transformer.



1540 Picture



Key Features:

  • Ideal for EMI/RFI filtering applications

  • Suitable for energy storage inductors for switching power supplies.

  • High current

  • Minimum .5" long leads, for P.C. board mounting.

P#

Inductance Ls +/- 15% @ 0A D.C. uH

Rated D.C Amps

Minimum Inductance at rated D.C. uH

D.C. Resistance max. Ohms

D.C. Amps for 0.8 Ls

Dimensions A Max.
(Inches)

B Max.
(Inches)

C Min.
(Inches)

Typ.
Lead Dia. (In.)

EID-1540M01

10

11

5

0.008

7.5

0.875

0.437

0.187

0.064

EID-1540M02

25

5.5

12

0.014

3.25

0.875

0.437

0.187

0.04

EID-1540M03

125

2.75

70

0.12

1.5

0.875

0.437

0.187

0.02

EID-1540M04

275

2

150

0.24

1.3

0.875

0.437

0.187

0.016

EID-1540M05

450

1.5

250

0.49

0.8

0.875

0.437

0.187

0.012

EID-1540M06

25

9

15

0.012

5.5

1.125

0.562

0.312

0.064

EID-1540M07

75

5

40

0.04

3

1.125

0.562

0.312

0.036

EID-1540M08

400

2.25

225

0.33

1.4

1.125

0.562

0.312

0.018

EID-1540M09

800

1.75

475

0.64

1

1.125

0.562

0.312

0.015

EID-1540M10

1000

1.5

575

0.98

0.9

1.125

0.562

0.312

0.012

EID-1540M11

50

9.5

25

0.012

6

1.25

0.625

0.375

0.064

EID-1540M12

150

4.75

85

0.046

2.5

1.25

0.625

0.375

0.036

EID-1540M13

700

2.25

400

0.42

1.25

1.25

0.625

0.375

0.018

EID-1540M14

1250

1.75

750

0.85

1

1.25

0.625

0.375

0.015

EID-1540M15

1600

1.5

950

1.27

0.8

1.25

0.625

0.375

0.012

EID-1540M16

125

7.75

65

0.032

5.25

1.812

0.075

0.75

0.064

EID-1540M17

500

4

275

0.15

2.75

1.812

0.75

0.75

0.032

EID-1540M18

1100

2.5

650

0.33

1.8

1.812

0.75

0.75

0.025

EID-1540M19

2250

1.75

1350

0.92

1.3

1.812

0.75

0.75

0.08

EID-1540M20

4500

1.25

2700

2.64

0.9

1.812

0.75

0.75

0.012

EID-1540M21

250

8

125

0.041

4.75

2.125

0.937

0.625

0.062

EID-1540M22

900

3.75

500

0.175

2

2.125

0.937

0.625

0.032

EID-1540M23

1800

2.5

1000

0.55

1.4

2.125

0.937

0.625

0.023

EID-1540M24

4000

1.75

2100

1.16

1.1

2.125

0.937

0.625

0.018

EID-1540M25

8000

1

4500

3.34

0.7

2.125

0.937

0.625

0.012



Mechanical Data:

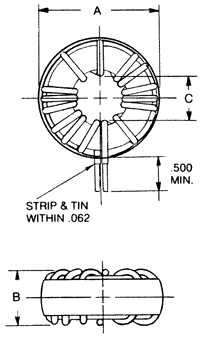

1540 Line Art



  •
