The Chokes Type Transformers EID-1538 & EID-1539 series. EMI/RFI chokes.



1538 Picture



Key Features:

  • High saturation flux density ferrite rods.

  • 1" long leads, tinned to within 1/8" of body.

  • Ideal for filtering or energy storage inductors.

  • Inductance measured at @ 1Khz. with 0 amps. D.C. current, typical inductance change is less than 5% @ twice rated current.

P#

Inductance L uH +/- 10%

Fo Min MHz

R - D.C. Max Ohms

I - D.C. Max Amps

Max. Dim. A

Max. Dim. B

Typ.
Dim. C

Typ.
Dim. D

EID-1538M01

5

32.4

0.013

10

0.88

0.63

0.5

0.042

EID-1538M02

10

21.6

0.017

9

1.12

0.63

0.69

0.042

EID-1538M03

27

5.6

0.03

7

0.88

0.81

0.44

0.042

EID-1538M04

50

3.44

0.04

5.6

0.88

0.81

0.75

0.042

EID-1538M05

100

2.08

0.061

4.9

1.12

0.81

0.94

0.042

EID-1538M06

150

1.84

0.069

4.6

1.38

0.81

1.06

0.042

EID-1538M07

250

1.1

0.089

4

1.62

0.81

1.31

0.042

EID-1538M08

5

27.2

0.009

14

0.88

0.64

0.75

0.053

EID-1538M09

10

21.7

0.012

12

1.12

0.64

1

0.053

EID-1538M10

27

5.6

0.022

9

0.88

0.88

0.56

0.053

EID-1538M11

50

4.4

0.028

8

1.12

0.88

0.75

0.053

EID-1538M12

68

3.6

0.034

7.3

1.12

0.88

0.88

0.053

EID-1538M13

100

2.4

0.038

6.8

1.38

0.88

1

0.053

EID-1538M14

150

1.6

0.046

6.3

1.62

0.88

1.25

0.053

EID-1538M15

5

34.7

0.006

19

1.12

0.69

0.81

0.065

EID-1538M16

10

20

0.008

16

1.38

0.94

1.22

0.065

EID-1538M17

27

6.2

0.014

12.5

1.12

0.94

0.69

0.065

EID-1538M18

50

3.8

0.02

10.5

1.38

0.94

0.94

0.065

EID-1538M19

68

3.2

0.023

10

1.38

0.94

1.12

0.065

EID-1538M20

100

2.2

0.027

10

1.62

0.94

1.31

0.065

EID-1538M21

5

30.8

0.004

23

1.38

0.72

0.94

0.082

EID-1538M22

10

20

0.006

20

1.69

0.72

1.5

0.082

EID-1538M23

27

6.4

0.01

15

1.38

1

0.94

0.082

EID-1538M24

50

3.5

0.013

15

1.62

1

1.12

0.082

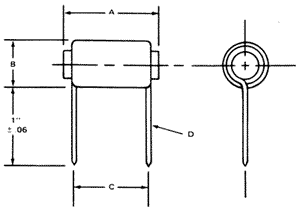

Mechanical Data (EID-1538 Series):



1538 Line Art






1539 Picture

EMI/RFI
Chokes



Key Features:

  • High saturation flux density ferrite bobbins.

  • 1" long leads, tinned to within 1/8" of body.

  • Ideal for filtering or energy storage inductors.

  • Inductance measured at @ 1Khz. with 0 amps. D.C. current, typical inductance change is less than 5% @ twice rated current.

P#

Inductance L uH +/- 10%

Fo Min MHz

R - D.C. Max. Ohms

I - D.C. Max. Amps

Max. Dim. A

Max. Dim. B

Typ.
Dim. C

Typ.
Dim. D

EID-1539M01

5

24.7

0.007

15

0.83

0.91

0.59

0.065

EID-1539M02

10

11.4

0.008

14

0.83

0.91

0.6

0.065

EID-1539M03

25

6.2

0.023

8

0.83

0.91

0.57

0.042

EID-1539M04

50

4.1

0.034

6.6

0.83

0.91

0.65

0.042

EID-1539M05

100

2.4

0.072

4.5

0.83

0.91

0.69

0.042

EID-1539M06

250

1.6

0.173

2.9

0.83

0.91

0.65

0.042

EID-1539M07

500

1

0.378

2

0.83

0.91

0.68

0.042

EID-1539M08

1000

0.7

0.801

1.3

0.83

0.91

0.66

0.042

EID-1539M09

2500

0.43

2.04

0.85

0.83

0.91

0.71

0.042

EID-1539M10

5

26.7

0.005

20

1.22

1.11

0.94

0.082

EID-1539M11

10

15.6

0.006

17

1.22

1.11

0.95

0.082

EID-1539M12

25

5.2

0.009

14

1.22

1.11

0.93

0.082

EID-1539M13

50

3.6

0.017

10

1.22

1.11

0.99

0.065

EID-1539M14

100

2.2

0.034

7

1.22

1.11

0.85

0.053

EID-1539M15

250

1.2

0.083

4.6

1.22

1.11

0.97

0.053

EID-1539M16

500

0.89

0.129

3.7

1.22

1.11

1.12

0.053

EID-1539M17

1000

0.58

0.279

2.5

1.22

1.11

1.05

0.053

EID-1539M18

2500

0.35

0.69

1.6

1.22

1.11

1.05

0.053

EID-1539M19

50

3.4

0.012

14

1.5

1.11

1.23

0.082

EID-1539M20

100

2

0.025

9.8

1.5

1.11

1.12

0.065

EID-1539M21

250

1.3

0.059

6.4

1.5

1.11

1.1

0.053

EID-1539M22

500

0.9

0.09

5

1.5

1.11

1.14

0.053

EID-1539M23

1000

0.54

0.195

3.5

1.5

1.11

1.36

0.053

EID-1539M24

2500

0.34

0.499

2.2

1.5

1.11

1.32

0.053

EID-1539M25

5000

0.24

1.08

1.5

1.5

1.11

1.27

0.053

EID-1539M26

100

1.8

0.018

14

1.5

1.5

1.18

0.082

EID-1539M27

250

1

0.040

9

1.5

1.5

1.12

0.065

EID-1539M28

500

0.7

0.085

6.5

1.5

1.5

1.06

0.053

EID-1539M29

1000

0.44

0.183

4.4

1.5

1.5

1.23

0.053

EID-1539M30

2500

0.26

0.464

2.8

1.5

1.5

1.21

0.053

EID-1539M31

5000

0.19

0.714

2.2

1.5

1.5

1.32

0.053

EID-1539M32

10000

0.13

1.55

1.5

1.5

1.5

1.25

0.053

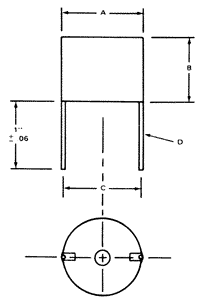

Mechanical Data (EID-1539 Series):

1539 Line Art



  •
