The Audio Type Transformers 560, 800 and 850 series. Broadcast quality audio transformer.



560 Picture 800 Picture



560, 800-844 Series

850 Picture

850 Series



Key Features (560 Series):

  • Rugged black epoxy potted case with 9 pin connections (.025" square by 0.5" long).

  • Frequency response @ 0 dbm +/- 1 db max. (+/- 0.5 db is typical) of 30 Hz. to 30 Khz., except 560Q which is 30 Hz. to 15 Khz.

  • Insertion loss of 1 db max.

  • Maximum power level 0 dbm.

  • Electrostatic shield between pri. & sec. connected to core and pin "SH".

  • Humbucking construction

  • Balanced split windings on pri. & sec. for circuit versatility.

  • Primaries and secondaries can be reversed for impedance matching.

  • Overall dimensions 1.64" x 1.33" x 0.85" high max.

  • Shipping weight 4 oz.

P#

Application

Nominal Impedance

Primary

Secondary

EID-560C

Emitter or mic to Line

12/48

150/600

EID-560E

Emitter or mic to Line

50/20

150/600

EID-560G

Isolating or Hybrid

150/600

150/600

EID-560J

Collector to Line or Line to Base

150/600

1200/4800

EID-560L

Collector to Line or Matching

150/600

5K/20K

EID-560N

Collector to Line

150/600

10K/40K

EID-560Q

Matching or Bridging

10k/40k

10K/40K



Mechanical & Schematic Data:

560 Line Art (Top)

560 Line Art (Bottom)

560 Schematic








Key Features (800 Series):

  • Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with hardware.

  • Hermetically sealed for stable characteristics and long life. Header has nine 0.22" long solder pins.

  • Frequency response +/- 0.5 db max. from 50 Hz. to 15 Khz.

  • Insertion loss of apx. 1 db.

  • Maximum power level +15 dbm. (except 841, 842 & 844 which are +20 dbm) with specified characteristics, or higher levels with reduced low frequency performance.

  • Electrostatic shield between pri. & sec. connected to terminal 9.

  • Humbucking construction

  • Balanced split windings on pri. & sec. for circuit versatility. Primary may be used as a secondary and vice versa for impedance matching.

  • Overall dimensions 1.75" wide x 1.25" deep x 2.56" high max.

  • Shipping weight 0.5 lb.



P#

Application

Nominal Impedance

Max. Pri. D.C. Unbalanced (ma)

Primary

Secondary

EID-801

Isolating, Matching

*50/200

50/200

0.8

EID-802

Isolating, Matching

*50/200 (60/240)

125/500 (150/600)

0.8

EID-804

Isolating, Matching, Hybrid

*125/500 (150/600)

125/500 (150/600)

0.5

EID-806

Dynamic MIC or Voice Coil to Grid

*7.5/30

10K/40K

1.6

EID-807

Dynamic MIC or Voice Coil to Base

*7.5/30

600/2400

1.6

EID-808

MIC or Mixer to Single or P.P. Grid

*50/200

10000/40000

0.6

EID-809

MIC to Mixer to Base

*50/200

600/2400

0.6

EID-812

Line or 150 ohm MIC to 1 or 2 Grids

*125/500 (150/600)

10K/40K (12K/48K)

0.4

EID-813

Line or 150 ohm MIC to Base

*125/500 (150/600)

600/2400 (720/2880)

0.4

EID-832

Interstage (ratio 1:2)

5K/20K

20K/80K

0

EID-834

Interstage (ratio 1:4)

5K/20K

10K/40K

0

EID-835

Interstage (ratio 1:1)

10K/40K

10K/40K

0

EID-841

** P.P. Plates to Line

5K/20K

50/200

0

EID-842

** P.P. Plates to Line

5K/20K (6K/24K)

125/500 (150/600)

0

EID-844

** P.P. Plates to Line

10K/40K (12K/48K)

125/500 (150/600)



Notes:


* Electrostatic shield between primary & secondary

** Single plate requires parallel feed. When operating at impedances below nominal, power capability is lower and the frequency spectrum is shifted downward, conversely, at higher impedances power capability and frequency spectrum will be shifted upward.



Mechanical & Schematic Data:

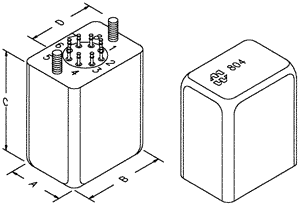

800 Line Art

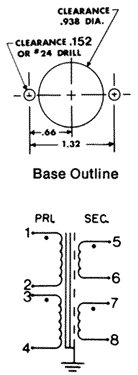

800 Base + Schematic




Key Features (850 Series):

  • Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with hardware (same as 800 series except low profile).

  • Hermetically sealed for stable characteristics and long life. Header has nine 0.22" long solder terminals.

  • Frequency response +/- 0.5 db max. from 20 Hz. to 20 Khz., except units over 5K ohms impedance, may be down 1 db @ 20 Khz.

  • Insertion loss of apx. 1 db.

  • Maximum power level +15 dbm. with specified characteristics, or higher levels with reduced low frequency performance.

  • Distortion is apx. 1.5% @ 20 Hz. under full power.

  • Electrostatic shield between pri. & sec. connected to terminal 9.

  • Humbucking construction

  • Balanced split windings on pri. & sec. for circuit versatility. Primary may be used as a secondary and vice versa for impedance matching.

  • Overall dimensions 1.7" x 1.2" x 1.65" high max.

  • Shipping weight 0.4 lb.

P#

Application

Nominal Impedance

Nominal Resistance
+/- 20%

Primary

Secondary

Primary

Secondary

EID-850C

Emitter or MIC to Line

12/48

150/600

6

70

EID-850E

Emitter or MIC to Line

50/200

150/600

27

68

EID-850G

Line Isolation or Hybrid

150/600

150/600

71

71

EID-850H

Line Isolation or Hybrid

150/600

300/1200

70

140

EID-850J

Output to Line, or Line to Base

150/600

1200/4800

69

570

EID-850L

Output to Line, Matching or Bridging

5K/20K

150/600

2240

69

EID-850N

Output to Line, Matching or Interstage

150/600

10K/40K

65

4980

EID-850Q

Interstage or Isolating

10K/40K

10K/40K

4890

4980


Mechanical & Schematic Data:

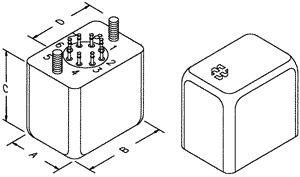

850 Line Art

850 Base + Schematic



  •
