The
Audio Type Transformers
125SE series. "Classic" Universal
single ended tube Output audio transformers.
Key
Features:
-
Designed
for general purpose or replacement use (not Hi-Fi), in
single ended, tube output circuits.
-
Frequency
response: 100 Hz. - 15 Khz (+/- 1db max. - ref. 1 Khz).
-
For
full frequency response (20 Hz. to 20 Khz.) - see our 1627-1642
series.
-
For
push-pull output use, see our 125
series - optimized for push-pull tube
output circuits.
-
Open
style with minimum 12" long primary & secondary
leads leads.
-
All
sizes use butt stacked cores (using 29M6 steel) with an
air gap, to reduce D.C. core saturation.
-

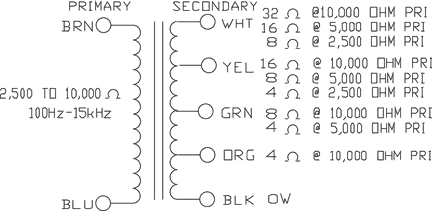

Primary
impedance range from 2,500 to 10,000 Ohms.
-
Secondary
impedance range from 4 to 32 Ohms.
|
P#
|
Audio
Watts
|
Max.
D.C. Bias
(ma)
|
Wt.
Lbs.
|
|
EID-125ASE
|
3
|
25
|
0.5
|
|
EID-125BSE
|
5
|
45
|
1.1
|
|
EID-125CSE
|
8
|
60
|
1.3
|
|
EID-125DSE
|
10
|
70
|
2
|
|
EID-125ESE
|
15
|
80
|
3
|
|
EID-125FSE
|
20
|
90
|
4.5
|
|
EID-125GSE
|
25
|
100
|
6.5
|
Test
Data:
|
P#
|
Primary
Winding Data
|
|
Inductance
(Minimum)
|
DC
Resistance
(+/- 20%)
|
|
EID-125ESE
|
9.58
H
|
90.6
Ohms
|

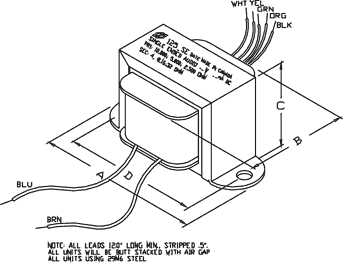

Mechanical
Data:
|
EID-125ASE
to EID-125ESE
|
|
P#
|
Dimensions
(Inches)
|
|
A
|
B
|
C
|
D
|
G
Mtg. Hole
|
|
EID-125ASE
|
2.81
|
1.35
|
1.69
|
2.38
|
0.187
|
|
EID-125BSE
|
3.25
|
1.63
|
2.00
|
2.81
|
0.187
|
|
EID-125CSE
|
3.69
|
1.86
|
2.31
|
3.13
|
0.187
|
|
EID-125DSE
|
4.00
|
2.10
|
2.63
|
3.56
|
0.187
|
|
EID-125ESE
|
4.50
|
2.36
|
2.94
|
4.00
|
0.187
|
|
|
EID-125FSE
to EID-125GSE
|
|
Cat.
No.
|
Dimensions
(Inches)
|
|
A
|
B
|
C
|
D
|
|
G
Mtg. Hole
|
|
EID-125FSE
|
3.76
|
2.52
|
3.15
|
3.13
|
|
0.2
x 0.38
|
|
EID-125GSE
|
4.15
|
2.88
|
3.46
|
3.45
|
|
0.2
x 0.38
|
|
|
