Multiple Impedance audio matching 8 watt output transformer.
P# EID-125J

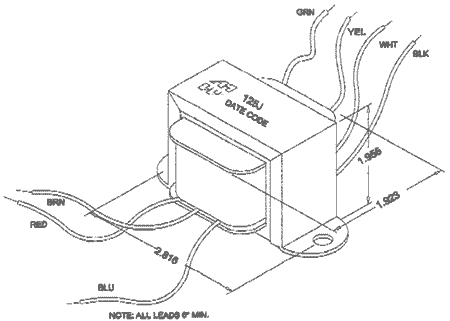

Mechanical Data:



Schematic & Hook Up Data Data:





PRIMARY
IMPEDANCE
Plate to Plate
Brown to Blue
(Ohms)

SECONDARY
IMPEDANCE
(Ohms)

SECONDARY
LEAD
CONNECTIONS

4,000

6 / 8

WHT - GRN

4,000

3.2 / 4

WHT -YEL

2,500

6 / 8

BLK - GRN

2,500

3.2 / 4

BLK - YEL



  •
