The Audio Type Transformers EID-107, EID-108 and EID-109 series. Miniature epoxy potted P.C. Board mount audio transformer.



Key Features:

  • Audio input, line matching and output transformers.

  • Epoxy potted in an attractive molded case, Pin type P.C. board mount (min. 0.187" length).

  • In some models where no center tap is required (on secondary), pin No. 5 is omitted.

  • Power level ratings are maximum at lowest frequency rating (noted by series above charts) power can be increased slightly at higher frequencies (except EID-107X).

  • Will withstand soldering for EID-10 sec. @ 260 degrees C, ambient temp. 85 degrees C max.




150 milliwatt (+/- 1.5 db, 300 Hz.-50 KHz.) - 107 Series

P#

Nominal Impedance
Primary (1-3)

Secondary (4-6)

D.C. Resistance +/- 20%
Primary (1-3)

Secondary (4-6)

Max. D.C. Unbalance

EID-107B

150 ct

12

20

2

12

EID-107D

150 ct

150 ct

20

25

12

EID-107E

600 ct

3.2

59

0.6

6

EID-107G

600 ct

250 ct

59

10

6

EID-107H

600 ct

600 ct

59

75

6

EID-107J

1K ct

600 ct

92

71

4.5

EID-107L

10K ct

3.2

780

0.65

1.5

EID-107N

10K ct

600 ct

680

70

1.5

EID-107P

10K ct

1.5K ct

680

150

1.5

EID-107R

10K ct

4K ct

680

390

1.5

EID-107T

10K ct

10K ct

680

700

1.5

EID-107V

25K ct

600 ct

1300

70

1

EID-107X

100K ct

1K ct

3700

80

0

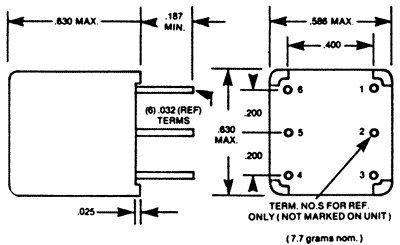

Mechanical & Schematic Data (EID-107 Series):



107 Line Art

107-109 Schematic





500 milliwatt (+/- 1.5 db, 300 Hz.-50 KHz.) - 108 Series

P#

Nominal Impedance
Primary (1-3)

Secondary (4-6)

D.C. Resistance +/- 20%
Primary (1-3)

Secondary (4-6)

Max. D.C. Unbalance

EID-108E

600 ct

3.2

65

0.43

6

EID-108F

600 ct

150 ct

65

18

6

EID-108G

600 ct

250 ct

65

29

6

EID-108H

600 ct

600 ct

65

69

6

EID-108J

1K ct

600 ct

109

69

4.5

EID-108K

1.5K ct

600 ct

170

69

4

EID-108L

10K ct

3.2

1050

0.43

1.5

EID-108N

10K ct

600 ct

1050

69

1.5

EID-108P

10K ct

1.5K ct

1050

180

1.5

EID-108T

10K ct

10K ct

1050

1200

1.5

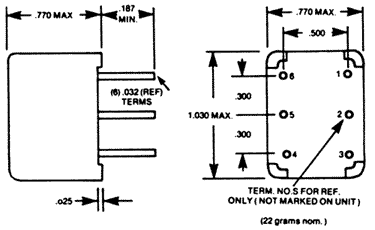

Mechanical & Schematic Data (EID-108 Series):



108 Line Art

107-109 Schematic





2 watt (+/- 1.5 db, 300Hz.-50 KHz.) - 109 Series

P#

Nominal Impedance
Primary (1-3)

Secondary (4-6)

D.C. Resistance +/- 20%
Primary (1-3)

Secondary (4-6)

Max. D.C. Unbalance

EID-109E

600 ct

3.2

43

0.37

6

EID-109F

600 ct

150 ct

43

15

6

EID-109G

600 ct

250 ct

43

24

6

EID-109H

600 ct

600 ct

43

60

6

EID-109J

1K ct

600 ct

69

60

4.5

EID-109K

1.5K ct

600 ct

105

60

4

EID-109L

10K ct

3.2

700

0.37

1.5

EID-109N

10K ct

600 ct

700

60

1.5

EID-109R

10K ct

1.5K ct

700

150

1.5

EID-109T

10K ct

10K ct

700

1000

1.5

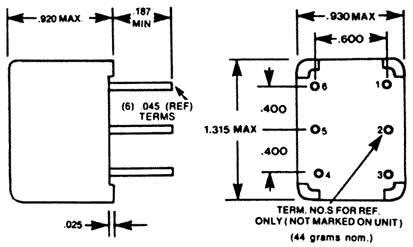

Mechanical & Schematic Data (EID-109 Series):

109 Line Art

107-109 Schematic



  •
