Desk Top - Open Relay Racks (RRTT Series).

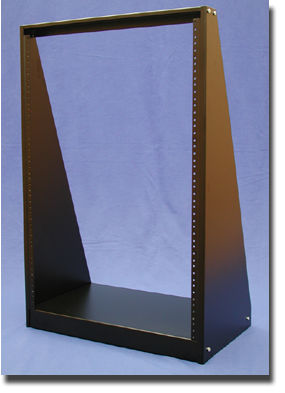

Table Top - Open Relay Rack

Features and benefits:

  • Standard 19” rack panel width mounting...

  • Rack mounting, on E.I.A. universal spacing (5/8 - 5/8 - 1/2 inch)

  • Round hole punched for 10-32 clip nuts (included)...

  • Choice of two heights, 21" (12U) or 28" (16U)...

  • Heavy duty construction, 14 gauge steel...

  • Supplied unassembled (four pieces), shipped in a flat pack container for handling ease & protection...

  • Includes all hardware and four rubber feet...

  • Recommended maximum weight (RRTT1928 tested) - 350 pounds...

  • Rugged powder paint, textured black finish...

    •

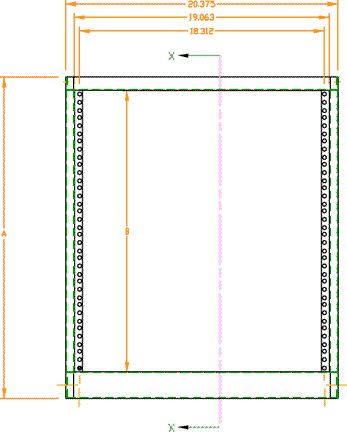

    FRONT VIEW

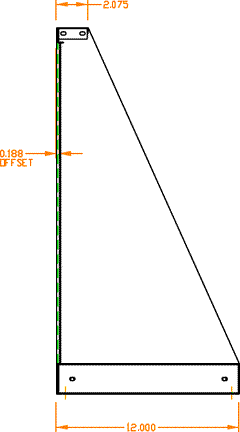

    SIDE VIEW


    Part Number 1-9

    10-99

    Panel Height (B)

    Overall Dimensions (Inches)

    Inches

    Units

    Height (A)

    Width

    Base Depth
    EID-RRTT1921BK1


    21

    12

    24

    20.375

    12

    EID-RRTT1928BK1



    28

    16

    31

    20.375

    12



    Accessories:

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Ventilated & Access Panels

    • Doors & Chassis - Panel Mount

    • Cable Organizing

    • Shelves - Panel Mount

    • Keyboard Shelves & Drawers

    • Rack mount power bars

    • Cooling Accessories

    • Fan Trays

    • Mounting hardware

    Notes:

    • All Dimensions in inches

      •
