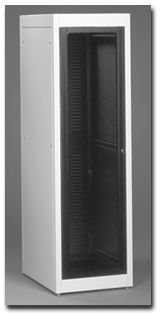

Welded
- Assembled "Contempra" LAN/DATA
Rapid Racks
(EID-C2RR 'D' Series)
 |
Features:
Pre-configured
especially for LAN/DATA use...
Heavy
duty - welded rack (1,500 lb even load rating)...
Standard
19” panel width (23” overall) or 24" width
(28" overall)...
24"
width racks can be converted to 19" rack mount
by using our part number EID-CAK1924
adapter kit (this method allows extra internal
wiring room around rails).
Choice
of two depths:
-
usable
depth of 21.63" (23.63” overall)
-
usable
depth of 29.50" (31.50" overall)
Unit
is shipped complete (NO ASSEMBLY REQUIRED) with
removable side panels (1/4 turn latches), 4
infinitely adjustable - (tapped 10-32) combination
rack mount rails (Full EIA hole centers - 5/8 - 5/8
- 1/2 inch spacing), one plexi glass door, one
louvered flush mount door, vented top and 4 leveling
feet...
Heavy
duty: 14 gauge steel frame, 16 gauge side panels.
Rails
are made of 10 gauge zinc plated steel...
Recommended
maximum weight (C2F247836 tested) - 1,500 pounds..
Finished
in a rugged, textured powder paint finish choice of
two colors.
|
19"
Rack Mount Versions:
23.63"
Deep models:
Usable Depth = 21.63"
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|
Overall
Dimensions
|
|
Inches
|
Units
|
A
|
B
|
C
|
H
|
|
EID-C2RR197023DBK1
EID-C2RR197023DCG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
70
|
40
|
77.31
|
23
|
23.63
|
70.06
|
|
EID-C2RR197823DBK1
EID-C2RR197823DCG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
78
|
45
|
86.06
|
23
|
23.63
|
78.81
|
31.50"
Deep models:
Usable Depth = 29.50"
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|
Overall
Dimensions
|
|
Inches
|
Units
|
A
|
B
|
C
|
H
|
|
EID-C2RR197031DBK1
EID-C2RR197031DCG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
70
|
40
|
77.31
|
23
|
31.5
|
70.06
|
|
EID-C2RR197831DBK1
EID-C2RR197831DCG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
78
|
45
|
86.06
|
23
|
31.5
|
78.81
|
24"
Rack Mount Versions:
23.63"
Deep models:
Usable Depth = 21.63"
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|
Overall
Dimensions
|
|
Inches
|
Units
|
A
|
B
|
C
|
H
|
|
EID-C2RR247023DBK1
EID-C2RR247023DCG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
70
|
40
|
77.31
|
28
|
23.63
|
70.06
|
|
EID-C2RR247823DBK1
EID-C2RR247823DCG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
78
|
45
|
86.06
|
28
|
23.63
|
78.81
|
31.50"
Deep models:
Usable Depth = 29.50"
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|
Overall
Dimensions
|
|
Inches
|
Units
|
A
|
B
|
C
|
H
|
|
EID-C2RR247031DBK1
EID-C2RR247031DCG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
70
|
40
|
77.31
|
28
|
31.5
|
70.06
|
|
EID-C2RR247831DBK1
EID-C2RR247831DCG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
78
|
45
|
86.06
|
28
|
31.5
|
78.81
|
Note:
For extra internal wiring room use our part number EID-CAK1924
adaptor kit to move rails in, to accept 19" rack mount
equipment and accessories
|
|
IN
STOCK! Ready
To Install RAPID
RACKS...
Shipped
assembled on it's own skid for handling ease &
protection!
|
Accessories:
Casters
|
|
-
No
drilling required...
-
Mounts
into existing holes in “EID-C2RR” type racks...
-
Swivel,
ball bearing units, hard composition type wheels...
-
Adds
only 0.75” to height of cabinet by fitting up
inside base of rack...
-
Sold
in sets of 4.
|
|
Part
Number
|
1-9 |
10-99 |
Mfg.
Specified
Capacity
(set of 4)
|
Wheel
Diameter
(Inches)
|
Height
Added To
Rack
(Inches)
|
|
EID-1425B
|
|
|
360
lbs.
|
3"
|
0.75"
|
|
EID-1425BM
|
|
|
700
lbs.
|
3"
|
0.75"
|
|
EID-1425BH
|
|
|
1050
lbs.
|
3"
|
0.75"
|
General
Accessory
-
Extra
Panel Rails
-
Tops
solid, vented & Raised - note: existing solid top
must be removed
-
Fan
Tops 4" or 10" Fans - note: existing solid top
must be removed
-
Doors
solid, louvered & plexi
-
Aluminum
rack panels
-
Steel
rack panels
-
Formed
steel rack panels
-
Ventilated
& Access Panels Louvers, slots, baffles etc.
-
Doors
& Chassis - Panel Mount
-
Cable
Organizing
-
Shelves
- Panel Mount
-
Shelves
& Slides - Dual Vertical Rail Mount
-
Keyboard
Shelves & Drawers
-
Rack
mount power bars
-
Cooling
Accessories
-
Vertical
rack mount power bars
-
Blowers
-
Fan
Trays
-
Mounting
hardware
Notes:
|
