Wall-mount Side Hinged Bracket Racks (EID-HPB & EID-APB Series).



Click Here To Enlarge

Features:

  • Economical bracket rack for 19” rack mount...

  • Full EIA hole centers (5/8 - 5/8 - 1/2 inch spacing)...

  • Hinged on one side...

  • Quantity 3 - 1 1/8" diameter knockouts on the rear...

  • 6" deep...

  • Rear has key holes for ease of wall mounting...

  • Includes quantity 8, 10-32 clip nuts and screws...

  • 16 gauge formed steel...

  • Weight load tested (EID-HPB19005) to 100 pounds...

  • Rugged textured black powder paint finish.

    •



    Part Number

    		 1-9 10-99

    Panel Height

    Inches

    Units

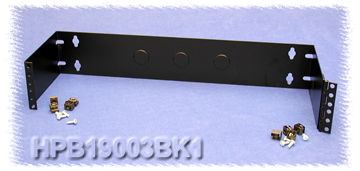

    EID-HPB19003BK1



    3.50

    2

    EID-HPB19005BK1



    5.25

    3

    EID-HPB19007BK1



    7.00

    4



    Click Here To Enlarge

    Features:

  • Adjustable depth bracket rack for 19” rack mount...

  • Full EIA hole centers (5/8 - 5/8 - 1/2 inch spacing)...

  • Hinged on one side...

  • Quantity 3 - 1 1/8" knockouts on the rear...

  • Adjustable depth from 12 to 18"...

  • Rear has key holes for ease of wall mounting...

  • Multiple slots for cable ties (4 rubber wall spacers included)...

  • Includes quantity 8, 10-32 clip nuts and screws...

  • 16 gauge formed steel...

  • Weight load tested (EID-APB19007) to 70 pounds...

  • Rugged textured black powder paint finish.

    •



    Part Number

    		 1-9 10-99

    Panel Height

    Inches

    Units

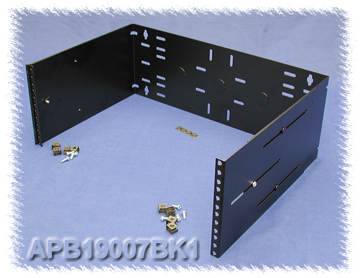

    EID-APB19007BK1



    7.00

    4

    EID-APB19014BK1



    14.00

    8



    Accessories:

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Rack mount power bars

    • Cable organizing accessories

    • Mounting hardware

    Notes:

    • All Dimensions in inches

      •
