Knockdown Racks (EID-REFK Series)

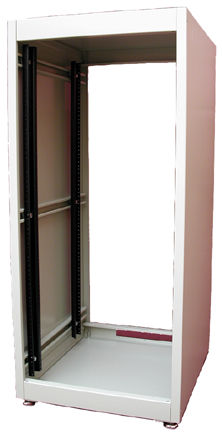

 REFK Rack



Features:

  • Standard 19 panel width (21.34 overall)...

  • Three available depths:

    1. usable depth of 16.5" without doors, 16" with doors (17.5" overall)

    2. usable depth of 23.5" without doors, 23" with doors (24.5 overall)

    3. usable depth of 30.5" without doors, 30" with doors (31.5" overall)

  • Knockdown rack unit is shipped in a flat pack container for handling ease & protection (see below)...

  • Perfect for tight access areas or 1 person installations as unit is knocked down into 5 easy to handle parts (ie...2 sides, top, bottom and 4 panel rails)...

  • Complete with; 4 infinitely adjustable - combination rack mount rails, on E.I.A. universal spacing (5/8 - 5/8 - 1/2 inch) - drilled & tapped for 10-32 screws (see close up below) and 4 leveling feet...

  • Removable gland plate (over 10" opening) with knockouts on rear bottom of rack for easy cable access (see below)...

  • Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included)...

  • Heavy duty 16 gauge steel top, bottom and sides.

  • Rails are made of 10 gauge steel (zinc plated finish for grounding capabilities)...

  • Recommended maximum weight (EID-REFK1907731 tested) - 1,000 pounds...

  • Finished in rugged powder paint.

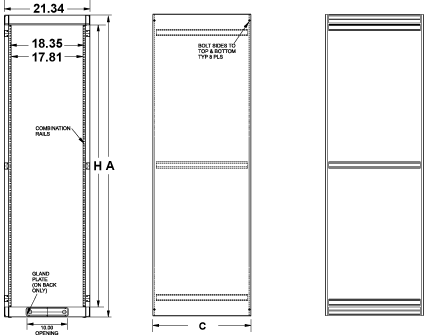

  • REFK Drawings


    17.5" Deep models (NOT STOCKED):
    Usable Depth = 16.5" without doors, 16" with doors

    Part Number

    1-99

    Color

    Paint Texture

    Panel Height

    Dimensions

    Wt. lbs.

    Inches

    Units

    A

    C

    H

    EID-REFK1903517BK1
    EID-REFK1903517CG1



    Black
    Gray/Beige

    Textured
    Textured

    35

    20

    40.19

    17.5

    35.19

    93

    EID-REFK1904217BK1
    EID-REFK1904217CG1



    Black
    Gray/Beige

    Textured
    Textured

    42

    24

    47.19

    17.5

    42.19

    100

    EID-REFK1904917BK1
    EID-REFK1904917CG1



    Black
    Gray/Beige

    Textured
    Textured

    49

    28

    54.19

    17.5

    49.19

    114

    EID-REFK1905617BK1
    EID-REFK1905617CG1



    Black
    Gray/Beige

    Textured
    Textured

    56

    32

    61.19

    17.5

    56.19

    123

    EID-REFK1906317BK1
    EID-REFK1906317CG1



    Black
    Gray/Beige

    Textured
    Textured

    63

    36

    68.19

    17.5

    63.19

    130

    EID-REFK1907017BK1
    EID-REFK1907017CG1



    Black
    Gray/Beige

    Textured
    Textured

    70

    40

    75.19

    17.5

    70.19

    144

    EID-REFK1907717BK1
    EID-REFK1907717CG1



    Black
    Gray/Beige

    Textured
    Textured

    77

    44

    82.19

    17.5

    77.19

    167


    24.5" Deep models:
    Usable Depth = 23.5" without doors, 23" with doors

    Part Number

    1-99

    Color

    Paint Texture

    Panel Height

    Dimensions

    Wt. lbs.

    Inches

    Units

    A

    C

    H

    EID-REFK1903524BK1
    EID-REFK1903524CG1
    EID-REFK1903524GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    35

    20

    40.19

    24.5

    35.19

    103

    EID-REFK1904224BK1
    EID-REFK1904224CG1
    EID-REFK1904224GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    42

    24

    47.19

    24.5

    42.19

    111

    EID-REFK1904924BK1
    EID-REFK1904924CG1
    EID-REFK1904924GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    49

    28

    54.19

    24.5

    49.19

    126

    EID-REFK1905624BK1
    EID-REFK1905624CG1
    EID-REFK1905624GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    56

    32

    61.19

    24.5

    56.19

    136

    EID-REFK1906324BK1
    EID-REFK1906324CG1
    EID-REFK1906324GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    63

    36

    68.19

    24.5

    63.19

    145

    EID-REFK1907024BK1
    EID-REFK1907024CG1
    EID-REFK1907024GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    70

    40

    75.19

    24.5

    70.19

    160

    EID-REFK1907724BK1
    EID-REFK1907724CG1
    EID-REFK1907724GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    77

    44

    82.19

    24.5

    77.19

    185


    31.5" Deep models (NOT STOCKED):
    Usable Depth = 30.5" without doors, 30" with doors

    Part Number

    1-99

    Color

    Paint Texture

    Panel Height

    Dimensions

    Wt. lbs.

    Inches

    Units

    A

    C

    H

    EID-REFK1903531BK1
    EID-REFK1903531CG1
    EID-REFK1903531GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    35

    20

    40.19

    31.5

    35.19

    115

    EID-REFK1904231BK1
    EID-REFK1904231CG1
    EID-REFK1904231GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    42

    24

    47.19

    31.5

    42.19

    125

    EID-REFK1904931BK1
    EID-REFK1904931CG1
    EID-REFK1904931GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    49

    28

    54.19

    31.5

    49.19

    140

    EID-REFK1905631BK1
    EID-REFK1905631CG1
    EID-REFK1905631GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    56

    32

    61.19

    31.5

    56.19

    150

    EID-REFK1906331BK1
    EID-REFK1906331CG1
    EID-REFK1906331GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    63

    36

    68.19

    31.5

    63.19

    160

    EID-REFK1907031BK1
    EID-REFK1907031CG1
    EID-REFK1907031GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    70

    40

    75.19

    31.5

    70.19

    176

    EID-REFK1907731BK1
    EID-REFK1907731CG1
    EID-REFK1907731GY2



    Black
    Gray/Beige
    ASA61/Gray

    Textured
    Textured
    Smooth

    77

    44

    82.19

    31.5

    77.19

    205


    Features (with photos):



    Infinitely Adjustable (front to back)
    10-32 Tapped, Zinc Plated,
    10-gauge Steel, Panel Rails

    (Rack ships with 2 pair included,
    shown here mounted to Amhal Strut)



    Click Here To Enlarge

    Gland Plate Opening For Easy Wiring Access







    (Bottom, rear of rack)



    Click Here To Enlarge

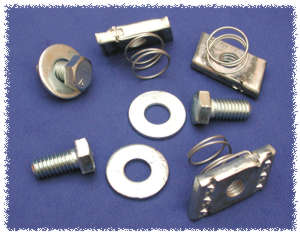

    Additional Hardware Used to Mount Panel Rail To Amhal Strut



    Closeup - 1463S Hardware

    Part Number EID-1463S (package of 3)

    • 3/8 x 16 spring loaded nuts (for "C" channels)

    • 0.75" hex head bolts & washers

    • Included with above rails


    Interlocking Sides

    To both the top & bottom (shown)

    Click Here To Enlarge

    Over Sized (1.67" Diameter) Nylon Based - Leveling Feet Included







    Click Here To Enlarge

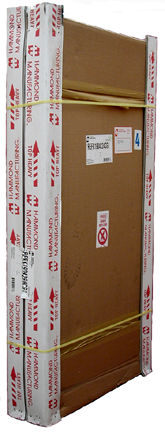

    Packaged REFK Rack

    Shipped in a flat pack container for handling ease & protection...

    Perfect for tight access areas or 1 person installations...

    Rack is knocked down into 5 easy to handle parts (ie...two sides, top, bottom and a pack of 4 panel rails)...

    Accessories:



    Click here to enlarge

    Casters - Part Number EID-1425P

    • SOLD IN A SET OF 4

    • Light Duty

    • NOTE: For EID-EID-REFK - knockdown racks ONLY

    • 400# Mfg's specified weight capacity (Set of 4)

    • Twin nylon swivel wheels with zinc axles and hoods

    • 5/16 - 18 threaded stem mounts into existing holes in base of EID-REFK (knockdown) rack (in place of leveling feet)

    • Wheels are black & 2.37" wheel diameter

    • Final mounting height of 2.75"

    Click here to enlarge

    Casters - Part Number EID-1425PHD

    • SOLD IN A SET OF 4

    • Medium Duty

    • NOTE: For EID-REFK - knockdown racks ONLY

    • 600# Mfg's specified weight capacity (Set of 4)

    • Features ball bearing swivel and hard composition wheels

    • Small foot print 2.125" x 15/16" hole mounting pattern

    • Wheels are grey & 2" wheel diameter

    • Includes mounting hardware

    • Doors

    • Extra Panel Rails - 2 Pair INCLUDED with rack

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Ventilated & Access Panels

    • Doors & Chassis - Panel Mount

    • Cable Organizing

    • Shelves - Panel Mount

    • Shelves & Slides - Dual Vertical Rail Mount

    • Keyboard Shelves & Drawers

    • Rack mount power bars

    • Vertical rack mount power bars

    • Cooling Accessories

    • Blowers

    • Fan Trays

    • Mounting hardware

    Notes:

    • All Dimensions in inches
